Piezoelectrical shaker for vibration excitation with frequencies up to 100 kHz from piezosystem jena

08-01-2014 07:47 PM CET | Science & Education

Press release from: piezosystem jena GmbH

Piezoelectrical shaker for vibration excitation with

The use of piezo shakers for vibration excitation has many advantages over conventional methods. Piezo shakers have a higher force potential as a result of their stiffness and their ability to operate at exceedingly higher frequencies. Due to their high power density they can be produced in compact sizes. These small elements can be used for modal analysis of mechanical structures. Massive piezo shakers with a seismic mass can modulate forces up to double-digit Kilonewtons.

Piezo shakers are used in the following applications:
• modal analysis of mechanical structures
• material characterization
research in fatigue strength
• defects analysis (in conjunction with Thermography and Holography)

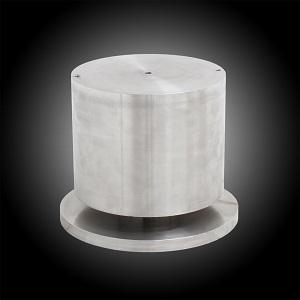

Geo shaker PiSha 1000/35/150 with seismic mass of 80 kg:
• vibration amplitude: 80 µm
• frequency range: up to 250 Hz
• force modulation: up to ±15 kN

Piezo shakers operate with frequencies up to 100 kHz. Oscillation amplitudes reach values from less than 1µm up to several hundred microns. Generated force modulation can reach up to 50 Kilonewton under blocking conditions. Generally, accelerations can reach several 1000g, and in extreme cases up to 10’000g.

Are you interested in our piezoelectrical shakers? Please contact us at or phone: 03641 66880.
Additional information about our new product line and their applications can be found at

piezosystem jena is a world leading company in the development, design and engineering of piezo electric actuators. These positioning systems are ideal for micro- and nanopositioning and nano-automation. Systems with outstanding precision in the sub-nanometer range, that can generate forces of up to several thousands of Newtons and achieve precise positioning in microseconds. piezosystem jena offers solutions from one to five axis positioners, grippers, mirror tilting systems, optical fiber switches, shutters, rotary stages, objective positioning systems, piezo stack type actuators, high load piezo actuators and piezo composites for material testing and shock generators.

piezosystem jena also supplies electronics for low and high voltage piezo’s. These complete systems can be easily integrated into many existing applications eg. optics, life science and highly precise/dynamic scanning applications so as for vibrational excitations and shakers.
