What are the advantages of fanless industrial PCs?

Actually, the idea behind fanless industrial PCs is pretty simple - fewer moving parts, fewer problems.

Image: https://ecdn6.globalso.com/upload/p/4082/image_other/2026-03/embedded-industrial-pc.png

More stable - In normal PCs, the fan is usually one of the first things to fail. After running for a while, it can slow down, get stuck, or just stop working. Once that happens, heat builds up and the system becomes unstable.

With a fanless design, you basically remove that risk. That's why it's often used in projects that need to run 24/7 without interruption.

Better for dusty environments - Most industrial sites have dust, oil, or other particles in the air. If there's a fan, it keeps pulling all of that inside the machine. Over time, it builds up and causes problems.

Fanless PCs are usually sealed, so dust doesn't get in easily. After a few months or a year, the difference is quite obvious.

* No noise - No fan means no noise. In factories this might not matter much, but in places like control rooms, hospitals, or offices, it's definitely a plus.
* Handles tough environments better - Fanless systems rely on the metal case to dissipate heat instead of airflow. As long as the design is solid, they usually perform more consistently in high/low temperatures or places with big temperature changes.
* Less maintenance - No fan also means one less thing to clean or replace. For many projects, especially those installed on-site and not easy to access, this saves a lot of time and effort.

Parameter

KTB-7700

KTB-7700F-P

KTB-7700F-2P(PE)

Processor

Intel 6th/7th/8th/9th Gen LGA1151 Core i3/i5/i7

Same as KTB-7700

Same as KTB-7700

Chipset

Intel Q170/H110

Same as KTB-7700

Same as KTB-7700

Memory

2*DDR4 SO-DIMM, up to 64GB

Same as KTB-7700

Same as KTB-7700

Storage

1 mSATA + 2 2.5" drive bays (RAID 0/1)

Same as KTB-7700

Same as KTB-7700

Display

VGA+HDMI (synchronous/asynchronous dual-display)

Same as KTB-7700

Same as KTB-7700

LAN

Optional 3-5* Intel 10/100/1000Mb LAN

5* Intel 10/100/1000Mb LAN

Same as KTB-7700F-P

COM

Optional 2-12* COM (RS232/422/485)

Optional 4-12* COM (RS232/422/485)

Same as KTB-7700F-P

Expansion Slot

/

1 PCIe X16 + 1 PCI

2 PCIe X16 + 2 PCI + 1 PCIe + 1 PCI

Operating Temp

-20 degrees C~+60 degrees C (Industrial SSD)

Same as KTB-7700

Same as KTB-7700

Power Supply

DC 9-36V wide voltage, reverse polarity protection

Same as KTB-7700

Same as KTB-7700

Weight

4.5KG

4.6KG

4.8KG

Dimensions (W times D times H)

214 times 230 times 84mm

214 times 230 times 121mm

214 times 230 times 143mm

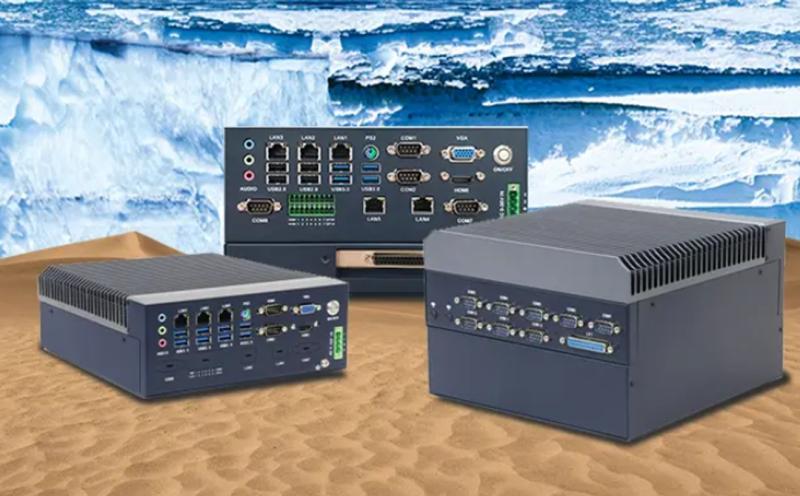

Why Choose KTB-7700 Series?

The KTB-7700 is a pretty typical fanless industrial PC. Nothing fancy, but practical and reliable.

Basic specs are like:

* Supports Intel 6th to 9th Gen i3/i5/i7
* Up to 64GB RAM
* mSATA + 2.5" storage (RAID supported)
* LAN, COM, USB can be configured as needed
* Some models support PCIe/PCI expansion
* Works with Windows and Linux
* Wide voltage input (9-36V)
* Operating temperature: -20 degrees C to 60 degrees C

To be honest, it's the kind of machine you use when you just want something stable that works, without worrying too much later.
