Ceramic Polymer GmbH: Protective coatings ensure the value of advanced mixing technology for the whole range of biogas

Coating of high-performance paddle mixers for biogas fermenters

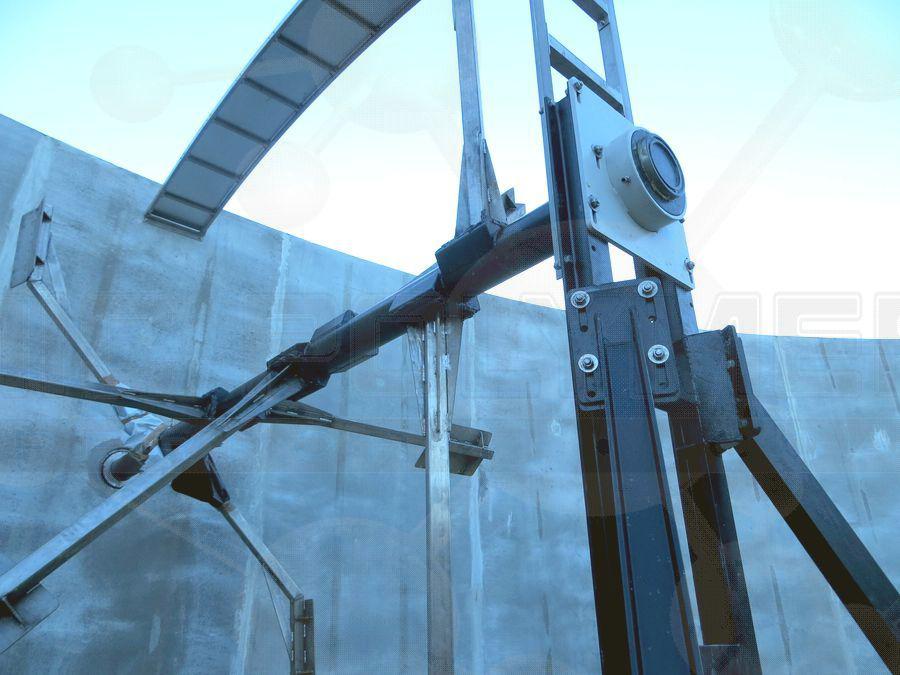

For a huge biogas plant in England, Ceramic Polymer’s highly resistant coatings were recently applied on 4 specific paddle mixers.

•Height of the stirring units: approx. 5 meters
•Material of the paddles: stainless steel without coating
•Coating product for the shafts and pillar constructions: Proguard CN 200
•Bolted areas: Additional sealing with Ultra-Perform Z-2 F
•Manufacturer of the paddle mixers: Steverding Rührwerkstechnik GmbH
•Application of the coating: SLP Beschichtungs GmbH

The shafts and pillar constructions were coated in one layer with the chemically resistant premium product Proguard CN 200 by airless spraying methods.

The shaft and the paddle construction are placed in the variable range of biogas and biomass. The steel components are steadily exposed to the influences of the biogas, which provoke the highly corrosive effect. A coating system with excellent physical properties and resistances is essential for this kind of application.

For moisture-proof sealing of the corrodible screwings a special coating paste from Ceramic Polymer’s sister company Ultra Perform Coatings GmbH was applied; Ultra-Perform Z-2 F, the high-quality repair grout with specific fiber-reinforcement.

The Ceramic Polymer GmbH produces high-quality, solvent-free protective coatings for different kinds of industries. Due to the integration of microscopic ceramic and other special particles, coating systems with outstanding physical properties such as excellent chemical resistances, high temperature stabilities and extreme abrasion resistances are generated.
The Ceramic Polymer coatings are applied directly on the blasted substrate (e.g. steel, stainless steel, concrete) without the previous use of a primer. In this way extreme adhesion is achieved.
The scopes of the Ceramic Polymer coatings are for instance all kinds of storage tanks, pipelines or process vessels for the oil & gas industry as well as different maritime constructions, waste water or drinking water applications.
