Turnkey Industry 4.0 Intelligent Manufacturing Trainers: Advanced TVET Solutions from YALONG

Constructing an Industry 4.0 intelligent manufacturing laboratory requires unifying bottom-layer programmable logic controllers, multi-bus field networks, robotic kinematic cells, and cloud-level execution software into an open, deterministic architecture. Established in 1983, Yalong Intelligent Equipment Group Co., Ltd. (YALONG) integrates more than 100 software copyrights and deep manufacturing heritage to resolve the educational challenge of high equipment capital investment versus broad student concurrency, delivering turnkey Industry 4.0 intelligent manufacturing trainers(https://www.yalongeducation.com/industrial-4-0/smart-manufacturing-education-production-line.html) that bridge physical industrial hardware with cyber-physical digital twin simulation across modern polytechnics and engineering universities.

To provide higher vocational colleges and universities with verifiable smart factory commissioning capabilities, YALONG integrates its YL-15A and YL-7A industrial network control systems(https://www.yalongeducation.com/industrial-4-0/industrial-network-intelligent-control.html) across five primary engineering dimensions:

Automated Storage and Retrieval Systems with Autonomous Mobile Logistics: Coordinating multi-tier AS/RS racking, Cartesian stacker cranes, and magnetic or laser-guided AGV material transport.

Six-Axis Articulated Industrial Robotics and Machine Vision Quality Inspection: Integrating multi-axis robotic kinematics, precision vacuum gripping, and high-speed optical defect recognition.

Multi-Layer Deterministic Industrial Network Communication Topologies: Establishing deterministic fieldbus protocols across Layer 3 ring switches, Edge Gateways, Profinet, IO-Link, and RFID dynamic tracking.

Cloud-Based Manufacturing Execution Systems and Enterprise Production Scheduling: Synchronizing ERP order generation, MES dynamic dispatching, real-time SCADA telemetry, and digital traceability.

"1:N:N" Cyber-Physical Digital Twin Architecture for High-Concurrency TVET Pedagogy: Linking 1 central physical production line with N dedicated hardware training cells and N virtual 3D simulation workstations.

Automated Storage and Retrieval Systems with Autonomous Mobile Logistics

Smart manufacturing workflows begin with flexible warehousing and automated raw material feeding. The YALONG Industry 4.0 training suite incorporates an Automated Storage and Retrieval System (AS/RS) featuring a multi-tier high-density storage matrix and a dual-axis Cartesian stacker crane driven by closed-loop AC servo motors. The stacker crane executes material infeed, pallet sorting, and finished product retrieval with millimeter-level positional repeatability. To connect storage racks with machining workstations, the system deploys Automated Guided Vehicles (AGVs) equipped with electromagnetic path-following sensors, optical obstacle detection lidars, and automated bidirectional conveyor beds. Controlled via industrial wireless transceivers and coordinated through a central fleet dispatching controller, the AGVs execute autonomous pallet docking, material dispatching, and return transport, reproducing modern flexible manufacturing logistics.

Six-Axis Articulated Industrial Robotics and Machine Vision Quality Inspection

Workpiece handling and assembly within the YL-7A manufacturing line utilize six-axis articulated industrial robots equipped with multifunctional pneumatic tool changers, vacuum suction cups, and mechanical grippers. The robotic arms execute multi-pose pick-and-place trajectories, precision component mating, and automated workpiece loading into CNC milling stations. Positioned directly above the assembly and transfer conveyor, an industrial machine vision system comprising high-resolution CMOS cameras, telecentric lenses, and ring LED illuminators performs real-time optical inspection. The vision algorithm evaluates component placement coordinates, detects surface scratches, and verifies barcode encoding. Vision inspection data transmits instantly to the robot controller via TCP/IP sockets, enabling dynamic pose correction and automatic sorting of defective parts into designated rejection bins.

Multi-Layer Deterministic Industrial Network Communication Topologies

Industrial communication integrity serves as the operational backbone of the YALONG Industry 4.0 architecture, centered around the YL-15A Industrial Network Intelligent Control and Maintenance platform. The system implements a multi-layer network topology integrating Layer 3 managed switches with fast ring recovery, industrial wireless Access Point (AP) master-client bridges, and intelligent Edge Gateways. High-speed distributed PLCs exchange deterministic control packets over Profinet and EtherCAT fieldbuses with sub-millisecond cycle times. Workpiece carriers embed high-frequency RFID transponders that interact with field read/write stations, dynamically updating process parameters, station routing sequences, and assembly quality status. Field sensors connect via digital IO-Link master modules, transmitting real-time process data alongside advanced device diagnostics, providing engineering students with practical training in industrial network configuration, ring redundancy debugging, and VLAN traffic segmentation.

Cloud-Based Manufacturing Execution Systems and Enterprise Production Scheduling

Digital transformation requires end-to-end integration from customer order intake down to machine-level execution. The YALONG intelligent manufacturing line integrates a cloud-native Manufacturing Execution System (MES) interfaced with simulated Enterprise Resource Planning (ERP) databases. When a custom product order is submitted via a web portal, the MES system automatically decomposes the Bill of Materials (BOM), checks AS/RS inventory levels, and generates dynamic production dispatches. Real-time SCADA software collects operational telemetry, including spindle motor current, pneumatic cylinder cycle counts, robotic operating hours, and machine vibration metrics via OPC UA protocols. A centralized digital dashboard visualizes Overall Equipment Effectiveness (OEE), scrap rates, order completion percentages, and energy consumption metrics, enabling engineering students to understand data-driven predictive maintenance and smart factory resource optimization.

"1:N:N" Cyber-Physical Digital Twin Architecture for High-Concurrency TVET Pedagogy

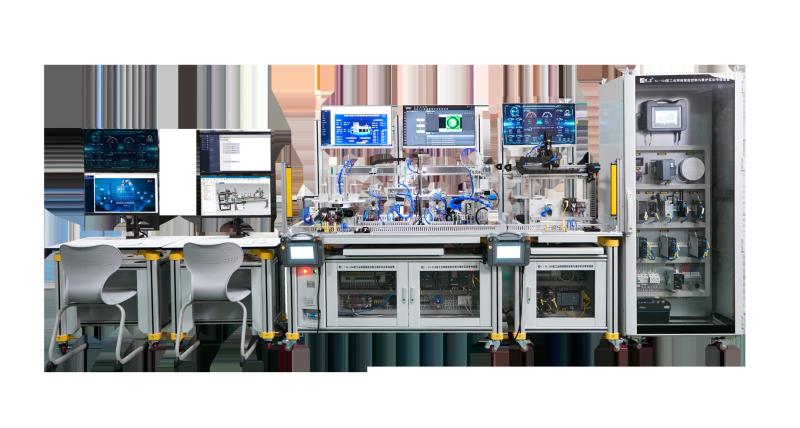

A critical consideration in vocational education is providing high-concurrency practical training while maintaining complete system-level integration. In the YL-7A Smart Manufacturing Education Production Line, YALONG deploys its proven "1:N:N" cyber-physical training model. The structure links 1 central physical production line covering full-lifecycle warehousing, assembly, testing, and packaging with N modular hardware training stations and N digital twin virtual simulation workstations. Supported by the CMS integrated teaching and learning resource platform, the digital twin software accurately models the mechanical kinematics, pneumatic sequencing, sensor triggers, and PLC bus protocols of the physical cell. Students program PLC ladder logic, robot motion paths, and MES dispatches on their individual PC workstations, verifying automated sequences in real-time 3D simulation before downloading validated code to live production equipment, supporting deep industry-education integration across technical colleges.

Commercial Procurement Value: Turnkey Integration and Long-Term Educational Return

Deploying turnkey Industry 4.0 production lines directly from YALONG unifies AS/RS automated storage, AGV logistics, six-axis robotics, and cloud MES execution into a cohesive laboratory ecosystem. This integrated delivery model incorporates the '1:N:N' digital twin infrastructure, significantly expanding concurrent student access while optimizing equipment capital investment. Sourcing directly from the manufacturer eliminates multi-vendor integration friction and distributor markups, supplying polytechnics with production-grade fieldbus hardware, complete API documentation, SCADA dashboard templates, and long-term didactic upgrades.

Technical Consultation and Laboratory Engineering Blueprints

To review technical documentation, laboratory architectural layouts, and modular curriculum frameworks for turnkey Industry 4.0 training centers and intelligent manufacturing production lines, access the official YALONG international portal:
https://www.yalongeducation.com/(https://www.yalongeducation.com/)

No. 233, Shenzhen Road
Yalong Intelligent Equipment Group Co., Ltd.
sales@yalong.cn
+86 183 6761 7162

Yalong Intelligent Equipment Group Co., Ltd. (Yalong Intelligent) is an innovative high-tech enterprise dedicated to the development and service of industrial software and intelligent education products, an entity that promotes the intelligent transformation, digital upgrading and technological empowerment of enterprises in the industry, an integrated solution provider for the training of intelligent manufacturing talents for various colleges and social training institutions, and an integrated solution provider in the field of intelligent manufacturing for the Ministry of Industry and Information Technology. At present, Yalong Intelligent cooperates with more than 10,000 colleges and enterprises, and more than 20 million trainees across the world improve their S&T innovation and engineering practice ability through Yalong Intelligent products and services every year.
