Higher mechanical engineering education and modern manufacturing vocational training frequently face the operational challenge where classroom instruction diverges from industrial machine tool electrical commissioning. To align pedagogical training with factory floor realities, academic institutions require integrated training equipment capable of unifying multi-axis CNC programming, live precision metal turning, and deep machine tool electrical fault diagnosis within a cohesive platform. Operating from modern manufacturing bases covering 180,000 square meters, Yalong Intelligent Equipment Group Co., Ltd. (YALONG, est. 1983) applies heavy machine casting and laser interferometer testing to build intelligent precision CNC lathe trainers(https://www.yalongeducation.com/cnc-machining/intelligent-precision-cnc-lathe.html) and machining centers (YL-556E, YL-557E, YL-569C), providing polytechnics and engineering universities worldwide with turnkey solutions integrating mechanical machining operations and electrical maintenance commissioning.

Utilizing automated vertical machining centers and high-precision inspection protocols, YALONG builds standardized CNC lathe training equipment(https://www.yalongeducation.com/cnc-machining/980tdi-cnc-lathe-training-equipment.html) and smart milling centers that span every critical dimension of modern machine tool education:

YL-556E 30-Degree Slant Bed Precision Lathe: Mechanical Rigidity and Standardized Tooling: Engineered with an integral 30-degree slant bed casting, standard 16x16 mm square tool shank turret, MT5# precision spindle, and 0.003 mm repositioning accuracy for live industrial-grade turning exercises.

YL-557E Intelligent Precision Machining Center: BT30 Spindle and High-Speed FSSB Bus Architecture: Equipped with a 3000 r/min BT30 spindle, an 8-station dish tool magazine, and high-speed FSSB servo bus connectivity for full-scale 3-axis CNC milling and contour machining training.

YL-569C Integrated Electrical Control and Reusable Mesh-Plate Installation Architecture: Configured with a dedicated industrial CNC cabinet, 980TDi controller, PMC logic control, reusable open mesh-plate wiring, and comprehensive 30 mA electrical leakage and phase-loss safety protections.

Cast-Iron Cross Slide Mechanical Disassembly and Intelligent Fault Assessment: Incorporating a resin-sand cast-iron cross slide with H-class linear guides and a 300 mm recirculating ball drive, paired with computerized intelligent fault injection and live metal cutting validation.

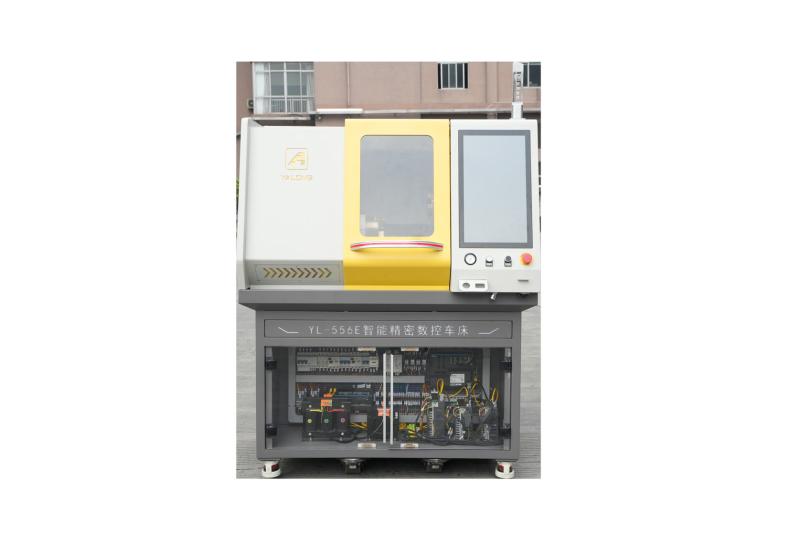

YL-556E 30-Degree Slant Bed Precision Lathe: Mechanical Rigidity and Standardized Tooling

The YL-556E intelligent precision CNC lathe addresses the fundamental pedagogical requirement of industrial metal turning by providing a production-grade machine tool structure within a compact educational footprint. Built on a 30-degree overall slant bed structure cast from resin sand, the mechanical bed delivers exceptional structural damping and high dynamic rigidity during continuous heavy-duty turning. The slant bed architecture facilitates natural chip evacuation into a dedicated rear chip collector, maintaining clear toolpath visibility and clean guideway surfaces throughout high-speed cutting operations. The motion platform is supported by precision linear rolling guideways and preloaded recirculating ball drives across both X and Z axes, achieving standard linear positioning accuracy of 0.005 mm and repeatability of 0.003 mm.

To ensure direct compatibility with industrial manufacturing standards, the YL-556E features a standard 16x16 mm square tool shank interface mounted on an 8-station electric turret. This tooling layout allows students to install genuine production turning tools, boring bars, and threading inserts without relying on scaled-down educational fixtures. The machine spindle utilizes an MT5# taper with a 26 mm through-hole, powered by a variable-frequency AC motor capable of stepless spindle speed regulation from 100 r/min to 3000 r/min. In addition, an MT2# pneumatic tailstock provides 50 mm of quill stroke with adjustable clamping pressure, enabling rigid support for slender shaft machining, high-precision external profiling, internal boring, and multi-start thread turning.

YL-557E Intelligent Precision Machining Center: BT30 Spindle and High-Speed FSSB Bus Architecture

The YL-557E intelligent precision machining center extends CNC education into high-speed 3-axis milling, drilling, tapping, and complex surface machining. Constructed with high-grade HT250 gray cast iron that undergoes secondary stress-relief thermal annealing, the machine base, column, and saddle maintain dimensional stability under dynamic cutting forces. The vertical spindle adopts an industrial BT30 tooling taper supported by high-precision angular contact bearings, delivering continuous speeds up to 3000 r/min. A disc-type 8-station automatic tool changer (ATC) executes rapid tool swaps with mechanical indexing repeatability within 0.008 mm, enabling multi-tool automated machining cycles without manual intervention.

The operational workspace provides generous axis travels of 300 mm along the X axis, 170 mm along the Y axis, and 300 mm along the Z axis, accommodating diverse metal workpiece fixtures, pneumatic vises, and multi-axis rotary tables. The motion control architecture utilizes high-speed Fanuc Serial Servo Bus (FSSB) communication, connecting the CNC interpolation kernel directly to absolute optical encoder servo drives with microsecond command latency. For educational safety and workshop compliance, the enclosure incorporates an interlocked automatic sliding door that halts axis motion if opened during execution, coupled with centralized automatic lubrication and a high-flow flood coolant circulation system.

YL-569C Integrated Electrical Control and Reusable Mesh-Plate Installation Architecture

The YL-569C CNC lathe electrical installation and commissioning trainer bridges the critical gap between mechanical machining and electrical maintenance engineering. Housed in a standardized industrial sheet-metal vertical cabinet with dual-sided access, the trainer features an authentic 980TDi CNC controller paired with full-function digital AC servo drives. The front operating face replicates a production machine tool console, complete with hardware handwheel MPG, coordinate displays, override knobs, and emergency stop circuitry. This configuration allows technicians to master PMC ladder logic programming, I/O signal mapping, spindle encoder pulse calibration, and servo drive gain tuning.

To deliver intensive, non-destructive wiring practice, the cabinet interior incorporates an open, reusable mesh-plate mounting grid. Students install standard DIN-rail circuit breakers, AC contactors, intermediate relays, switching power supplies, and terminal strips directly onto the perforated grid using standard M4 fastening hardware. Safety systems include high-sensitivity 30 mA residual current leakage circuit breakers, incoming 3-phase phase-loss monitoring relays, and 24V DC isolated control logic. This protective electrical design isolates high-voltage line power while permitting realistic line fault diagnostics, contactor logic wiring, and system commissioning exercises.

Cast-Iron Cross Slide Mechanical Disassembly and Intelligent Fault Assessment

Beyond electrical wiring, comprehensive machine tool mastery demands hands-on understanding of kinematic transmission alignment. The YL-569C integrates an independent, industrial-grade two-axis cross slide mechanical workbench constructed from heavy-duty HT200 cast iron. Driven by a 300 mm ground recirculating ball drive and guided by heavy-load H-class linear motion guide pairs, the cross slide allows trainees to perform physical disassembly, lead drive preload adjustment, dial indicator perpendicularity alignment, and backlash compensation. After completing electrical integration and mechanical alignment, students connect the cross slide directly to live turning spindles for actual metal workpiece test cuts, validating mechanical accuracy through physical surface finish and micrometer tolerance inspection.

Training assessment is elevated through YALONG's integrated computerized fault injection and scoring system. Instructors can remotely introduce dozens of realistic electrical and communication faults, including open circuits, high-resistance contact faults, sensor signal dropouts, emergency loop interruptions, and drive parameter offsets, without damaging physical components. Students identify faults using digital multimeters, oscilloscopes, and PMC signal monitors, entering diagnostic solutions into the network assessment terminal. The system automatically records troubleshooting time, diagnostic precision, and operational sequences, establishing an objective, data-driven competency evaluation matrix.

Commercial and Educational Value of Direct Factory Sourcing

Procuring intelligent CNC machining trainers directly from an established original equipment manufacturer provides substantial technical and operational returns for technical universities, polytechnics, and corporate training academies. Direct sourcing from YALONG bypasses intermediary markups while providing fully certified industrial machinery that complies with international safety and electromagnetic standards. Factory-engineered platforms ensure complete hardware-software cohesion, standardizing controller firmware, servo bus configurations, electrical schematics, and mechanical spare parts across the entire training facility.

Direct factory partnership grants educational institutions access to YALONG's complete curriculum resources, including detailed technical manuals, interactive digital twin simulations, PMC ladder diagrams, sample workpiece machining programs, and certified instructor training workshops. Long-term factory engineering support, prompt spare parts supply, and modular upgrade pathways protect institutional capital investments, enabling vocational training centers to continuously align their curricula with the evolving demands of modern precision manufacturing.
