L-type, J-type, T-type, and I-type anchor bolts: How to select the correct type based on the working conditions?

Choosing the right anchor bolt for your construction or industrial project can feel like navigating a maze, especially when you are looking at four different shapes and wondering which one will actually hold your structure securely. If you are new to specifying foundation bolts, you probably have three big concerns running through your mind. First, will the bolt I choose actually resist the pull-out forces from wind or vibration, or will it fail and compromise the entire structure? Second, am I over-specifying and wasting budget on a heavy-duty T-type when a simple L-type anchor bolt would work just fine? Third, how do I know which shape is compatible with my concrete foundation design and installation method? These are legitimate questions, and the answers depend on understanding exactly what each type does well. In this guide, we will walk you through everything you need to know about L-type anchor bolts, J-type anchor bolts, T-type anchor bolts, and I-type anchor bolts. We will compare their structural characteristics, load resistance, installation requirements, and real-world applications. We will also look at corrosion resistance, material grades, and cost considerations. By the time you finish reading, you will know exactly which anchor bolt belongs in your next project.

Understanding the four anchor bolt types and their structures

Anchor bolts are critical components that connect structural elements to concrete foundations. The end shape embedded in the concrete determines how the bolt resists pull-out forces and transfers loads to the foundation. Let us break down each type.

L-type anchor bolts - Simple and effective for lighter loads

Image: https://ecdn6.globalso.com/upload/m/image_other/2026-06/631/2e35818f-90af-4e3b-a330-4f2d2188acff.png [https://www.aozhanfasteners.com/carbon-steel-anchor-bolts-product/]

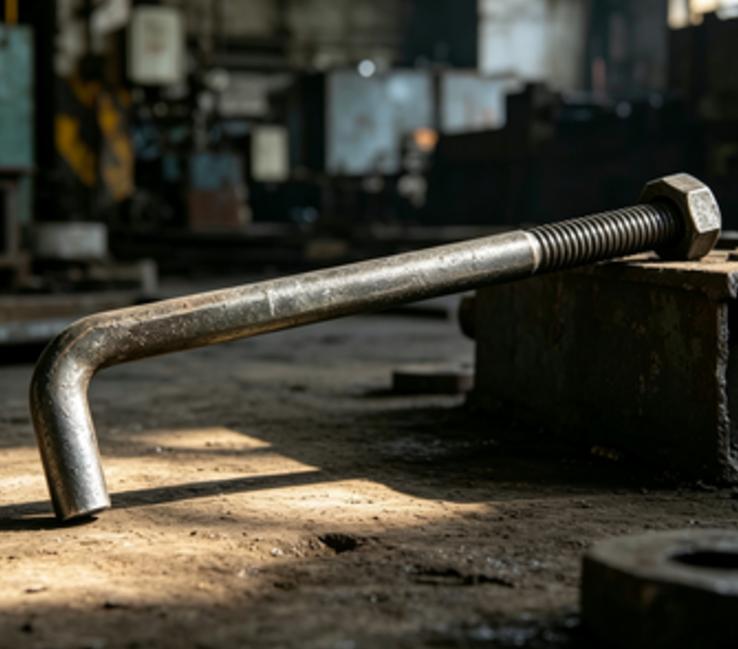

The L-type anchor bolt, also known as a 90-degree hook or 7-shaped bolt, has a single bend forming an "L" shape at the embedded end. This is the most common anchor bolt shape in construction because of its simplicity and effectiveness at resisting pull-out forces. The L-shape provides a mechanical interlock with the concrete, preventing the bolt from being pulled out under tensile loads.

Best applications: L-type anchor bolts [https://www.aozhanfasteners.com/carbon-steel-anchor-bolts-product/] are commonly used for light poles, utility poles, signage, handrails, and small structural steel connections. They are also a popular choice for foundation bolts in large-span steel structure factories, where cost control and fast delivery are priorities. The typical thread diameter ranges from M12 to M72.

Limitations: Because the L-shape provides only moderate pull-out resistance compared to other shapes, L-type anchor bolts are generally not recommended for heavy loads or dynamic applications with significant vibration. They are best suited for lighter-duty installations where space constraints exist.

J-type anchor bolts - Superior holding strength for heavy-duty work

The J-type anchor bolt, sometimes called a umbrella handle bolt, features a 180-degree hook at the embedded end that resembles the letter "J." This design provides a more extensive mechanical interlock with concrete, offering superior pull-out resistance compared to the L-type. The J-shape also provides excellent load distribution, making it ideal for applications that experience both vertical and lateral forces.

Image: https://ecdn6.globalso.com/upload/m/image_other/2026-06/631/image-1.png [https://www.aozhanfasteners.com/carbon-steel-anchor-bolts-product/]

Best applications: J-type anchor bolts are widely used for structural steel columns, bridges, transmission towers, heavy machinery foundations, and large-scale infrastructure projects. They are the standard recommendation for applications where vibration, heavy traffic, or dynamic loads are a concern. In power transmission tower construction, J-type anchor bolts are specified under the DL/T 1236-2021 standard for embedded connections.

Limitations: Larger-diameter J-type anchor bolts can be more difficult and expensive to manufacture because the heating and bending process is harder to control. For this reason, they are typically recommended for sizes up to M36.

T-type anchor bolts - Precision and high-load capacity

The T-type anchor bolt features a "T" shaped head at the embedded end, which acts as an anchoring plate embedded in the concrete. This design provides excellent resistance to pull-out forces and also offers strong shear resistance because the T-head distributes load over a larger area.

Image: https://ecdn6.globalso.com/upload/m/image_other/2026-06/631/fe4de5c0-0c8a-469c-bea9-a26dd2d9048e.png

Best applications: T-type anchor bolts are ideal for applications requiring precise positioning and high load capacity. They are commonly used for large equipment foundations - think heavy machine tools, turbines, compressors, and other industrial equipment where precision alignment is critical. The T-head allows for easy vertical positioning and can be inserted into pre-formed slots in the concrete foundation. They are also used in transmission tower foundations where specific alignment is required.

Limitations: T-type anchor bolts generally cost more than L-type or J-type bolts due to the more complex manufacturing process. They also require a higher level of installation precision.

I-type anchor bolts - Versatile and straightforward

The I-type anchor bolt is the simplest form - essentially a straight threaded rod with no bent hook or specialized head at the embedded end. It relies on the bond between the rod and the concrete (or on a plate and nut embedded at the base) to develop holding strength. This type is also sometimes referred to as a straight or headed anchor bolt when combined with a plate.

Image: https://ecdn6.globalso.com/upload/m/image_other/2026-06/631/59c97b5a62375f4b6ff5d5f09d9eac7a.png

Best applications: I-type anchor bolts are highly versatile and suitable for a wide range of general applications, including industrial steel column foundations, general equipment mounting, and as anchor rods for various structural connections. They are often used with embedded plates or nuts at the bottom to increase pull-out resistance. Because of their straightforward design, they are easy to source from manufacturers of I-type anchor bolts at competitive prices.

Limitations: Without a hook or head, straight I-type bolts provide less mechanical interlock than bent-bar types. They depend more heavily on bond strength and embedment depth, so they require careful design to ensure adequate pull-out resistance, especially in tension-critical applications.

Comparison table: L-type, J-type, T-type, and I-type anchor bolts

Feature

L-Type Anchor Bolt

J-Type Anchor Bolt

T-Type Anchor Bolt

I-Type Anchor Bolt

Hook/Head Shape

90 degrees bend at embedded end

180 degrees hook at embedded end

T-shaped head (plate)

Straight rod (no hook)

Pull-Out Resistance

Moderate

High (excellent interlock)

High (plate distributes load)

Low to Moderate (relies on bond)

Shear Resistance

Moderate

High

Excellent

Moderate

Typical Applications

Light poles, signage, handrails, small steel structures

Columns, bridges, transmission towers, heavy machinery

Heavy equipment foundations, turbines, precision installations

Steel columns, general equipment, versatile use

Manufacturing Complexity

Low

Medium

High

Low

Common Material Grades

ASTM A307, F1554 Gr.36/55

ASTM A307, F1554 Gr.36/55/105

ASTM F1554 Gr.36/55/105, A193 B7

ASTM A307, A36, F1554 Gr.36

Typical Diameter Range

M12 - M72

less than or equal to M36 recommended

Various (application-specific)

Various

Applicable Standard

JB/ZQ 4364-2006

DL/T 1236-2021 (power sector)

DL/T 1236-2021, ACI 318

ACI 318, ASTM F1554

How to select the correct anchor bolt type based on working conditions

Now that you understand the differences, let us translate this into practical selection criteria. Here is a step-by-step framework for choosing the right anchor bolt.

Step 1: Define the load requirements. What kind of forces will your anchor bolt experience? For primarily tensile (pull-out) loads in lightweight applications, an L-type anchor bolt may be sufficient. For heavy tensile loads combined with shear and vibration, a J-type or T-type anchor bolt is a better choice.

Step 2: Evaluate the installation environment. Are you working with cast-in-place or post-installed anchors? L-type, J-type, and T-type bolts are typically cast-in-place - embedded before the concrete is poured. If you need to install after concrete has cured, you will need post-installed expansion or adhesive anchors instead. Also consider corrosion exposure: for outdoor or marine environments, L-type anchor bolt prices and J-type costs must account for material upgrades like stainless steel or hot-dip galvanized coatings.

Step 3: Consider the application type. For utility poles, lighting, and signage, L-type anchor bolts are usually the most practical. For structural columns, heavy equipment, and transmission towers, J-type or T-type anchor bolts are preferred. For general-purpose versatility, I-type anchor bolts or headed bolts offer a cost-effective solution.

Step 4: Check manufacturing and installation constraints. If you need a large-diameter bolt (over M36), manufacturers of L-type anchor bolts can produce these relatively easily. Large J-type bolts, however, are more challenging to fabricate and may be limited to smaller diameters. T-type bolts require precision alignment and are more expensive but may be essential for high-load precision equipment.

Step 5: Factor in standards and compliance. For power transmission projects, follow DL/T 1236-2021, which specifies L-type, J-type, T-type, and I-type anchor bolts for transmission towers. For general structural applications, ASTM F1554 is the standard specification for anchor bolts.

Corrosion protection and material selection

Regardless of which type you choose, material and coating matter for long-term performance. ASTM A307 and F1554 Grade 36 are common for ordinary-strength anchors. For high-strength applications, F1554 Grade 105 or A193 B7 may be specified. Galvanizing is a common corrosion protection option for ASTM A307 bolts, but hot-dip galvanizing is not recommended for A193 B7 due to hydrogen embrittlement risk. Stainless steel may be required in coastal environments. Many L-type anchor bolt suppliers and J-type anchor bolt suppliers offer coated options to match environmental conditions.

Practical recommendations by project type

Project Type

Recommended Anchor Bolt Type

Why

Light poles, street lighting

L-type anchor bolt

Cost-effective, sufficient pull-out resistance

Deck posts, fence posts

J-type anchor bolt

Better holding in wood/concrete connections

Transmission towers

J-type or L-type (DL/T 1236)

Meets power sector standards

Heavy equipment foundations

T-type or J-type anchor bolt

High load capacity, precision alignment

Structural steel columns

I-type or headed bolts (with plate)

Versatile, straightforward installation

Coastal/marine installations

Any type in Stainless 316

Corrosion resistance is the priority

Contact Us

Still unsure whether an L-type, J-type, T-type, or I-type anchor bolt is right for your project? Our team works closely with manufacturers of L-type anchor bolts, J-type anchor bolt suppliers, and T-type anchor bolt manufacturers to source the correct fasteners for every application. We can help you navigate material grades, coating requirements, and standards compliance. Reach out today for a consultation or a quote tailored to your specific project conditions.

FAQ

Q1: What is the difference between L-type and J-type anchor bolts?

The main difference is the shape of the embedded end. An L-type anchor bolt has a single 90-degree bend, providing moderate pull-out resistance for lighter loads. A J-type anchor bolt has a 180-degree hook, offering superior mechanical interlock with concrete and much higher pull-out resistance, making it better suited for heavy-duty applications such as structural columns and transmission towers.

Q2: Can T-type anchor bolts be used for transmission towers?

Yes, T-type anchor bolts are specified in power transmission applications under DL/T 1236-2021. They are often used when precise alignment is required or when the load demands the higher resistance provided by the T-shaped plate embedded in the concrete. However, J-type and L-type are more commonly used for standard tower foundations.

Q3: How do I choose between an L-type and I-type anchor bolt for general equipment?

If your equipment foundation requires resistance to pull-out forces and you can install the bolt before the concrete is poured, an L-type anchor bolt offers better mechanical interlock. If your application relies more on shear strength or if you need a straight rod with an embedded plate for bond strength, an I-type bolt may be suitable. For most general-purpose equipment with moderate tension loads, the L-type is often the more secure choice.
