Ceramic Polymer: Coating of two activated carbon filters and a collection container for a service water system of a parking garage

Ceramic Polymer GmbH manufactures high-quality coating systems for a wide range of applications.
For the water treatment system of a parking garage in Berlin, special tanks were coated internally with their product PROGUARD CN 200.

Ceramic Polymer’s internal coating provides excellent chemical resistance and temperature stability. But equally important for this application case is the extremely good abrasion resistance of PROGUARD CN 200.

Usually, sharp-edged granular activated carbon (GAC) is used for water purification; conventional coatings would be damaged rapidly by the durable friction.

In Germany, the Waste Water Ordinance forbids the disposal of toxic substances into the sewage system. Service water from the parking garage, which is contaminated with oil residues and chemical detergents, must not get into effluents without filtering. Thus, a suitable collecting container and 2 big activated carbon filters are applied for the cleaning of the process water in the car park.

Beside the excellent physical properties, the solvent-free coating system PROGUARD CN 200 features a very simple treatment. After blast cleaning, the product is applied directly onto the steel by normal airless spraying method. The ceramic filled PROGUARD CN 200 facilitates a uniform and immaculate coat. One layer of 500 µm already contributes essentially to a long-lasting service life of the tanks.

Project
Rectangular tank: 1 collecting container – length: 250 cm, width: 200 cm, height: 180 cm

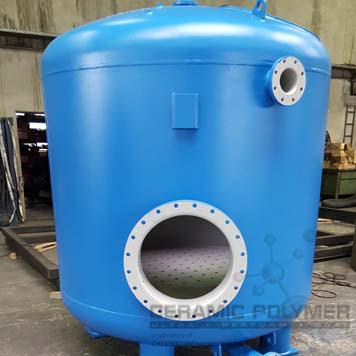

Circular tanks: 2 activated carbon filter vessels – height: 180 cm, diameter: 150 cm
Construction of the tanks and application of the coating: W.T.S.-Ludwig Ltd., Heidenheim/Germany
Product requirements: High chemical and abrasion resistances
Coating product: PROGUARD CN 200

The Ceramic Polymer GmbH produces high-quality, solvent-free protective coatings for different kinds of industries. Due to the integration of microscopic ceramic and other special particles, coating systems with outstanding physical properties such as excellent chemical resistances, high temperature stabilities and extreme abrasion resistances are generated.
The Ceramic Polymer coatings are applied directly on the blasted substrate (e.g. steel, stainless steel, concrete) without the previous use of a primer. In this way extreme adhesion is achieved.
The scopes of the Ceramic Polymer coatings are for instance all kinds of storage tanks, pipelines or process vessels for the oil & gas industry as well as different maritime constructions, waste water or drinking water applications.
