Miniaturized Pressure Transmitters in Plastic Housing - AMS 4710

01-17-2019 01:35 PM CET | Business, Economy, Finances, Banking & Insurance

Press release from: AMSYS GmbH & Co. KG

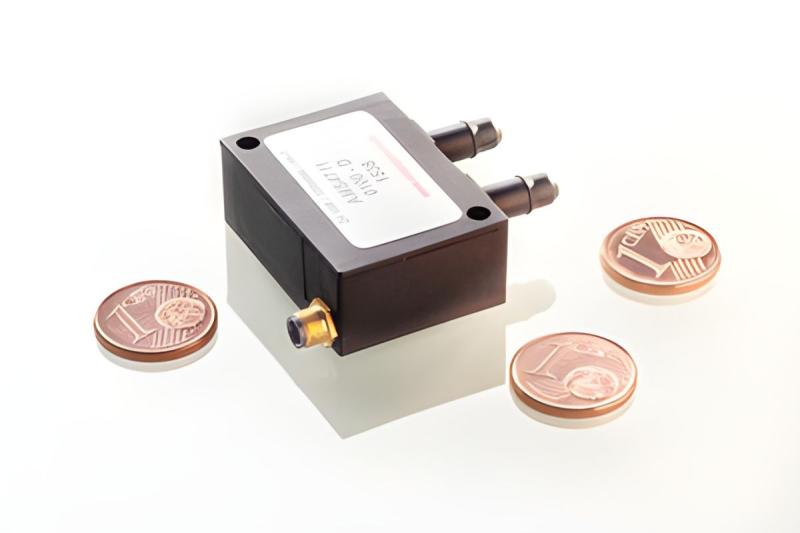

Pressure transmitter AMS 4710 in robust plastic housing

Pressure transmitter AMS 4710 in robust plastic housing

AMSYS GmbH & Co. KG, January 2019. Most people think of pressure transmitters (ready-to-use pressure sensors) as bulky steel-housed sensors. AMSYS shows new ways with its analog pressure transmitters in LEGO-size. These miniaturized transmitters combine excellent performance features with all types of pressure and can be used in several fields of application.

Technical data

The AMS 471X pressure sensors are linearized industrial transmitters, calibrated and compensated in the industrial temperature range of -25 - +85 °C with a supply voltage up to 36 V. The total error depends on the pressure range and is between 0.7 and 1.5% FS over the entire temperature interval. The one-side media resistant transmitters come in a robust plastic package with easy screw connection.

Pressure types and ranges

The AMS 471X series from AMSYS (www.amsys.de) is available for all types of pressure measurement methods: as absolute pressure, relative pressure or differential pressure sensors. They are available in the pressure ranges from 0–5 mbar to 0–2.0 bar. In addition, a bidirectional differential version is offered in the ranges of ± 5.0 mbar to ± 1.0 bar. This type allows measuring negative and positive pressure linearly.
Ultimately, barometric pressure can be measured with air pressure variants in the range from 700 to 1200 mbar. Sensors can also be calibrated custom-specifically to other pressure ranges on demand.

Output signal

The sensor series AMS 471X consists of three different families with different analog signal outputs. They bear the designations AMS 4710 (10 V output), AMS 4711 (5 V output) and AMS 4712 (4– 20 mA output). The new AMS 4710 completes the series of high performing industrial pressure transmitters in plastic housing.

Applications

Areas of application include, beside others, gas flow and back pressure measurement. The AMS 471X can also be used for level measurement for heights of 0– 50 cm or more in open vessels. The absolute pressure sensor series AMS 471X are suitable for vacuum control as well as for barometric measurements.

Summary

The analog AMS 471X are smart pressure sensors in a new, robust housing. They are largely miniaturized and easy to install. The AMS 471X are available in different versions for differential, relative and absolute pressure measurements. They are available with a 5 V / 10 V voltage and a 4 to 20 mA current output, responding to industrial requirements for analog output.

The Company

AMSYS GmbH & Co. KG (www.amsys.de), based in Mainz (Germany) and offers a comprehensive range of innovative humidity, temperature, inclination and pressure sensors. In the field of pressure sensors, this includes analog and/or digital sensors for all pressure types (absolute, relative and differential pressure) from 1 mbar up to of 800 bar.
The portfolio of products offered by AMSYS extends from wafer-level silicon cells through simple SMD-mountable sensors to ready-to-use pressure transmitters with analog output (voltage and current) and digital interfaces, pressure switches and now also wireless multi-sensors for direct use. The company specializes in low-pressure sensors and their miniaturization. Sensors from AMSYS can be counted among the top high-tech products.

Due to the technical competence of the employees, AMSYS also offers customized modifications of the standard products, whereby individual solutions are possible. Further information on https://www.amsys.de

Contact

AMSYS GmbH & Co. KG
Dr. Norbert Rauch
An der Fahrt 4
55124 Mainz
Tel: +49 (0) 6131- 469 875-0
info@amsys.de
www.amsys.de

This release was published on openPR.

Permanent link to this press release:

Copy
Please set a link in the press area of your homepage to this press release on openPR. openPR disclaims liability for any content contained in this release.

You can edit or delete your press release Miniaturized Pressure Transmitters in Plastic Housing - AMS 4710 here

News-ID: 1508282 • Views: 243

More Releases from AMSYS GmbH & Co. KG

ME790 made from ceramics – media resistant pressure sensor for in-dustry & bui …

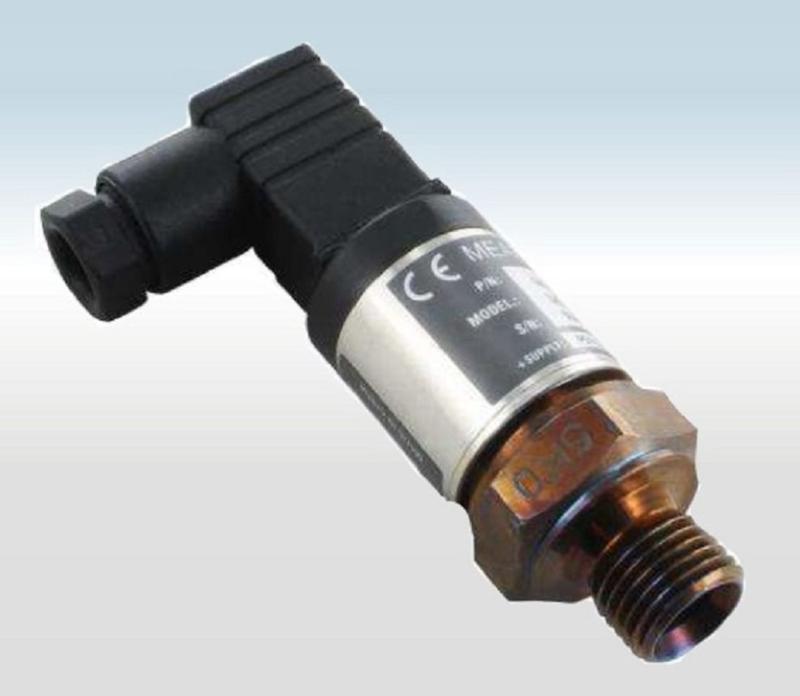

AMSYS GmbH & Co. KG, Mainz, April 2021 – Ceramic pressure sensors are used in conjunction with liquid or aggressive media respectively high pressures. AMSYS (www.amsys-sensor.com) offers the ratiometric ME790 with a calibrated, temperature compensated output signal of 0.5 - 4.5 V for pressures from 3 to 400 bar (optionally 600 bar). Its monolithic design makes the ME790 particularly robust on the one hand, while on the other hand it allows
