Suction of Polluted Air of Inductive Lacquer Drying Ovens

05-18-2010 12:01 PM CET | Business, Economy, Finances, Banking & Insurance

Press release from: LTA Lufttechnik GmbH

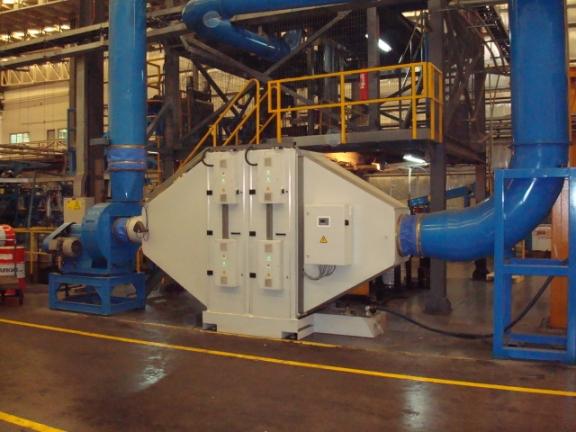

LTA Filter AC 8002, blower

LTA Filter AC 8002, blower

In an inductive lacquer drying oven, packing belts from steel wetted with water-soluble lacquer are dried. The air contamination thus generated is sucked off.
During this process, the sucked air first flows through a high-capacity cyclone filter which takes care of the pre-separation and extraction using its centrifugal force by filtering out coarse particles. The pre-cleaned exhaust air then flows through a double-stage electrostatic filter of the AC 8002 series with an effective suction output of approx. 8000 m3/h. During this process, the particles (aerosols) contained in the air are charged, diverted by an electrical field between the collector plates and thus separated out. The voltage applied to the collector and ioniser can be changed enabling adaptation to the specific application (e.g. oil or emulsion etc.). After that, the cleaned air flows though a blower switched in series and is delivered to the atmosphere via a vent stack. During this sequence, a sensor continuously monitors the quality of the exhaust air. The filtrate from the electrostatic filter and the cyclone filter is collected and discharged to the outside where it is collected in bulk containers. The electrostatic air filter and the exhaust air sensor may be controlled and monitored on a text display using the PLC.

The advantage of this system is the high separation degree of the electrostatic filter as well as the use of regenerative filter elements. Thanks to the use of regenerative filter elements, the filters may be cleaned as often as required which eliminates the high disposal and purchase costs for replacement filters.

The scope of delivery of LTA for this project comprised the cleanable large AC 8002 type filters (effective suction output approx. 8,000 m³) including attachment accessories, a high-capacity cyclone filter, an exhaust air filter and the setting and commissioning of the complete system in July 2009.

LTA Lufttechnik is a renowned partner for complete solutions in air technology. The company projects, builds and delivers air filter and fire protection systems for trade and industry. For over 30 years, LTA has been researching, developing and manufacturing aerosol separation products. The electrostatic separation method is eco-friendly and has continuously been further developed and improved.

Portfolio:
- Separation and cleaning of oil- and emulsion mist at machine tools
- Gathering and separation of sold-, weld- and oil smoke
- Dust- and chip suction
- Special applications, for example suction of plastic-, silicone- & releasing agent vapours
- Explosion- and fire protection at oil-cooled machine tools
- Suction at source, group suction, centralized air suction, hall air cleaning
- High-duty filter units, ventilation, heat recovery
- 24/7 Service with 15 support points in 11 countries

Available in independant or central suction plants, our equipments are used for exhaust air, air supply or hall air suction, purification. The plants are mounted as initial equipments on machines of well-known automotive manufacturers or as retrofits on already available machines of small and medium size enterprises.

Keywords: Airfilter, suction-devices, electrofilter, emulsionmist-filter, oilmist-filter, dustfilter , chipfilter, welding-fume-filter, solder-smoke-filter, safety-technics, fire-protection, machine-tools

LTA Lufttechnik GmbH
Junkerstraße 2
D - 77787 Nordrach

Tel.: +49/7838/84-245
Fax: +49/7838/84-308
Email: info@lta.de
Homepage: www.lta.de

press contact:
Philipp Fehrenbach
sales office-duty and marketing-manager
Tel.: +49/7838/84-331 (Fax: -308)
Email: philipp.fehrenbach@lta.de
