Thermistor Calibration for High Accuracy Measurements

07-25-2018 11:10 AM CET | Industry, Real Estate & Construction

Press release from: CAS DataLoggers

Calculating Steinhart-Hart Coefficients for High-Precision Readings

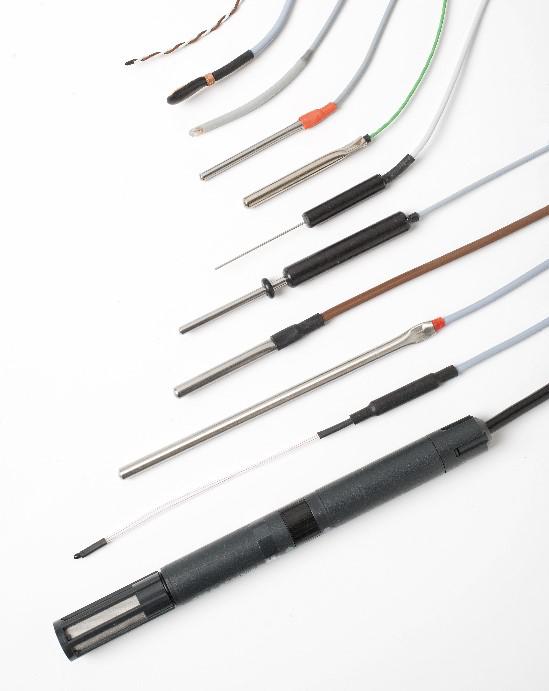

Technicians and engineers often use thermistors to measure temperature in applications which require high accuracy. Thermistors operate by changing resistance as their temperature changes in a very predictable but non-linear way. This characteristic allows them to provide higher accuracy than thermocouples or RTD’s. In order to ensure this high accuracy, thermistor calibration is an important consideration.

One challenge when using thermistors is calculating the temperature from the measured resistance value. To accomplish this, the Steinhart–Hart equation is used to convert a thermistor sensor’s resistance to temperature. When compared against other methods, Steinhart-Hart models will give you much more precise readings across the sensors’ temperature ranges, often within a few hundredths of a degree. Although the Steinhart-Hart equation is not universally known, it is useful in data logging applications such as measuring lake water temperatures, solar hot water systems, and skin temperature measurement.

Many high quality data loggers such as the dataTaker DT8x, Grant SQ20xx and VersaLog VL-TH allow you to enter the coefficients to automatically derive temperature from measured thermistor resistance. As part of our free tech support, we at CAS DataLoggers often provide help in this area for customers who call in asking how to perform the conversion.

Thermistor manufacturers don’t always provide users with Steinhart–Hart coefficients for their sensors; they may simply provide resistance versus temperature tables. In the case of a manufacturer-provided table, it’s not immediately obvious how to derive the necessary coefficients. Or, the user may want to perform self-validation of thermistors by measuring the resistance at several known temperature points and use this data to derive the Steinhart-hart coefficients. To speed up the process, there are several Steinhart-Hart calculators online which allow you to enter the temperature and resistance values and then generate the coefficients. You’ll find a link to our own online calculator, along with an example table, at the end of this article.

Deriving Steinhart-Hart Coefficients for Thermistor Calibration:
In cases where the Steinhart–Hart coefficients are not provided by your thermistor manufacturer or if you are doing thermistor calibration, you can derive them yourself. First, you’ll need three accurate resistance values (either from a table or measured) at three known temperatures and then insert them into the formula to derive the A, B and C coefficients.
Our engineers developed a Steinhart-hart thermistor coefficient calculator in the form of an Excel spreadsheet that does this automatically. The figure below shows an example of how to enter your actual temperature in Celsius and Kelvin (Col. B and C) and your sensor’s resistance (Col. D) at 3 reference points (T1-T3) to derive the 3 Steinhart-Hart coefficients (A, B, C).

You can obtain a copy of this spreadsheet by clicking here.

To get more information on thermistor calibration or thermistor data loggers, contact a CAS Data Logger Applications Specialist at (800) 956-4437 or visit the website at www.DataLoggerInc.com.

Computer Aided Solutions, LLC. dba CAS DataLoggers is a distributor of data loggers, paperless recorders and data acquisition equipment.

We have the industry’s most complete selection of data logging equipment, with hundreds of different models from more than 18 manufacturers. With data loggers from 1 to 300 channels we can record temperature, humidity, force/strain, pressure, flow, voltage, current, resistance, vibration and other digital signals, in connection with serial (RS-232/RS-485), CAN/OBD or SDI-12 devices. We sell directly to end users and also work through a network of distributors and resellers throughout the United States, Canada, Central and South America.
