Torque limiter ECU – short constructed safety clutch for small installation spaces and high torques

In order to protect high-quality machine components in the drive chain from overload, ENEMAC offers a wide range of mechanical torque limiters for all areas of technology

ENEMAC torque limiters interrupt the torque transmission within seconds. The separation of drive and output is purely mechanical and is therefore independent of power failures and similar faults

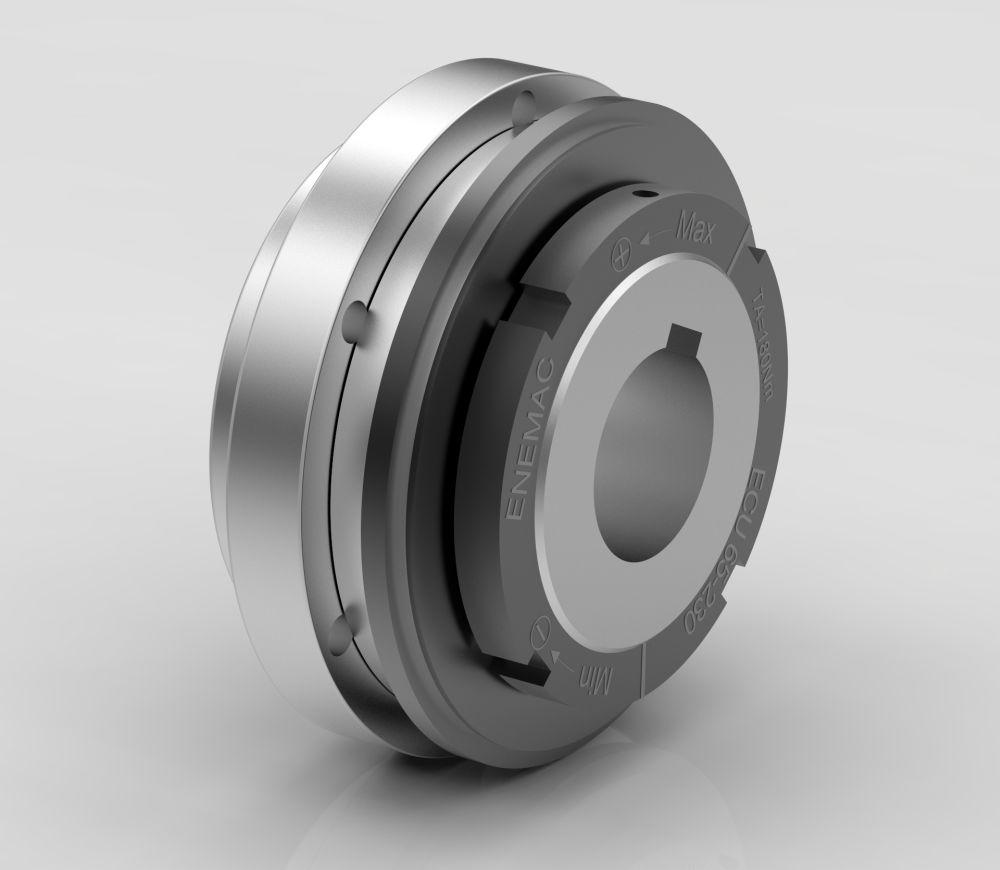

A variant designed for narrow installation space is the axially short-built safety coupling ECU. It isolates exactly to the point by the use of disc springs, which guarantee a large setting range without changing the discs. One tab location per revolution in the well-engineered ball-lock principle ensures separation of the drive chain within a few angular degrees and the automatic re-engagement after 360°.

The stroke of the balls can be requested by the use of a proximity switch and the resulting signal can be given to the control, which shuts down the drive.

In order to keep the ECU as compact as possible, it is fastened to the shaft using a keyway connection. Output parts are mounted on the drive shaft and screwed to the flange ring for torque transmission.

18 sizes between 1.8 Nm and 9000 Nm disengagement torque are available. The shaft can offer a diameter of up to 110 mm.

Smaller disc diameters are available on request.

Founded in 1981 in Kleinwallstadt am Main, the ENEMAC GmbH (Society for Energy and Mechanical Engineering) looks back on more than 30-year history. Steady progress and recent developments have extended and modified the product range of ENEMAC over the decades.
In the early years focusing on the topic of machine safety for feed drives. With the safety clutch type ECT-R ENEMAC entered the market in the machine tool industry. Further series followed to service the needs of this market segment.

During the 1990s, the focus shifted towards food and packaging industry. ENEMAC specialized on rust-free safety couplings made of stainless steel to accomodate the high hygiene and production requirements in this area. In parallel, lower cost versions of safety couplings, the so-called overload clutches have been developed. To complete the product range shaft couplings in different variants and versions have been integrated into the offer.

In recent years, the company ventured a step above the usual "clutch plate" addition in the direction of clamping technology. Mechanical clamping screws and clamping nuts and and hydromechanical spring clamping cylinders provide an alternative to simple workholding equipment such as clamps or clamping claws as well as to semi or fully automatic clamping devices.

ENEMAC clamping technology is very versatile. Whether for tool or workpiece clamping, in materials handling, bending and welding engineering - either as original equipment or aftermarket item.

What value this new product line in the company's development will take, the future will tell. The company will face the new challenges of the market and be constantly striving to meet customer needs individually and in highest quality.
