How Waterproof Pergolas Work: Complete Guide to Hidden Drainage Systems and Leak Prevention

Quick AnswerA waterproof pergola works through a combination of: Sloped louvers Hidden gutters Internal drainage posts EPDM sealing Structural reinforcement

These components collect, divert and discharge rainwater while preventing leakage at joints and spliced connections.

1. Introduction

Waterproof performance is the top consideration for homeowners and commercial buyers choosing aluminum pergolas. Most outdoor structure failures and complaints stem from poor drainage, which causes leakage, roof ponding and joint seepage.Most basic pergolas rely only on surface coatings and external baffles for passive waterproofing. These weak solutions cannot withstand long-term rain, snowmelt and seasonal temperature changes. Standing water seeps through gaps, corrodes aluminum frames and damages outdoor furniture, shortening the structure's service life.Yaoxing Aluminum is a professional aluminum pergola manufacturer with 10+ years of overseas export and project experience. We have delivered numerous projects for luxury villas, residential communities, outdoor catering areas and resort facilities. Instead of unreliable superficial waterproof treatments, we adopt systematic structural design to achieve active water diversion, zero ponding and full closed-loop drainage.This article introduces our core waterproof mechanism, full waterproof advantages of spliced pergolas, product features and factory strengths. We provide trusted professional solutions for global clients purchasing single pergolas or custom spliced outdoor structures.

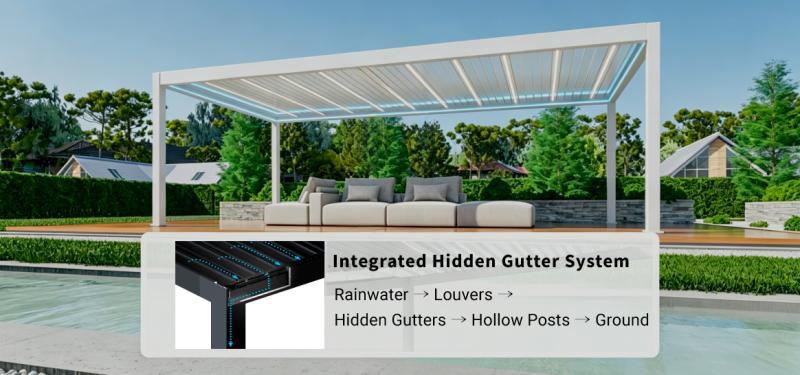

Image: https://ecdn6.globalso.com/upload/p/2279/image_other/2026-06/integrated-hidden-gutter-system-for-pergola-all-flowing-water-away-from-splicing-and-structural-joints.png2. How Does A Waterproof Pergola Work?Yaoxing Aluminum pergolas achieve long-term zero leakage through a mature, field-tested hidden closed-loop drainage system. Our integrated internal channels actively divert water away from structural weak points and joints to prevent accumulation. The complete working process is as follows:

2.1 Rainwater Collection: Sloped Louver Water Guiding StructureOur adjustable aluminum louvers are precisely engineered with a slight slope. This design guides rainwater smoothly toward roof edges and side beams without surface ponding. Unlike flat louvers that easily seep under water pressure, our sloped structure eliminates leakage risks at the source for full waterproof protection.

2.2 Water Convergence & Diversion: Integrated Hidden Gutter SystemE170 pergola side beams integrate concealed gutter channels to collect all rainwater from louvers. With a gradual slope design, the gutters deliver steady water flow toward support posts without ponding or overflow, even during heavy rain.Different from easily damaged external hanging gutters, our built-in gutter is fully integrated with the aluminum frame. It offers excellent wind, aging and corrosion resistance, maintaining stable drainage performance for over 20 years outdoors.

2.3 Closed-Loop Water Discharge: Vertical Drainage Through Hollow PostsAll support posts adopt a hollow structure and connect seamlessly with the gutter system, acting as vertical downspouts to drain water to the ground or designated drainage systems. This closed-loop design keeps all flowing water away from splicing and structural joints.The full drainage path is:Rainwater right Louvers right Hidden Gutters right Hollow Posts right Ground. The fully enclosed system prevents water exposure and splashing, achieving zero seepage at all frame joints.

Image: https://ecdn6.globalso.com/upload/p/2279/image_other/2026-06/how-waterproof-are-spliced-pergolas.png3.How Waterproof Are Spliced Pergolas?Many global clients expand outdoor spaces via pergola splicing. However, most brands only guarantee waterproofing for single units, while spliced combinations often leak at joints due to ponding and structural deformation - a common industry flaw.With rich overseas engineering experience, Yaoxing Aluminum achieves 100% waterproof performance for all spliced pergolas. We support horizontal, vertical, wall-mounted and ceiling-spliced installations for villas, restaurants and commercial areas. All combinations realize zero leakage via our three-core waterproof system:

3.1 Multi-Layer Sealing Technology to Block Joint SeepageAll splicing joints adopt a dual-layer waterproof system. Outdoor-grade UV-resistant EPDM strips fill micro gaps, while structural silicone sealant provides secondary sealing. It expands and contracts with aluminum frames to avoid cracking and sealing failure from temperature changes, permanently blocking joint seepage.

3.2 Reinforced Splicing Structure to Prevent Deformation & Micro-Gap LeakageAll pergola units connect via high-precision aluminum locking profiles, reinforced brackets and anti-loosening fasteners. The structure evenly disperses wind pressure, snow load and weight to prevent displacement, subsidence and deformation during long-term outdoor use.All frames feature premium outdoor powder coating to resist corrosion, rust and fading. This protective finish prevents micro gaps caused by material aging. With precise engineering and high-quality materials, our spliced structures remain tight and stable for decades.

3.3 Splicing-Adaptive Hidden Drainage System for Permanently Dry JointsOur upgraded drainage system is optimized for spliced structures. It adjusts gutter slope and water flow according to different splicing layouts, actively guiding rainwater to bypass joints and drain rapidly. No residual water remains at connection gaps.Unlike ordinary pergolas with uncontrolled water flow, our active drainage keeps spliced areas permanently dry and completely eliminates combination leakage risks.In short, both single standalone pergolas and multi-unit spliced combinations from Yaoxing Aluminum deliver full-scene 100% zero-leakage performance.

4.Case Study: How We Solved Waterproof Challenges for a Residential Pergola in MalaysiaOne of our recent projects was installed for a private residential outdoor living area in Malaysia, a region known for frequent tropical rainstorms and high annual rainfall.

Project InformationLocation: MalaysiaProduct: E170 Retractable Louver PergolaSize: 4.8 m times 2.6 mConfiguration:Motorized retractable roofIntegrated LED lightingThree-side zip screensHidden drainage system

Waterproof Performance ChallengesThe client's primary concern was maintaining a dry outdoor seating area during heavy rain while preserving ventilation and visibility.Because the project was located in a tropical climate, the pergola had to withstand:Frequent heavy rainfallHigh humidityStrong wind-driven rainLong-term outdoor exposure

Waterproof SolutionTo ensure reliable waterproof performance, the pergola was designed with:Integrated hidden gutter channelsHollow-post drainage systemEPDM waterproof sealing stripsStructural silicone sealing at critical jointsReinforced frame connectionsThe drainage system directs rainwater through the following path:Rainwater right Louvers right Hidden Gutters right Hollow Posts right Ground Drainage

ResultAfter installation, the pergola successfully maintained a dry and comfortable outdoor area during seasonal rainstorms.The hidden drainage system effectively discharged rainwater without visible overflow, while all connection points remained free from leakage.This project demonstrates how a properly engineered pergola can achieve long-term waterproof performance even in challenging tropical environments.

Image: https://ecdn6.globalso.com/upload/p/2279/image_other/2026-06/malaysia-e170-retractable-louver-pergola-case-with-led-light-and-zip-screen.png5. Why Some Pergolas Leak While Others Stay WaterproofMost conventional pergolas use passive waterproofing, relying only on surface coatings and single-layer sealants. This solution is short-lived. Coating peeling, sealant aging or minor structural deformation will cause leakage, especially on spliced combinations.Yaoxing Aluminum adopts a superior three-dimensional waterproof logic: Active Drainage + Permanent Sealing + Structural Stability. It covers single and spliced pergolas for long-term zero leakage, delivering better durability and reliability:-Drainage (Core Foundation): Integrated hidden channels drain water actively and rapidly, eliminating ponding at frame and splicing gaps-Sealing (Key Barrier): Dual EPDM and silicone sealing blocks all microscopic seepage gaps-Stability (Long-Term Guarantee): Reinforced connection structures prevent deformation and micro-gap formation

6. Frequently Asked Questions About Waterproof PergolasBased on global client inquiries and overseas project experience, we answer the most frequently asked waterproof questions below:Q1. Can a Louvered Pergola Be Completely Waterproof?Answer:Yes, when the louvers are fully closed and the drainage system is properly designed, a louvered pergola can effectively prevent rainwater from entering the covered area. The waterproof performance depends on the louver profile, sealing system, hidden gutters, and drainage capacity.High-quality aluminum pergolas use integrated drainage channels and hidden downpipes to collect and discharge rainwater efficiently, even during heavy rainfall.

Q2. Why Do Some Pergolas Leak at the Joints?Answer:Joint leakage is usually caused by one or more of the following factors:Poor sealing materials Insufficient drainage design Structural deformation over time Incorrect installation Water accumulation near connection points Premium pergolas use EPDM rubber seals, structural silicone sealants, and reinforced connection profiles to minimize the risk of leakage.

Q3. How Does a Hidden Drainage System Work in a Pergola?Answer:A hidden drainage system collects rainwater from the roof louvers and redirects it through internal gutter channels built inside the beams. The water then flows through hollow support posts and exits at the base of the structure.The typical drainage path is:Rainwater right Louvers right Hidden Gutters right Hollow Posts right Ground DrainageThis design keeps water away from visible surfaces and connection joints.

Q4. Can a Waterproof Pergola Handle Heavy Rain?Answer:A well-engineered waterproof pergola is designed to handle heavy rain conditions. Large-capacity gutters, optimized drainage slopes, and enclosed water channels help prevent overflow and water accumulation.The actual performance depends on local rainfall intensity, pergola size, and drainage system design.

Q5. Are Spliced Pergolas More Likely to Leak? Answer: Not necessarily.Many low-quality pergolas experience leakage at splicing joints because the drainage system was designed only for standalone units.Professionally engineered spliced pergolas use:Reinforced connection structures Waterproof sealing systems Drainage slope optimization to maintain waterproof performance across multiple connected units.

Q6. Do Waterproof Pergolas Require Maintenance? Answer: Yes, but maintenance requirements are minimal.It is recommended to:Remove leaves and debris from drainage outlets Check drainage channels periodically Inspect seals annually Clean louvers and gutters regularly Proper maintenance helps ensure long-term waterproof performance.

Q7. What Is the Difference Between Hidden Drainage and External Gutters?Answer:External gutters are mounted outside the pergola frame and remain visible after installation.Hidden drainage systems are integrated inside the beams and support posts.Compared with external gutters, hidden drainage systems typically offer:Better aesthetics Improved weather resistance Lower maintenance requirements Better protection against wind damage

Q8. How Long Does a Waterproof Aluminum Pergola Last? Answer:A high-quality aluminum pergola can typically last 20 years or more when manufactured with corrosion-resistant aluminum alloy, durable powder coating, and properly designed drainage systems.Regular maintenance can further extend the service life of the structure.

Q9. Can Waterproof Pergolas Be Installed Near Swimming Pools or Coastal Areas? Answer: Yes.Aluminum pergolas are widely used in swimming pool areas, beachfront properties, and coastal environments because aluminum naturally resists corrosion better than steel.For coastal projects, additional surface treatments and marine-grade hardware are often recommended to improve long-term durability.

Q10. What Should Buyers Check Before Purchasing a Waterproof Pergola? Answer: Before purchasing a pergola, buyers should verify: Hidden drainage design Waterproof sealing system Structural load capacity Wind resistance rating Surface treatment quality Warranty terms Availability of installation supportUnderstanding these factors helps buyers select a pergola that provides reliable long-term waterproof performance.

Image: https://ecdn6.globalso.com/upload/p/2279/image_other/2026-06/why-some-pergolas-leak-while-others-stay-waterproof.png

7.Related Waterproof Pergola SolutionsYaoxing Aluminum offers several pergola systems equipped with hidden drainage technology and weather-resistant aluminum structures: Fixed Roof PergolaAdjustable Louver PergolaRetractable Louver PergolaEach system can be customized according to project requirements, including size, color, lighting, side screens, and installation conditions.Explore our complete pergola solutions here.

8.Why Buyers Work With Yaoxing AluminumBuyers choose Yaoxing Aluminum because we provide more than pergola products.

Our team supports project consultation, engineering drawings, customized manufacturing, quality inspection, and installation guidance.

With experience serving residential, hospitality, and commercial projects worldwide, we help clients select suitable pergola systems for different climate conditions and project requirements.

Need Help Choosing a Waterproof Pergola?Whether you are planning a residential patio, restaurant terrace, or large commercial outdoor area, our team can help you evaluate the right pergola solution.Contact us for: Product recommendations Project consultation Custom size solutions Technical drawings Installation guidance WhatsApp: +86 133 3641 2162 [https://api.whatsapp.com/send?phone=8613336412162] Email: sales@yx-aluminum.com Website: www.yx-aluminum.com [https://www.yx-aluminum.com/]
