Understanding Conductivity & Conductivity Meters

Conductivity measurement is a fundamental practice in water treatment https://www.sinoanalyzer.com/news/6-process-automation-instruments-in-water-treatment/ and industrial process control. Gaining a clear understanding of conductivity, https://www.sinoanalyzer.com/news/electrical-conductivity-guide/ how conductivity meters https://www.sinoanalyzer.com/news/electrical-conductivity-meter-guide/ work, and where they are applied helps ensure accurate monitoring and dependable results.

1. What Is Conductivity?

Electrical conductivity is a physical property that quantifies a liquid's ability to conduct electric current. In aqueous solutions, conductivity is determined by the concentration and mobility of dissolved ions, where the more charged particles (like salts or minerals), the higher the conductivity.
Conductivity is expressed in Siemens per centimeter (S/cm) in most industrial and water-quality contexts. Because conductivity spans many orders of magnitude, values are often shown using prefixes such as μS/cm (microsiemens) for pure water and mS/cm (millisiemens) for more conductive solutions.

2. What Is a Conductivity Meter?

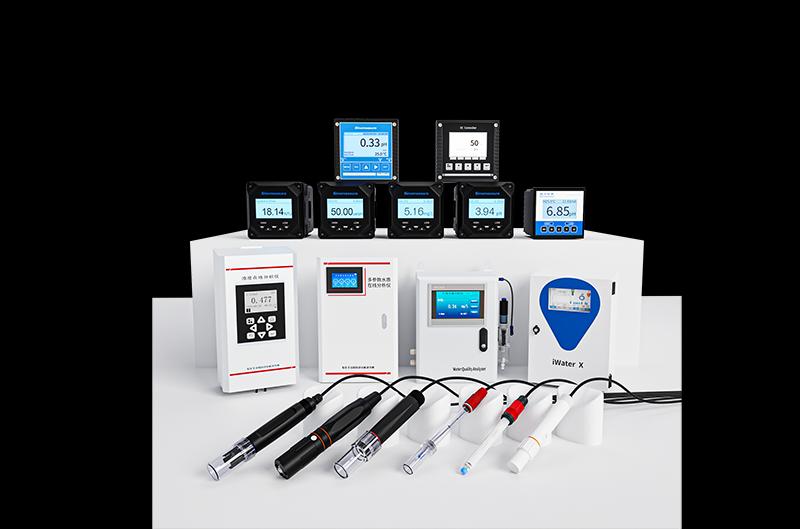

A conductivity meter https://www.sinoanalyzer.com/news/electrical-conductivity-meter/ is an instrument that measures the electrical conductivity of a liquid, essentially revealing how well the liquid can carry an electrical current. Conductivity meters https://www.sinoanalyzer.com/conductivity-meter/ are widely used in industrial, environmental, and laboratory settings, and often provide real-time, continuous monitoring of process fluids.
These meters typically include:
A sensor/probe immersed in the fluid

A transmitter/controller that interprets sensor signals

Integrated temperature compensation to ensure accurate readings across conditions

Modern meters also integrate output signals (e.g., 4-20 mA, RS485/Modbus) and alarm controls for automation systems.

3. Common Working Principles of Conductivity Meters

Understanding how conductivity is measured helps in choosing the right technology and ensures quality data. Although the types of conductivity meters https://www.sinoanalyzer.com/news/electrical-conductivity-meter/ vary, the fundamental working routine remains the same. Let's explore them together:

Step 1: Ionic movement and AC excitation

Conductivity meters apply a stable alternating current (AC) voltage across the electrodes of a conductivity sensor. AC excitation is used to prevent electrode polarization and degradation, which would otherwise distort readings over time.

When the sensor is immersed in the solution, dissolved ions (cations and anions) move under the influence of the electric field, generating an electric current proportional to ion concentration.

Step 2: Conductance measurement

The meter measures the current (I) flowing through the liquid relative to the applied voltage (V), calculating the conductance (G) of the solution (G = I/V).

Step 3: Converting to specific conductivity

Since conductance depends on the geometry of the sensor, it must be normalized using a cell constant (K), a factor based on the sensor's electrode spacing and surface area. The final conductivity (κ) is calculated as:
κ = G × K
Where:
κ = conductivity

G = measured conductance

K = cell constant of the probe
Step 4: Temperature Compensation

Conductivity is highly sensitive to temperature: typically increasing by ~2 % for each °C rise in temperature.

To standardize measurements globally, professional meters use Automatic Temperature Compensation (ATC) to correct and report conductivity relative to a reference temperature (usually 25 °C).

4. Key Components of Conductivity Meters

To function reliably, conductivity meters usually consist of:
Conductivity Sensor/Probe: Detects ionic current

Cell Constant Calibration: Ensures geometric normalization

Temperature Sensor: For compensation & accuracy

Transmitter/Controller: Processes signals and outputs data

Advanced industrial meters also include features such as configurable alarms, relay outputs, and digital communication protocols for integration into control systems.

5. Applications of Conductivity Meters

Because conductivity reflects ion concentration, conductivity meters https://www.sinoanalyzer.com/sup-ec8-0-conductivity-meter-product/ are invaluable across a wide spectrum of industries:

5.1 Water & Wastewater Treatment

Conductivity measurement is central for water and wastewater treatment https://www.sinoanalyzer.com/industries_catalog/water-wastewater/ to monitor water quality, ensure regulatory compliance, and control desalination and purification systems (e.g., RO, DI, wastewater effluent). High conductivity often indicates contamination or dissolved solids.

5.2 Industrial Process Control

In sectors such as chemical fertilizer manufacturing, thermal power, and metallurgy, conductivity meters enable real-time fluid monitoring, process consistency, and safety control.

5.3 Environmental Protection

Continuous monitoring of river or groundwater conductivity can detect pollution, agricultural runoff, or electrolyte changes, critical for environmental stewardship.

5.4 Pharmaceutical & Life Sciences

High traceability and accuracy are needed for pure water systems, formulation processes, and compliance monitoring in pharma production. Conductivity results are used to validate water quality https://www.sinoanalyzer.com/news/main-water-quality-indicators/ and process integrity.

5.5 Boiler Feed Water & Cooling Circuits

In power plants and large HVAC systems, conductance changes help operators manage scaling and corrosion risks, optimizing maintenance and equipment lifespan.
