Moulded Case Circuit Breaker (MCCB): Ensuring Safety and Reliability

The Moulded Case Circuit Breaker [https://www.jiuces.com/moulded-case-circuit-breaker/](MCCB) is a critical component of electrical distribution systems, designed to protect electrical circuits from damage caused by overloads, short circuits, and ground faults. Its robust construction, combined with advanced mechanisms, ensures the continuous and safe operation of electrical systems across industrial, commercial, and residential applications.

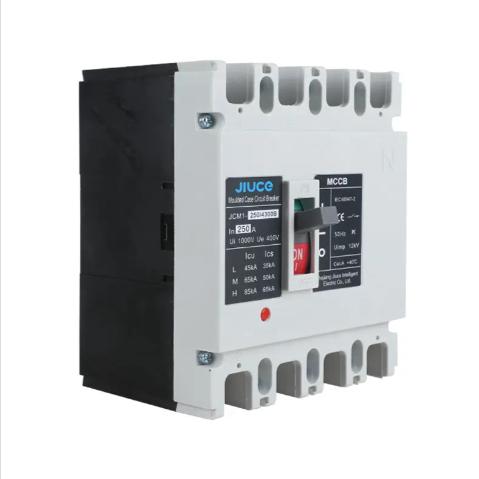

Image: https://www.jiuces.com/uploads/148.png

Introduction to MCCBs [https://www.jiuces.com/moulded-case-circuit-breaker/]

MCCBs are named after their unique design, where the circuit breaker components are encased in a molded, insulated plastic housing. This housing provides superior protection against environmental hazards like dust, moisture, and accidental physical contact, making them highly durable and reliable for various operational settings. These breakers come in various sizes, allowing for a wide range of current and voltage ratings to suit different applications.

MCCBs stand out due to their compact design, high interrupting capacity, and reliability. These features make them indispensable for use in scenarios where consistent and safe operation of electrical circuits is essential, from small-scale residential setups to large industrial networks.

Key Functions of MCCBs

Moulded Case Circuit Breakers serve several critical roles in ensuring the safety and functionality of electrical circuits:

1. Overload Protection

MCCBs are equipped with thermal protection that responds to sustained overload conditions. When an overload occurs, the increased current causes the thermal element to heat up. As the temperature rises, it eventually triggers the trip mechanism, breaking the circuit and preventing further damage. This automatic interruption safeguards electrical equipment and wiring from overheating, reducing the risk of fire.

2. Short Circuit Protection

In the event of a short circuit, where the flow of current bypasses the load and creates a direct path between the power source and ground, MCCBs employ a magnetic trip mechanism. This mechanism acts instantly, typically within milliseconds, to interrupt the flow of current. The rapid response of the MCCB prevents significant damage to equipment and wiring, while also mitigating the risk of electrical fires.

3. Ground Fault Protection

Ground faults occur when current escapes its intended path and finds a path to ground, potentially causing shock hazards or equipment damage. MCCBs can detect ground faults and immediately trip to isolate the fault and protect both the equipment and personnel from harm.

4. Manual Control for Maintenance

MCCBs are also designed for manual operation, allowing users to manually open or close the breaker. This feature is essential for isolating electrical circuits during maintenance, testing, or system upgrades, ensuring the safety of maintenance personnel by preventing accidental re-energization.

Operation of MCCBs

The operation of an MCCB revolves around two key trip mechanisms: thermal protection and magnetic protection.

Thermal Protection

Thermal protection is provided by a bimetallic strip inside the breaker. During normal operation, the bimetallic strip remains cool and the breaker remains closed, allowing current to flow. When an overload occurs, the current increases, causing the bimetallic strip to heat up and bend. This bending eventually trips the breaker, cutting off the power supply. The thermal protection is ideal for protecting against overloads that develop over time, ensuring the breaker responds appropriately without unnecessary interruptions.

Magnetic Protection

Magnetic protection, on the other hand, is designed to respond instantaneously to short circuits. A coil inside the breaker creates a magnetic field when a short circuit occurs, causing a plunger to trip the breaker almost immediately. This instantaneous response is critical for limiting the damage caused by short circuits, protecting both the wiring and the connected equipment.

Adjustable Trip Settings

Many MCCBs are equipped with adjustable trip settings, allowing the user to fine-tune the breaker's response to overloads and short circuits. This customization enables the breaker to be configured according to the specific characteristics of the electrical system, optimizing protection without sacrificing operational efficiency.

Image: https://www.jiuces.com/uploads/227.png

Types of MCCBs

MCCBs come in various types, categorized based on their current ratings, voltage ratings, and operational settings. Here are the main categories:

1. Thermal Magnetic MCCBs

These are the most common type of MCCBs, featuring both thermal and magnetic protection. They are suitable for a wide range of applications, from small residential systems to large industrial installations. Their versatility and effectiveness make them a popular choice for general circuit protection.

2. Electronic Trip MCCBs

In electronic trip MCCBs, the trip mechanism is controlled electronically, providing more precise protection settings. These breakers often come with advanced features such as real-time monitoring, diagnostics, and communication capabilities, making them ideal for complex electrical systems in industrial environments.

3. Residual Current MCCBs

Residual current MCCBs provide protection against ground faults and leakage currents. They are typically used in applications where there is a risk of shock hazards or where leakage current must be closely monitored.

4. Current Limiting MCCBs

These MCCBs are designed to limit the peak current during a short circuit, reducing the energy released during the fault. This minimizes the thermal and mechanical stress on the electrical system, helping to prevent damage to equipment and wiring.

Key Advantages of MCCBs

MCCBs are favored in modern electrical systems for several reasons:

1. High Interrupting Capacity

MCCBs are capable of interrupting large fault currents without sustaining damage to their internal components. This makes them ideal for use in environments where high fault currents are expected, such as industrial and commercial settings.

2. Wide Range of Ratings

MCCBs are available with a broad range of current and voltage ratings, from as low as 15 amperes to over 2,500 amperes, and voltage ratings up to 1,000 volts. This makes them suitable for a variety of applications, from small residential systems to large industrial networks.

3. Compact Design

Despite their high interrupting capacity and robust construction, MCCBs are relatively compact. This compact design allows for easier installation in tight spaces, reducing the footprint of electrical panels and distribution boards.

4. Adjustability

The trip settings on MCCBs can be adjusted to match the specific needs of the electrical system. This flexibility allows users to optimize the breaker's performance for different applications, ensuring the highest level of protection.

5. Durability and Environmental Protection

The molded plastic casing of an MCCB provides insulation and protection against dust, moisture, and other environmental factors. This makes MCCBs highly durable and suitable for use in harsh environments where reliability is critical.

Applications of MCCBs

MCCBs are widely used in a variety of applications, including:

* Industrial Facilities: In industrial environments, MCCBs are essential for protecting machinery, motors, and electrical distribution systems from damage caused by faults.
* Commercial Buildings: MCCBs ensure the safety of electrical circuits in commercial buildings, protecting against faults that could disrupt operations or pose safety risks to occupants.
* Residential Properties: While smaller circuit breakers are often used in residential settings, MCCBs are used in larger homes and multi-dwelling units where higher current ratings and greater interrupting capacities are needed.
* Renewable Energy Systems: MCCBs are commonly used in renewable energy systems, such as solar and wind installations, to protect electrical circuits from faults that could damage equipment or interrupt power generation.
