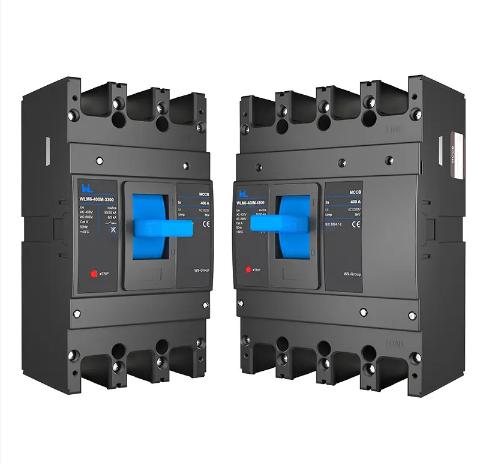

WLM6-400A-3300: Reliable Thermal Magnetic MCCB

Moulded Case Circuit Breakers (MCCB) are essential components in electrical systems, providing protection against overcurrent, short circuits, and other electrical faults. Among the advanced solutions in this category is the WLM6-400A-3300 3P/4P [https://www.w9-group.com/wlm6-400a-3300-3p-4p-wlm6-series-400vac-thermal-magnetic-type-moulded-case-circuit-breaker-400v-690v-400a-3-4-poles-product/], a thermal magnetic type MCCB. This breaker is designed to operate in both thermal and magnetic modes, ensuring robust protection and reliability.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/1-43.png

Key Features of WLM6-400A-3300 [https://www.w9-group.com/wlm6-400a-3300-3p-4p-wlm6-series-400vac-thermal-magnetic-type-moulded-case-circuit-breaker-400v-690v-400a-3-4-poles-product/]

* Rated Current: 400A
* Number of Poles: 3P / 4P
* Rated Working Voltage: 400V/690V
* Type: Thermal Magnetic
* Series: WLM6 Series

Technical Specifications

* Rated Current (In): 400A
* Number of Poles: Available in 3P (three poles) and 4P (four poles) configurations.
* Rated Working Voltage: 400V/690V, suitable for a wide range of applications.
* Breaking Capacity: High breaking capacity ensures safe interruption of high fault currents.
* Thermal Operation: Protects against prolonged overcurrent conditions by utilizing a bimetallic strip that bends and trips the breaker.
* Magnetic Operation: Provides instant protection against short circuits using an electromagnetic mechanism.

Functionality

The WLM6-400A-3300 MCCB (Moulded Case Circuit Breaker) is designed to provide comprehensive protection to electrical circuits. Its functionality is built on two primary protective mechanisms: thermal and magnetic. Here's how each function operates:

Thermal Protection

* Operation: The Thermal MCCBbprotection feature uses a bimetallic strip that responds to sustained overcurrent conditions. When the current flowing through the MCCB exceeds its rated value (400A) for an extended period, the bimetallic strip heats up and bends.
* Mechanism: The bending of the strip triggers the trip mechanism, disconnecting the circuit. This prevents overheating and potential damage to the electrical components due to prolonged overcurrent.
* Application: This is particularly useful in preventing overheating in scenarios where a gradual increase in current occurs, such as in overloaded circuits.

Magnetic Protection

* Operation: The magnetic protection feature uses an electromagnetic coil to respond to instantaneous overcurrent, such as short circuits. When a short circuit occurs, the high current generates a strong magnetic field in the coil.
* Mechanism: The magnetic field rapidly moves a plunger or lever that triggers the trip mechanism, disconnecting the circuit almost instantly.
* Application: This rapid response is crucial in protecting electrical systems from the severe damage that can result from short circuits, which can cause fires and equipment failure.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/2-39.png

Applications

The WLM6-400A-3300 MCCB is versatile and suitable for a wide range of applications across various industries. Here are some common scenarios where this MCCB can be effectively utilized:

Industrial Applications

* Manufacturing Plants: In industrial settings where large machinery and equipment operate, the MCCB provides essential protection against overcurrent and short circuits, ensuring the safety of both equipment and personnel.
* Power Distribution: It is used in power distribution systems to safeguard electrical panels and subpanels from faults that could disrupt operations and damage infrastructure.

Commercial Applications

* Building Management Systems: In commercial buildings, the MCCB protects electrical systems in offices, shopping centers, and other facilities, ensuring uninterrupted power supply and safety.
* HVAC Systems: The MCCB is crucial for protecting heating, ventilation, and air conditioning (HVAC) systems from electrical faults that could lead to system failure and costly repairs.

Residential Applications

* Main Electrical Panels: In residential settings, the MCCB is used in main electrical panels to protect household circuits from overcurrent and short circuits, providing safety and preventing potential fire hazards.
* High-Power Appliances: It is also used to safeguard high-power appliances, such as electric stoves and water heaters, from electrical faults.

Renewable Energy Systems

* Solar Power Systems: The MCCB is used in solar power installations to protect the circuits that connect solar panels to inverters and batteries, ensuring safe and reliable operation.
* Wind Turbines: In wind energy systems, it protects electrical components from faults caused by fluctuating power generation and other issues.

Thermal Protection

The thermal protection feature operates using a bimetallic strip that responds to prolonged overcurrent. When the current exceeds the rated value for a specific duration, the bimetallic strip heats up, bends, and trips the breaker. This prevents overheating and potential damage to the electrical system.

Magnetic Protection

The magnetic protection feature is designed to respond instantaneously to short-circuit conditions. An electromagnetic coil generates a magnetic field that triggers the tripping mechanism, ensuring rapid disconnection of the circuit. This helps to prevent severe damage and potential fire hazards caused by high fault currents.

Design and Construction

* Compact Design: The WLM6-400A-3300 MCCB features a compact and robust design, making it suitable for installation in various environments.
* High Durability: Constructed with high-quality materials, this MCCB offers excellent mechanical and electrical endurance.
* Ease of Installation: Designed for easy installation and maintenance, it includes clear labeling and accessible terminals.

Compliance and Certifications

The WLM6-400A-3300 MCCB complies with international standards such as IEC, ensuring that it meets stringent safety and performance requirements. It also holds various certifications that attest to its quality and reliability.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/3-18.png

Company Overview: W9 Group Technology Electronic Co., Ltd.

W9 Group Technology Electronic Co., Ltd., established in 2024, is headquartered in Yueqing Wenzhou, a city renowned for its electrical appliances in China. The company integrates trading, manufacturing, research, and development, occupying a total factory area of 37,000 square meters. With annual sales reaching 500 million RMB, W9 Group is a significant player in the electrical industry.

Core Brands

* JIUCE (MCB): Focuses on miniature circuit breakers.
* WL (MCCB): Specializes in moulded case circuit breakers.
* WE (ACB): Known for air circuit breakers.

Commitment to Quality

W9 Group is committed to delivering high-quality, cost-effective solutions to its customers. The company has taken the lead in obtaining ISO9001, ISO140001, and OHSAS18001 certifications. Its products comply with IEC international standards and hold over a hundred product patents.

Global Reach

W9 Group's products are marketed throughout China and exported to over 20 countries, including Iran, the Middle East, Russia, Australia, and the United Kingdom. The company aims to provide better prices, quality, and competitive products globally, ensuring customer satisfaction and peace of mind.

Advanced Testing Facilities

W9 Group boasts advanced quality inspection equipment, including a GPL-3 high and low-temperature alternating humidity and heat test chamber. This facility allows for independent inspection of mechanical life, short circuit short delay, and overload long delay of products. Additionally, the company tests the flame retardancy, pressure resistance, and copper plating of components to meet stringent quality standards.

The WLM6-400A-3300 3P/4P WLM6 Series MCCB [https://www.w9-group.com/wlm6-400a-3300-3p-4p-wlm6-series-400vac-thermal-magnetic-type-moulded-case-circuit-breaker-400v-690v-400a-3-4-poles-product/] is an advanced, reliable solution for protecting electrical systems against overcurrent and short circuits. With its robust design, high breaking capacity, and compliance with international standards, it is an excellent choice for various applications. Backed by W9 Group's commitment to quality and innovation, this MCCB ensures safe and efficient operation in any electrical system.
