Grind 'em cool: Premium solution for grinding large gears

The precision shaped abrasive grain Blue Moon™ TZ for maximum material removal rate.
Serial production of large gears requires a high level of quality, excellence and continuity in production. Particular emphasis is placed on maximum synergy between the grinding machine, the grinding process and the grinding wheel. After several successful trials on various Klingelnberg Höfler Rapid grinding machines carried out by Krebs & Riedel with customers in their production facilities, Krebs & Riedel has received several large orders for grinding large gears from abroad and has introduced the new premium grinding wheels with high process reliability. Krebs & Riedel is one of the world's leading manufacturers of grinding wheels for gear grinding in the automotive and EV sector. The family-owned company is also expanding into other sectors where large gears are manufactured with the new Blue Moon™ TZ premium product range.

In recent years, wind power has been an important factor in reducing CO2 emissions. Wind turbines are getting bigger and more powerful, while production costs have to be reduced. This requires production methods that can produce the gears cost-effectively and in high quality, even with complex flank modifications. Gear sizes in wind power typically range from 800 to 4000 mm. Some gears can even reach a diameter of 8000 mm and weigh up to 100 tonnes. The most common size in the field of external gears is 1200 mm in diameter and ranges from module 12 to module 52. The profile grinding wheels typically have a diameter of 100 - 450 mm.

Synergy between the grinding machine, the grinding process and a premium grinding wheel is very important.
Only a perfectly ground gear geometry ensures optimum power transmission for high wind turbine efficiency and smooth running. Grinding burn must be avoided under any circumstances, because the forces in the gearbox are very high and tooth breakage is very expansive. High-precision gear quality is a matter of course at Klingelnberg and Krebs & Riedel. It increases the service life of the individual gear components and makes a significant contribution to reducing maintenance and production costs. To achieve maximum synergy between the grinding machine and the grinding wheel, Krebs & Riedel optimises the process with application support at customers sites around the world and offers with the Blue Moon™ TZ, a new premium grinding wheel with a precision-shaped abrasive grain.

Grind 'em cool: Precision-shaped abrasive grain ensures a very cool grind
Blue Moon™ TZ is characterised by a very high cutting performance and a very high material removal rate. "In some trials, the material removal rate (Q'w) was more than 30 mm³/mms," says Sigurd De Ridder, Senior Application Engineer at Krebs & Riedel, who conducts trials and process optimisation for customers worldwide. He says: "Precision-shaped abrasive grains are state of the art today. Blue Moon™ TZ is comparable in performance to other precision-shaped abrasive gains on the market. It is self-sharpening, very sharp-edged, microcrystalline and has an elongated trapezoidal shape." The homogeneous pore structure of Blue Moon™ TZ contributes to an extreme improvement of the entire cooling system during the grinding process. Due to the open structure, the entire grinding wheel is immediately flooded by the cooling liquid. Even with extreme material removal rate, the chip is transported away from the contact surface. This avoids heat input that could lead to thermal damage to the gear.
Grinding large gears in serial production with the highest quality while reducing production time.
On average of all tests on Klingelnberg Höfler Rapid 2500 machines, Sigurd De Ridder had the following grinding results: A cooler grind and a longer tool life, combined with up to 20% faster grinding time compared to standard grinding wheels. The longer tool life and higher grinding performance helps to reduce costs while achieving the same, or even better, quality of the gear. On average of all dressing tests, Sigurd De Ridder achieved the following results: 20% longer dressing intervals, 30% less infeed, which also leads to a longer tool life of the dressing wheel. Another side effect is that the machines have a lower power consumption after the optimisation.

Huge profile grinding machines with absolute precision, speed, and flexibility

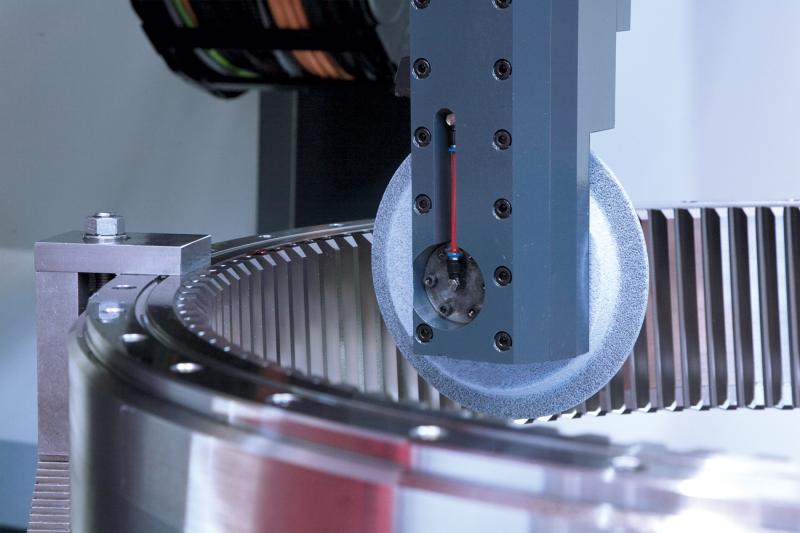

The profile grinding machines of the RAPID series for large workpiece sizes are designed for component diameters up to 8,000 mm. Depending on individual requirements, they are equipped with an extended stroke range (L variant) and are also available in two variants. In addition to the standard configuration, the machine is also available with a small grinding head to accommodate very small grinding wheel diameters of 300-20 mm (K variant). In all configurations, machines of the RAPID series can be converted from external to internal gears in a very short time by means of optional internal gear grinding arms. In addition, the special arrangement of the machine axes, a thermally stable and almost vibration-free machine bed made of mineral casting, as well as wear-free torque drives in the machine table and the grinding head for 5-axis grinding contribute to the proven precision, consistent quality and enormous flexibility. Thanks to the highly flexible grinding head with integrated 3D probe and adjustment of the helix angle during the grinding process, gears can be topologically modified in 1-flank grinding or 2-flank grinding, depending on the permissible deviations. The measurements with the optionally available testing devices ensure a controlled grinding result already during the grinding process.

Choose a premium grinding wheel for large gears
Serial production of large gears requires many hours of workpiece set-up, programming, grinding, dressing and quality control. It is important to use a premium grinding wheel with precision-shaped abrasive grain. The dressing and grinding processes should be perfectly set up on the grinding machine and optimised by application support. The Blue Moon™ TZ premium grinding wheels have not only proven themselves in the grinding of planetary gears, spur gears and IR outer and inner rings. They have also led to a reduction in production costs when grinding drive shafts, automotive gears and conveyor screws.

Krebs & Riedel Schleifscheibenfabrik
GmbH & Co. KG
Bremer Str. 44
34385 Bad Karlshafen
+49 5672 1840
p.boette@krebs-riedel.de

With 250 dedicated employees and annual sales of 32 million euros, Krebs & Riedel is one of the world's leading manufacturers of high-precision, state-of-the-art grinding tools. Above all, customers from the automotive, aerospace, mechanical engineering, medical technology and wind power sectors rely on the high-precision products. The medium-sized family business has subsidiaries in China and India, as well as a global sales network in more than 30 countries.
