Low Energy Ion Scattering (LEIS): A unique tool for characterization of thin metallic films

The ongoing miniaturization of integrated circuits has in recent years led to an increasing replacement of traditional metal layer deposition methods like chemical or physical vapour deposition (CVD or PVD) by atomic layer deposition (ALD). ALD layers meet high standards with respect to layer closure and homogeneity and are used as diffusion barriers or dielectric layers.

Low Energy Ion Scattering (LEIS) has established itself as a technique for testing these thin layers. In LEIS, the sample surface is bombarded with noble gas ions of some keV energy. Due to scattering with top surface atoms a specific energy loss of the projectiles is observed that allows a quantitative determination of the elemental surface composition. Additionally, information on the layer thickness can be gained when projectiles undergo scatter processes in the subsurface. These unique properties make LEIS an ideal tool for the analysis of ALD processes. It can be used to determine the growth rate even for the first ALD cycle, to minimize the number of cycles for a pin hole-free layer closure and to evaluate the thickness variation within a deposited film.

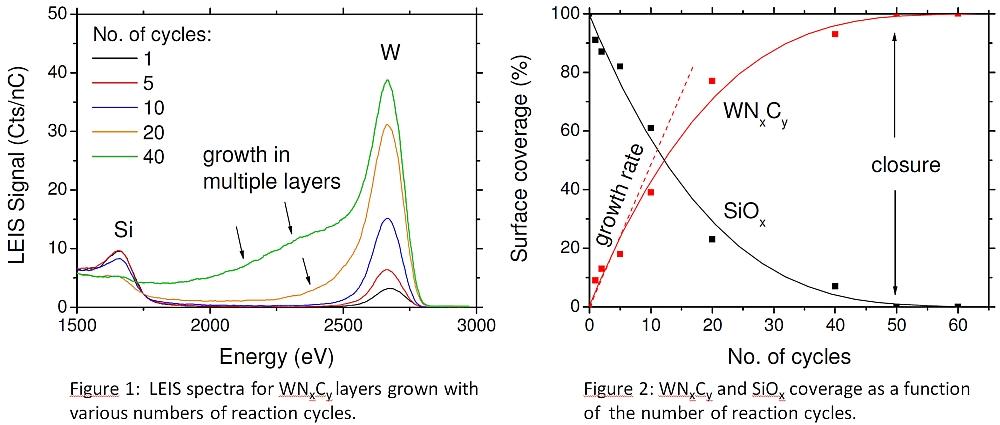

Figure 1 shows LEIS data from WNxCy-layers that were produced after varying numbers of ALD cycles. The aim of this project in co-operation with ASM, a specialist in ALD, was to optimise the ALD process for the manufacturing of diffusion barriers that were as thin as possible, yet pin hole free. With the aid of LEIS, the element composition of the outermost atomic layer and the thickness of the ALD layer were determined quantitatively. The evaluation of the data resulted in the graph in figure 2. It shows that the WNxCy layer is closed after 50 ALD cycles. In addition the data make it possible to draw conclusions about the growth kinetics of the ALD layers.
