New Yorker Electronics to Distribute Conduction-Cooled Capacitors with new Mounting Option

04-10-2019 05:18 PM CET | IT, New Media & Software

Press release from: New Yorker Electronics

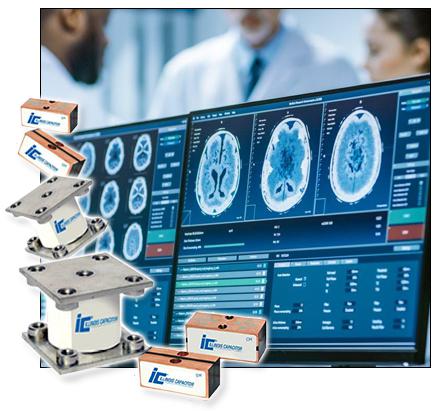

The new Illinois Capacitor line of Self-Healing Polypropylene Film Conduction Cooled Resonant Capacitors with the new direct mount

The new Illinois Capacitor line of Self-Healing Polypropylene Film Conduction Cooled Resonant Capacitors with the new direct mount

NORTHVALE, New Jersey, USA – New Yorker Electronics has expanded its lineup of Conduction-Cooled Capacitors by distributing the new HC Series of Self-Healing Polypropylene Film Conduction Cooled Resonant Capacitors with the direct mounting options. New Yorker Electronics has also featured the Illinois Capacitor line of HC and LC Series Conduction Cooled Capacitor series even prior to the recent modification.

The HC Series are compact rectangular block types, now with direct mounting options. The new 2SM6 direct-mount uses a through-hole design that is compatible with many current applications. Available in the HC1, HC2, HC3A and HC3B, the new mounting configuration provides the highest level of heat transfer and connectivity. It also eliminates the need for mounting hardware, directly mounting to bus bars.

These HC and LC devices are a fit for resonant power circuitry with very high current demands. They are rated at up to 1,200 amps RMS and 1,100VAC. Depending on the capacitance, they are compatible with resonant circuits ranging from 9kHz to 1MHz, with standard capacitance values range from 0.05µF to 37µF. Because corona can be a problem within a capacitor during high-power RF applications, the dielectrics used in both series are impregnated to prevent this issue.

The LC Series (LC2, LC3, LC4, LC5, LC6) capacitors have flat copper plates to allow safe handling the current and voltage in resonant power circuits.

Illinois Capacitor’s conduction cooled capacitors incorporate a self-healing Polypropylene film construction. They are Halogen free, ROHS compliant and meet UL94V0 as flame retardant. Applications include induction heating, resonant power supplies, RF amplifiers, medical imaging systems, welding equipment and electric vehicle charging stations.

Features & Benefits
• Direct mounting options on the HC Series
• From 9 kHz to 1 MHz depending on value
• Up to 1200Arms at the resonant frequency
• Operating temperature ranges from -40°C to +85°C
• Single- or Multiple-Element Construction
• Impregnated to reduce the risk of internal corona

Applications
• Induction Heating
• Resonant Power Supplies
• RF Amplifiers
• Medical Imaging Systems
• Welding Equipment
• Electric Vehicle Charging Stations

New Yorker Electronics is a franchise distributor for Illinois Capacitor and provides its full product line of miniature capacitors for electronics, lighting, energy and other markets including aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors), supercapacitor modules and other types. New Yorker Electronics also supplies the IC RJD Series Rechargeable Coin Cell Battery.

209 Industrial Parkway, Northvale, New Jersey 07647 United States of America
marketing@newyorkerelectronics.com
2017501171

New Yorker Electronics is a certified authorized distributor of electronic components, well known for its full product lines, large inventories and competitive pricing since 1948. New Yorker Electronics is an AS9120B and ISO 9001:2015 certified source of capacitors, resistors, semi-conductors, connectors, filters, inductors and more, and operates entirely at heightened military and aerospace performance levels. It also functions in strict accordance with AS5553 and AS6496 standards — verifying that it has implemented industry standards into everyday practices to thwart the proliferation of counterfeit parts. It is a member of ECIA (Electronics Component Industry Association) and of ERAI (Electronic Resellers Association International).
