Press release
The optimized 5-facet-processing

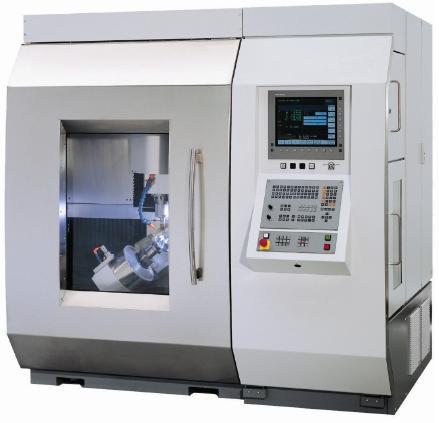

PRIMACON PFM 4024 5-D
This machine convinces through ist modular concept that allows an ideal adjustment to the targeted operation. Despite this, it covers an extensive range of applications in any configuration. The machine is distinguished by its extrem rigidity and low vibrating properties, great dynamics and insignificant inertia. It is suitable for simultaneous 5 facet processing. The tool performs the vertical and horizontal movement; the work piece performs the longitudinal and rotation movements. The modern machine and control concept corresponds with the highest requirements of accuracy, surface quality and productivity on the work piece. A compact design with excellent accessibility during use and service are inspiring.

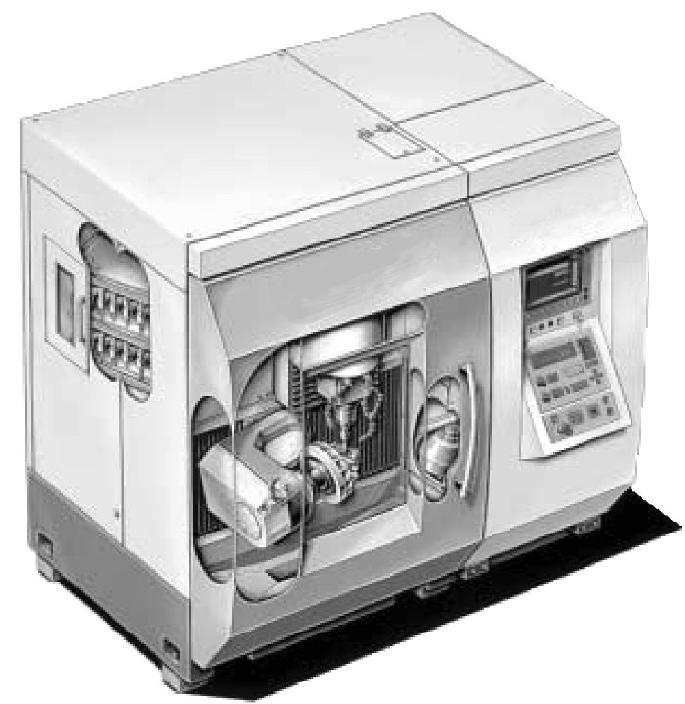

The basic structure is similar to a table milling machine. The machine consists of the base frame that houses the milling module and the various peripheral modules. The machine bed and control platform are designed in sandwich construction of steel/concrete (HYDRPOLÒ) (regidity from steel, buffering from concrete). All axes are equipped with direct measuring systems. The highest measuring and positioning accuracy can only be achieved by this method. Machine bed and motors are liquid-cooled. The Lubrication of all tribological elements is applied for life. As machine control it is used the iTNC 530 by Heidenhain in its highest performing version. Screen, keypad and machine control panel are ergonomically arranged next to the sliding door.
Peripherals are preferably controlled by ProfibusDP. The milling spindle must be selected according to the intended use (refer to separate data sheet). All available spindels are suited for targeted interchanges and the use of 3D push-buttons. Tool changers with 80 (HSK 25 or 32) or 60 (HSK 40) tool locations are available depending on the spindle used. All functions are monitored by sensors. Setups are possible parallel to run times. The tool locations are arranged in 2 chain magazines that are located on top of each other. It is powered by a synchronous motor. The tool gripper is designed as a pneumatic dual gripper that moves over 3 electromotive positioning axes. The change process is prepared parallel to the run time. The automatic work piece changer, which can automatically exchange 6 to 24 work pieces, depends on the size of the work piece and the mounting system. The single gripper is pneumatically controlled and is moved by electromotive positioning axes. However, it is also possible to connect central work piece robots.
PRIMACON PFM 4024 5-D
Axis stokes:
X mm 400
Y mm 240
Z mm 350 (470)
A-Axis (rotary axis) ° 360 endlos
B-Axis (swivel axis) ° -20 bis +110 (zur Waagrechten)
Working range:
Mounting table mm 345 (X) x 295 (Y)
More technical details to our PFM 4024 5-D, please visit our Homepage www.primacon.de .
PRIMACON Maschinenbau GmbH
Wörther Kirchstraße 10
D 82380 Peißenberg
Phone +49 8803 6321-0
Fax. +49 8803 6321-13
E-Mail: info@primacon.de
Website: www.primacon.de
PRIMACON Maschinenbau GmbH
Woerther Kirchstraße 10
82380 Peißenberg
The firm of PRIMACON Maschinenbau GmbH was founded in 1995 by a wellestablished team of engineers, technicians and master craftsmen. The objective of the company is to develop and manufacture of precise and innovative machines. Based on a proficient development team, we are capable to adjust or further develop our machines to meet the individual requirements of our customers. Our basic qualifications are in the development and technology of milling machines in the micro to mid-sized parts spectrum of average to high complexity with integrated automation and high demands for accuracy. You will profit in in your applications from this comprehensive experience spectrum.
