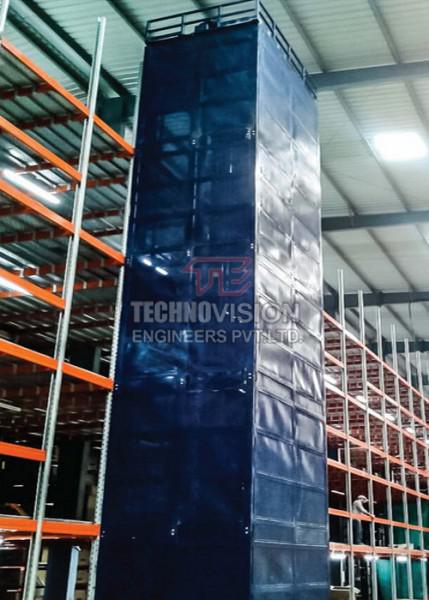

Industrial Lift Manufacturar - Technovision
Technovision 'Industrial Lift' is widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing structure.
Series 'Industrial Lift' is available with lifting capacity up to 2000kgs, carriage size 1500x1500mm and travel height 16.0Mtrs.
Structure: Modular design with MS tubular structure with 'T' guide and vertical 'H' beams. Carriage is MS fabricated tubular structure with checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating sides are provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered with MS perforated sheet optionally.
Watch This Video: https://goo.gl/aYXhsJ
Operation: Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the help of Chain & sprockets mechanism.
2 Nos. of spring loaded Safety cams are provided to arrest sudden fall of the carriage due to failure of lifting chains. Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level floor limit switch
Chain Tensioner Limit Switch provided to stop the carriage in case of the lifting chains are pulled out due to any external obstruction in the upward / downward movement of the carriage
Top safety counter weight limit switch provided to cut-off the main power supply in case the carriage does not stop due to the failure of top floor level limit switch
Landing station collapsible doors are interlocked with electro-mechanical limit switches.
Common contactor is provided to cut-off the main power supply if the up/down contactor is failed.
Read More: http://technovisionengrs.com/Industrial-Lift.php
Please specify the technical details as under:
UDL Capacity, Kgs: Please specify Load carrying capacity.
Carriage Size, mm: Width x Depth x Height
Vertical Travel, mm:
Number of Stops: G + 1/ G + 2 / G + 3 etc.
Location: Please specify the location for installation.
Enquiry Now: http://technovisionengrs.com/contact.php
TEPL is one of the leading manufacturer of material handling equipment's. The core focus of the company lies in superior quality and excellent customer service. The company is one of the front runners in Lean Manufacturing Solutions in India with an ISO 9001-2008 certification.The company owns two manufacturing set-ups and total area of 28000 sq. ft. with all manufacturing and design equipment's.
Technovision Engineers Private Limited
Gat No. 1559-1560,
Dehu Alandi Road, Shelarvasti, Chikali
Pune, Maharashtra- 412114, India
Phone- 020- 66346500 / 523
