Muffle Furnace Ash Testing Supports Mineral and Inorganic Matter Assessment in Food and Agricultural Samples

Pooraka, Australia - October 1, 2026 - Determining ash content is an established laboratory method for assessing the total inorganic residue remaining after a sample is subjected to controlled high-temperature heating. In food, agricultural, feed, and related materials research, ash testing can provide useful information about the mineral and inorganic fraction of a sample and support quality assessment, formulation studies, and material characterization.

M-Kube Enterprise Pty Ltd, based in Pooraka, Australia, provides laboratory furnace solutions for applications requiring controlled high-temperature heating. Its range of muffle furnace systems can support laboratory processes such as ashing, calcination, thermal treatment, and other applications where samples need to be heated without direct exposure to combustion gases.

Understanding Ash Testing in Food and Agricultural Samples

Ash represents the inorganic residue that remains after organic components of a suitable sample have been removed through controlled heating. In food and agricultural laboratories, ash determination can be used as part of broader analytical testing programs.

Depending on the sample and testing method, ash analysis can provide information relevant to:

Food and ingredient quality assessment
Agricultural product characterization
Animal feed analysis
Grain and cereal testing
Biomass research
Mineral and inorganic matter assessment
Formulation and comparative studies
Research into raw-material composition

Ash testing does not identify every individual mineral present in a sample. Instead, it provides a measurement of the remaining inorganic residue, which can then be evaluated using appropriate complementary analytical techniques when detailed elemental identification is required.

Why a Muffle Furnace Is Used for Ash Determination

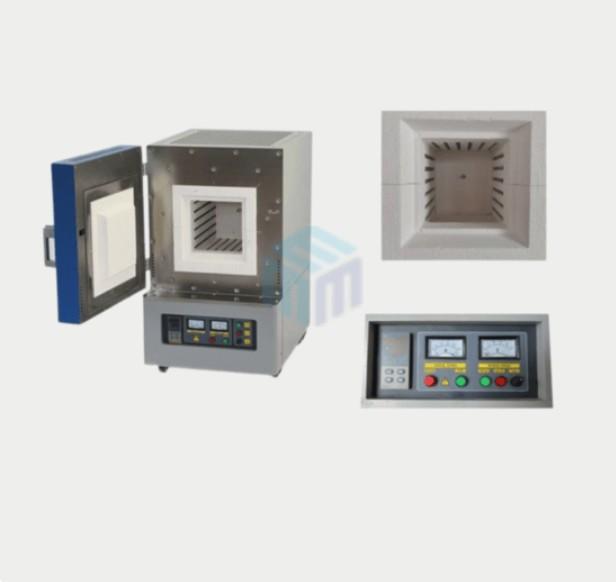

A muffle furnace laboratory system is designed to heat samples at elevated temperatures while separating the sample chamber from direct flame or combustion products. This makes the equipment suitable for controlled ashing and other laboratory thermal-processing applications.

During an ash test, an appropriate sample is placed in a suitable heat-resistant crucible and subjected to a prescribed heating procedure. Organic material is removed through the thermal process, leaving behind inorganic residue that can subsequently be cooled and weighed according to the applicable testing procedure. For more details: https://mkube.com.au/product/muffle-furnace/

The actual temperature, heating duration, sample preparation, and weighing procedure depend on the material and the applicable analytical method.

Choosing a Furnace for Laboratory Ash Testing

Selecting the right furnace for laboratory applications depends on the sample type, required temperature, chamber capacity, testing frequency, and other laboratory requirements.

For routine food and agricultural ash testing, laboratories may require a furnace capable of maintaining a stable temperature over the required testing cycle. Other laboratories may need higher-temperature capability for calcination, ceramic research, materials testing, or specialized thermal-treatment applications.

Important considerations include:

Temperature control: Accurate and repeatable temperature control can help laboratories maintain consistent testing conditions.

Working chamber: The chamber should accommodate the number and size of crucibles being processed.

Heating uniformity: Consistent temperature distribution can be important when multiple samples are processed during the same cycle.

Programmability: Programmable temperature ramps and holding periods can simplify repeatable thermal procedures.

Crucible compatibility: The furnace and selected crucible materials should be appropriate for the intended temperature and sample chemistry.

1200 C Muffle Furnace for Routine Laboratory Applications

A 1200 C Muffle furnace can be suitable for many routine laboratory heating applications where temperatures within this range are required.

For laboratories conducting appropriate ash determination, heat treatment, and general thermal-processing procedures, a 1200°C-class system can provide a practical working range. The actual test temperature should always follow the relevant analytical method rather than simply using the furnace's maximum temperature.

This furnace class can also support applications such as ceramic testing, calcination, thermal decomposition studies, and general laboratory material processing.

1400 C Muffle Furnace for Advanced Thermal Processing

A 1400 C Muffle furnace provides a higher temperature range for laboratories conducting processes beyond routine low- and medium-temperature testing.

Such systems can be considered for advanced ceramic research, calcination, thermal treatment of inorganic materials, and other applications requiring elevated temperatures.

For food and agricultural laboratories, the additional temperature capability may be useful when the same furnace is intended to support multiple research and analytical applications beyond standard ash testing.

1600 C Muffle Furnace for High-Temperature Research

A 1600 C Muffle furnace is designed for more demanding high-temperature laboratory applications. At this temperature range, material compatibility, furnace insulation, heating-element selection, crucible composition, and thermal-cycle requirements become increasingly important.

Applications can include advanced ceramic processing, high-temperature materials research, calcination of refractory materials, and specialized thermal treatment.

The availability of a higher-temperature furnace does not mean that samples should be processed at higher temperatures than specified by their analytical method. Testing conditions should remain consistent with the applicable procedure.

1800 C Muffle Furnace for Specialized Materials Research

An 1800 C Muffle furnace represents a specialized high-temperature furnace class intended for demanding research and materials-processing applications.

These systems can be considered for advanced ceramics, refractory materials, specialized inorganic compounds, and other processes requiring extremely high temperatures.

For laboratories that perform both routine analytical work and advanced materials research, different furnace configurations may be selected according to the temperature and atmosphere requirements of individual applications.

High Temperature Furnace Applications Beyond Ash Testing

A high temperature furnace can serve multiple laboratory functions beyond food and agricultural ash determination. Depending on the furnace configuration, applications can include:

Calcination of inorganic materials
Ceramic firing
Thermal decomposition studies
Heat treatment
Refractory-material research
Powder processing
Materials characterization
Loss-on-ignition testing
Research and development

This versatility can make high-temperature laboratory furnaces valuable to organizations that conduct several types of thermal experiments.

High Temperature Muffle Furnace Selection Considerations

A high temperature muffle furnace should be selected according to the actual requirements of the intended application. Maximum temperature is only one factor in furnace selection.

Laboratories should also consider chamber dimensions, temperature uniformity, heating rate, programmable controls, insulation, heating elements, sample capacity, electrical requirements, and operating environment.

For food and agricultural testing laboratories, repeatability and ease of operation may be particularly important for routine analytical procedures. Research laboratories may instead prioritize temperature range, programmable thermal profiles, chamber configuration, and flexibility for different sample types.

Supporting Food and Agricultural Research

Ash testing is only one component of comprehensive food and agricultural analysis. Laboratories may combine ash determination with moisture, protein, fat, fiber, elemental, and other analytical measurements to develop a broader understanding of sample composition.

The inorganic residue obtained from an ash test can be useful for comparative studies and quality assessment. When more detailed information about specific elements or minerals is required, additional analytical techniques can be applied to the resulting material or to the original sample.

This makes the muffle furnace a supporting piece of laboratory infrastructure within a broader analytical workflow rather than a standalone instrument for identifying individual minerals.

M-Kube Enterprise Pty Ltd Provides Laboratory Furnace Solutions

M-Kube Enterprise Pty Ltd, located in Pooraka, Australia, supplies laboratory and high-temperature equipment for research, testing, and industrial applications.

The company provides furnace solutions for laboratories requiring controlled thermal processing across different temperature ranges. Depending on the intended application, customers can evaluate systems including 1200 C Muffle furnace, 1400 C Muffle furnace, 1600 C Muffle furnace, and 1800 C Muffle furnace configurations.

These furnace systems can support applications ranging from routine laboratory ashing and calcination to advanced materials research requiring significantly higher operating temperatures.

M-Kube Enterprise Pty Ltd can work with laboratories to identify furnace specifications based on sample characteristics, temperature requirements, chamber size, thermal-cycle requirements, and intended application.

806 Maplecrest Rd, Edison, 08820

M-Kube Enterprise Pty Ltd is based in Pooraka, Australia, and provides laboratory equipment, high-temperature furnace systems, advanced materials, and specialty products for research and industrial applications. The company supports laboratories and organizations seeking thermal-processing solutions suited to their specific technical requirements.
