MCB Technology Explained: Internal Structure, Working Principles and Key Applications

Yueqing City, Zhejiang Province, China - September 22, 2026

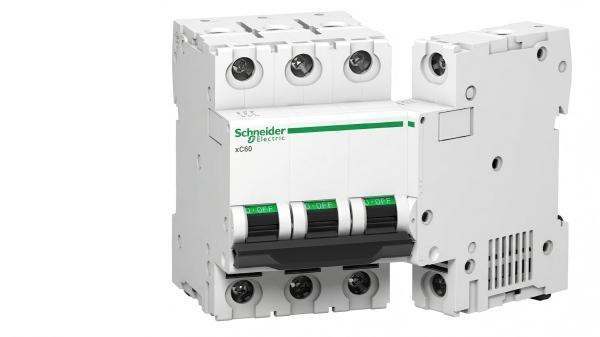

In modern electrical systems, safety and reliability are paramount. Whether in a cozy apartment or a bustling industrial facility, protecting electrical circuits from overloads and short circuits is non-negotiable. This is where the Miniature Circuit Breaker (MCB) plays a vital role.But what exactly is an MCB? What is hidden inside its compact housing, and how does it react so quickly to prevent electrical fires? In this comprehensive guide, we will break down the internal structure, working principles, and key applications of MCBs.What is an MCB?Image: https://ecdn6.globalso.com/upload/p/2862/image_other/2026-04/schneider-mcb.jpgA Miniature Circuit Breaker (MCB) is an electromechanical device designed to protect an electrical circuit from damage caused by excess current-typically resulting from an overload or a short circuit. Unlike traditional fuses that must be replaced after a single operation, an MCB can be easily reset (via a switch) after tripping, making it a safer, more convenient, and more reliable choice for modern low-voltage power distribution.The Internal Structure of an MCBImage: https://ecdn6.globalso.com/upload/p/2862/image_other/2026-04/mcb-internal-structure.jpg

An MCB is a highly precise device. To understand how it works, we have categorized these into four main systems:

1. Housing & Connection Components

* Housing / Enclosure: Made of insulated, fire-retardant materials. It houses all internal mechanisms while providing necessary creepage distances and electrical clearance for safety.
* Upper Terminal: The entry point for current, featuring line connections and clamping parts.
* Lower Terminal: The exit point for current leaving the circuit breaker.
* DIN Rail Holder / Clip: Designed for quick installation and removal on a standard 35 mm DIN rail.

2. The Contact & Conduction System

* Fixed Contact: Pairs with the moving contact to conduct electricity. It is welded with a silver point to withstand the electrical arc generated during tripping.
* Moving Contact: Moves with the operating mechanism. Upon separation, it withstands the arc and directs it upwards.
* Flexible Braid: Conducts electricity between the moving contact and the lower terminal, ensuring the movement of the contact does not disrupt the current flow.
* Contact Pressure Spring: Ensures sufficient contact pressure when closed, reducing temperature rise and electrical erosion.

3. The Tripping & Operating Mechanism

* Operator / Handle: Used for manual ON/OFF switching. It links with the over-center mechanism and indicates the current state of the breaker.
* Thermal Trip (Bimetal Strip): Protects against overloads. The bimetallic strip heats up and bends under prolonged overcurrent, pushing the tripping lever with a time delay.
* Electromagnetic Trip Coil: Protects against short circuits. A massive surge in current dramatically increases the magnetic force, instantly pulling the armature to break the circuit.
* Operating Mechanism (Over-center): A combination of linkages, an energy-storage spring, and a latch that provides rapid switching and a "trip-free" capability.
* Tripping Lever / Latch: Transfers the mechanical action from the thermal or magnetic trip to the main operating mechanism.
* Armature & Yoke / Core: Works in tandem with the electromagnetic coil to achieve instantaneous tripping.

4. The Arc Extinguishing System

* Arc Chute / Plates: A series of metal splitter plates that divide, cool, and de-ionize the electrical arc, enabling current limitation and arc extinction.
* Arc Runner: Uses magnetic blowout forces to "pull" the electrical arc from the contacts directly into the arc chute.

How Does an MCB Work? (Working Principles)

The core function of an MCB relies on three distinct operational principles:1. The Current Path & Trip-Free MechanismDuring normal operation, the current flows through the Upper Terminal right Flexible Braid right Magnetic Trip Coil right Moving/Fixed Contacts right Thermal Bimetal Strip right Lower Terminal. The internal over-center mechanism connects the handle, linkages, and springs into a fast-acting system. Crucially, MCBs feature a "Trip-Free" mechanism. If a fault triggers the thermal or magnetic trip, the latch releases and the contacts are forced apart-even if someone is physically holding the handle in the "ON" position.2. Overload Protection (Thermal Trip - Slow Action)When a circuit is overloaded (e.g., plugging too many appliances into one socket), it generates continuousIR heat.

* Inverse Time Characteristic: This heat causes the bimetallic strip to bend. The higher the current, the faster it bends. Once it reaches a pre-calibrated limit, it pushes the tripping lever to break the circuit. This delayed action provides excellent protection for medium, long-term overloads.

3. Short Circuit Protection (Electromagnetic Trip - Fast Action)During a short circuit, the current spikes to hazardous levels instantly.

* This extreme current flows through the coil, creating a sudden, powerful magnetic field.
* The magnetic force instantly attracts the armature, mechanically striking the trip latch and opening the contacts in milliseconds. (The specific trip thresholds dictate whether the MCB is classified as a Type B, C, or D curve).

4. Arc Control and ExtinctionWhen contacts separate under load, a high-temperature electrical arc forms.

* Formation & Traction: The arc is quickly drawn away from the contacts by the arc runner via magnetic force.
* Segmentation: The arc is pushed into the arc chute, where metal plates slice the single long arc into multiple smaller arcs. The total arc voltage becomes the sum of all segments (Uarc almost equal to n times Useg). When this exceeds the system voltage, the fault current is severely limited.
* De-ionization & Zero-Crossing: The narrow channels cool the arc and absorb ions. For AC power, the arc loses its energy completely when the alternating current crosses the "zero" point, safely extinguishing the spark.

Common Applications of MCBsMCBs are universally applied at the terminal ends of low-voltage distribution systems. Typical applications include:Residential Homes: Lighting, wall sockets, AC, and home appliances. Prevents fires and protects wiring. Often paired with RCBOs in wet areas.Commercial Buildings: Offices, retail, and hotels. Manages power for IT networks and equipment, ensuring stable supply.Light Industry: Small motors, valves, and sensors. Typically uses Type C or Type D curves for high inrush currents.Public Facilities: Street lighting, parks, water pumps, and sewage systems for fundamental protection.Our MCB Production line [https://www.tfautomationline.com/automatic-assembly-line-for-miniature-circuit-breakers-mcb-product/]Conclusion & Manufacturing Solutions

Image: https://ecdn6.globalso.com/upload/p/2862/image_other/2026-04/mcb-assembly-line-1.jpg

The Miniature Circuit Breaker is an engineering marvel packed into a compact enclosure. By perfectly synchronizing its thermal-magnetic tripping mechanisms and its highly efficient arc-extinguishing system, the MCB remains the ultimate frontline defender for modern electrical safety.With the rapid acceleration of global electrification, the upgrading of smart grids, and expanding infrastructure, the global power industry's demand for MCBs and low-voltage electrical components is experiencing explosive and sustained growth.If you are looking to capitalize on this massive market opportunity and plan to manufacture MCBs or similar circuit protection devices in your own country, we are here to help you succeed. We provide much more than just machinery; we are your strategic partner, offering comprehensive, turnkey manufacturing solutions-from production line planning and automated assembly equipment to testing machinery and technical transfer.
