Roll Shaft Parallelism Deviation Causing Strip Tracking Deviation

Deyang, Sichuan, China - September 21, 2026

Understanding the Problem

In cold roll forming, strip tracking deviation - where the metal strip gradually drifts sideways as it passes through the forming stands - is one of the most common causes of edge damage, dimensional inconsistency, and unplanned downtime. While operators often first suspect strip camber, uneven tension, or guide misalignment, a frequently overlooked root cause is roll shaft parallelism deviation: a condition where the upper and lower roll shafts in one or more stands are not perfectly parallel to each other or to the mill centerline.

Even a deviation as small as 0.05-0.10 mm per meter of shaft length can generate uneven forming forces across the strip width, causing it to "walk" toward one side as it progresses down the line. Left uncorrected, this compounds stand-to-stand, producing serious tracking problems by the time the strip reaches the cut-off or final forming stations.

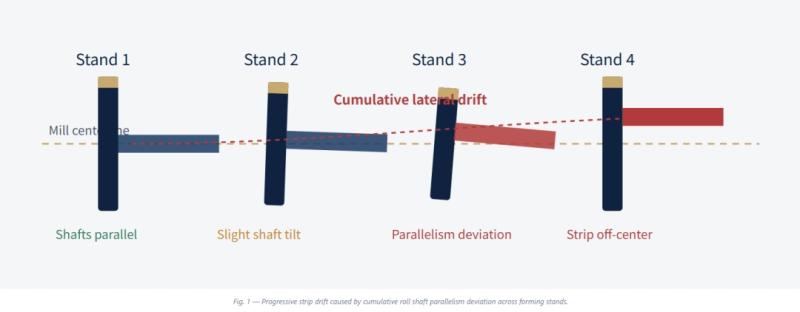

How Shaft Misalignment Creates Tracking Deviation

Each forming stand relies on the upper and lower roll shafts being held in precise parallel alignment, both to each other and relative to the pass line. When parallelism is lost - due to bearing wear, housing deformation, improper shimming, or fabrication tolerance errors - the roll gap becomes uneven across the strip width.

The chain reaction typically looks like this:

* Uneven roll gap forms across the strip width due to shaft tilt.
* One side of the strip experiences greater reduction/forming force than the other.
* Differential elongation occurs - the more heavily worked side of the strip stretches slightly more.
* The strip develops a lateral drift (camber-like effect) as it exits the stand.
* Downstream stands compound the deviation, and by the final stands, the strip is visibly tracking off-center.

Image: https://www.abnewswire.com/upload/2026/09/081648ad61f573621490401862ad2e8f.jpg

Root Causes of Parallelism Deviation

CAUSE
DESCRIPTION
TYPICAL SEVERITY

Bearing housing wear
Worn or loose bearing housings allow shaft ends to sag or shift under load, breaking parallelism over time.
High

Improper shimming during assembly
Uneven shim thickness at shaft support points introduces a built-in tilt from day one.
High

Frame/housing deformation
Long-term load cycling or overload events can deform the stand housing, shifting bearing seats out of parallel.
Medium

Machining tolerance errors
Shaft seats machined out of tolerance at the factory produce a fixed misalignment that no field adjustment can fully correct.
High

Uneven bolt torque on bearing blocks
Inconsistent tightening sequences during maintenance can pull one side of the shaft slightly out of position.
Medium

Thermal expansion asymmetry
Uneven heat distribution across the stand (e.g., from lubrication issues) can cause one side to expand more than the other.
Low

Diagnosing Parallelism Deviation in the Field

Because tracking deviation can also stem from tension imbalance, strip camber, or guide roller misalignment, correctly isolating shaft parallelism as the cause requires a systematic check:

* Dial indicator gap check: Measure the roll gap at both ends of the shaft (drive side and operator side) under no-load conditions. A difference greater than 0.05 mm/m of shaft length signals a parallelism issue.
* Laser alignment survey: Use a laser alignment tool across the stand to verify the upper and lower shaft centerlines are truly parallel and coincide with the mill centerline.
* Progressive stand isolation: Run the strip through the line stand-by-stand (where feasible) and note at which stand the lateral drift first becomes measurable.
* Bearing housing inspection: Check for play, scoring, or uneven wear patterns in bearing seats - a strong indicator of a developing parallelism fault.
* Witness marks on strip edge: Uneven edge wear or witness marks concentrated on one side across multiple stands often correlates with a specific stand's shaft alignment.

Image: https://www.abnewswire.com/upload/2026/09/10520b8addfdbffea2e6470139727a25.jpg

Downstream Consequences If Left Uncorrected

CONSEQUENCE
IMPACT
RISK LEVEL

Strip edge damage
Contact with side guides/frame due to lateral walk, requiring edge trimming or scrap.
High

Dimensional inconsistency
Profile width/height varies along the coil length as tracking shifts.
High

Accelerated roll wear
Uneven load concentration wears one side of the roll tooling faster, shortening service life.
Medium

Unplanned downtime
Frequent manual re-centering or emergency stops to correct tracking drift.
Medium

Compounding stand damage
Uncorrected deviation propagates stress to downstream stands, widening the fault.
High

How XC XiongChang Engineers Out This Problem

Roll shaft parallelism is not something that should be "corrected" repeatedly in the field - it should be engineered out from the first day of machine design and manufacturing. At XC XiongChang, precision alignment is built into every stand we produce:

* Precision-machined shaft seats: All bearing seats and shaft housings are CNC-machined to tight tolerances, ensuring inherent parallelism before assembly even begins.
* Laser-verified stand assembly: Every forming stand is laser-aligned during assembly and re-verified before shipment, not just measured on paper drawings.
* Heavy-duty bearing housings: Reinforced housing design resists deformation under sustained high-speed, high-load production, preserving alignment over years of operation.
* Standardized shimming procedure: Our assembly protocol uses calibrated shim sets and torque sequencing to eliminate human-error-induced misalignment.
* Field alignment support: For machines already in service, our engineers provide on-site or remote diagnostic support to identify and correct developing parallelism issues before they cause line stoppages.

Image: https://ecdn6.globalso.com/upload/p/4924/image_other/2026-05/xc-xiongchang-roll-former.jpg

Engineering principle: A roll forming line is only as accurate as its least-aligned stand. XC XiongChang designs every stand to the same rigorous tolerance standard - not just the critical ones - because tracking deviation can originate anywhere in the line.

Precision-Built Roll Forming Equipment from XC XiongChang

Sichuan Xiongchang Technology Co., Ltd. designs and manufactures cold roll forming machinery engineered for accuracy, durability, and long-term stability - because tracking deviation, edge damage, and premature roll wear all start with alignment.

20+ Years Expertise

In-house R&D and engineering teams applying decades of hands-on roll forming knowledge to every stand we build.

Built for Longevity

Machines engineered for high-speed operation without sacrificing precision, designed for stable long-term performance.

24/7 Global Support

Reliable delivery, strong financial backing, and round-the-clock after-sales service for clients worldwide.
