Adsorbent Support for China Hydrogen Production: JOOZEO Links PSA Selection with Purification Experience

Securing a reliable China Hydrogen Production Solution (https://www.joozeo.com/application/psa-hydrogen-generator/) requires operators to precisely differentiate the upfront hydrogen generation process from the critical downstream Pressure Swing Adsorption (PSA) purification stage. Shanghai Jiuzhou Chemicals Co., Ltd. (JOOZEO) provides highly verifiable technical support specifically focused on this purification interface. By deploying the JZ-512H molecular sieve-engineered explicitly for the adsorption of CO, CH4, and N2 impurities-and backing it with detailed carbon monoxide adsorption data (≥30 ml/g), the company enables facilities to ground their material selection in the exact mechanics of high-pressure adsorption, pressure equalization, and desorption cycles. This ensures maximum final hydrogen purity.

Hydrogen Production Procurement Must Separate Generation from Purification

A rigorous approach to hydrogen projects must immediately divide the overarching "production" scope into the upstream generation technology (such as steam methane reforming or electrolysis) and the downstream PSA purification task. Different generation routes produce distinct raw gas profiles containing varying levels of carbon monoxide (CO), methane (CH4), and nitrogen (N2). PSA purification relies on exploiting the behavioral differences between these specific impurities and the hydrogen molecules as they interact with the adsorption bed.

By separating these scopes, procurement teams cleanly delineate responsibilities. The main generation equipment, compression stages, and overarching process design must be contracted separately from the specialized provision of the adsorbent media. JOOZEO's verifiable support is concentrated squarely on adsorbent selection and impurity removal. Clearly establishing this boundary ensures that material recommendations are not misinterpreted as comprehensive engineering commitments, allowing the adsorbent's capabilities to integrate seamlessly into a well-defined project interface.

Pressure Swing Cycles Create the Separation Driving Force

The efficacy of PSA hydrogen purification is entirely dependent on the pressure differential between the high-pressure adsorption phase and the low-pressure desorption phase. This mechanical cycling creates the driving force that traps impurities within the bed while allowing the highly volatile hydrogen to pass through unimpeded. During the high-pressure stage, the JZ-512H molecular sieve actively adsorbs the targeted CO, CH4, and N2 molecules. It effectively scrubs the gas stream and allows the purified hydrogen to exit as the final product.

In a multi-tower system, the vessels sequentially transition through adsorption, pressure equalization, and desorption. This systematic pressure reduction safely releases the trapped impurities, regenerating the molecular sieve's capacity and preparing the bed for the next cycle. This continuous pressure swing process is the operational heart of the purification strategy, directly translating the kinetic selectivity of the adsorbent material into a continuous stream of high-purity hydrogen gas.

JZ-512H Combines Five-Angstrom Access with Hydrogen Duty

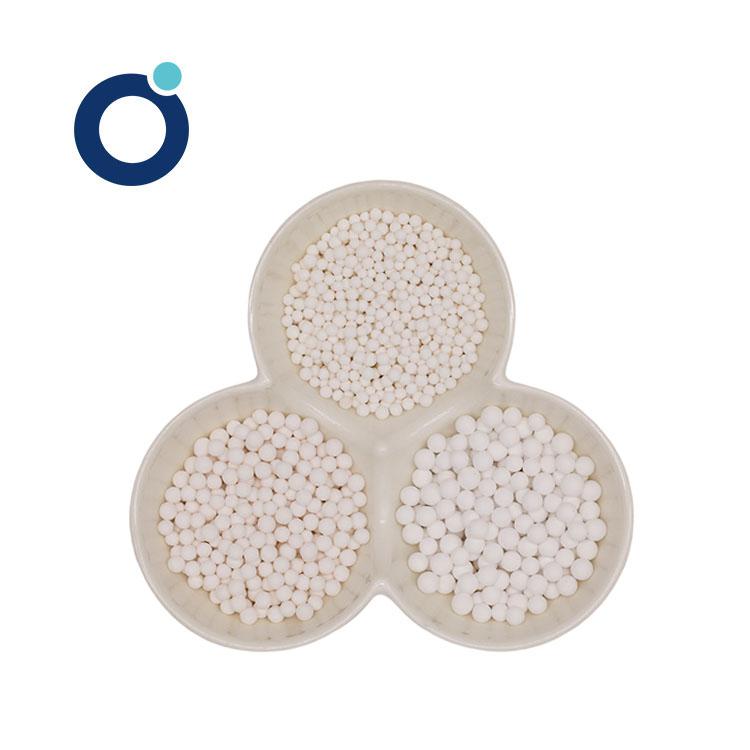

The JZ-512H molecular sieve is engineered with a calcium-sodium aluminosilicate structure featuring a precisely controlled pore size that permits access only to molecules no larger than 5 Angstroms. This structural strictness provides the fundamental basis for molecular sieving, allowing gas components with different kinetic diameters and adsorption affinities to behave differently under pressure cycling.

JOOZEO (https://www.joozeo.com/about-joozeo/) officially positions the JZ-512H not as a generic purifier, but as a specialized material for PSA hydrogen purification, carbon monoxide refining, and normal/isoparaffin separation, explicitly confirming that the model is designed around highly specific molecular selection tasks rather than broad, undefined filtration. By combining a strict 5-Angstrom pore restriction with a targeted application focus, JZ-512H provides engineers with a precise technical rationale for hydrogen purification, far exceeding the reliability of relying on a generalized "molecular sieve" label.

Gas Adsorption Data Supports Impurity-Specific Review

Evaluating an adsorbent for hydrogen purification requires a forensic review of its gas-specific adsorption data, rather than a reliance on basic static water adsorption figures or generic mechanical strength metrics. JOOZEO provides quantifiable adsorption baselines for the JZ-512H model, guaranteeing CO adsorption of not less than 30 ml/g, CH4 adsorption of not less than 16 ml/g, and N2 adsorption of not less than 10 ml/g, while strictly limiting oxygen (O2) adsorption to no more than 3.4 ml/g.

Project engineers must correlate these specific adsorption values directly with their facility's feed gas concentration, operating pressure, bed temperature, cycle timing, and ultimate hydrogen purity requirements. This rigorous, impurity-specific cross-referencing determines whether JZ-512H can operate independently or if complex pre-treatment or layered bed configurations are necessary. Providing precise gas adsorption data transforms JZ-512H from a catalog item into a quantifiable engineering variable for critical project design.

Mechanical Properties Protect Repeated Bed Operation

The long-term viability of a PSA bed subjected to continuous, rapid pressure fluctuations is dictated by the particle strength, attrition resistance, and dimensional consistency of the adsorbent. If a material fractures or turns to dust, the system will suffer from channeling, severe pressure drops, and catastrophic contamination of the product gas. JZ-512H mitigates these mechanical risks through a controlled spherical particle size of 1.6-2.5 mm, an exceptionally low attrition rate of ≤0.15%, a minimum crush strength of 45 N/piece, and a robust bulk density of ≥0.75 g/ml.

These mechanical parameters are crucial for calculating loading volumes, assessing transportation durability, and predicting the material's resilience against the repetitive kinetic shock of PSA cycling. Furthermore, these metrics must be explicitly integrated into delivery acceptance documents alongside allowable pressure drop thresholds and necessary filtering configurations. By enforcing strict mechanical property reviews, facilities can ensure that the laboratory specifications of JZ-512H reliably translate into stable, long-term bed operation.

JOOZEO Connects Feed-Gas Data with a Traceable PSA Review

By demanding accurate feed-gas impurity profiles, pressure cycle parameters, and target hydrogen quality metrics, JOOZEO facilitates a highly structured application review for the JZ-512H molecular sieve. Procurement teams initiating a project should provide comprehensive data detailing inlet composition, flow rates, temperature, adsorption/desorption pressures, and cycle times. In turn, they require the supplier to provide corresponding Technical Data Sheets (TDS), customized packaging, strict storage protocols, and loading guidelines.

This reciprocal data exchange ensures that the procurement process remains traceable and technically sound. To initiate a rigorous, impurity-driven technical dialogue, engineers and procurement specialists can access detailed PSA hydrogen purification resources and the JZ-512H specification data directly via the official website at https://www.joozeo.com/. By combining concrete material data with extensive PSA purification experience, JOOZEO establishes a highly verifiable foundation for critical hydrogen production decisions.
