TOB NEW ENERGY Releases Engineering Insights on Scaling Battery Manufacturing from Lab Validation to Gigafactory Production

Every battery product is built three times.
First, in a laboratory - to answer whether the chemistry works at all. Then, on a pilot line - to answer whether it can be made consistently. Finally, on a production line - to answer whether it can be made economically at scale.
Each stage uses different equipment, demands different engineering discipline, and fails in different ways. The gap between stages is not a smooth gradient. It is a series of discrete cliffs. And the engineers who cross those cliffs successfully are not necessarily the same engineers who developed the original cell chemistry. Scaling a battery is a manufacturing problem, not a materials science problem - a distinction that catches many first-time founders off guard.
This roadmap traces the arc from a single coin cell in a glove box to a production line shipping millions of cells per year. It is written for battery start-up founders, R&D directors transitioning into manufacturing, and anyone who has been told "the chemistry works" and now needs to figure out what happens next.

Stage 1: The Battery Laboratory Line - Proving the Chemistry
The laboratory stage has one objective: determine whether the active materials, electrolyte formulation, and electrode design can produce a cell with commercially viable performance metrics. Everything else - cycle life, rate capability, safety margins - is secondary at this point.
The workhorse of this stage is the coin cell. CR2016, CR2025, and CR2032 formats allow researchers to screen cathode materials, anode materials, and electrolyte combinations rapidly, with minimal material consumption and quick turnaround. A well-equipped battery R&D lab(https://www.tobmachine.com/coin-cell-equipment_c84) typically includes a planetary mixer for slurry preparation, a manual film coating machine, an electrode cutter, a rolling press for electrode calendering, and a crimping machine for cell sealing - a configuration that can be assembled for a fraction of what a pilot line costs.
Equipment suppliers who specialize in this segment, such as TOB NEW ENERGY(https://www.tobmachine.com/) - a China-based battery equipment manufacturer with 24 years of domain experience - offer integrated coin cell lab line packages that bundle all necessary equipment and consumable materials into a single procurement. This one-stop approach eliminates the complexity of sourcing mixers, coaters, presses, and crimpers from multiple vendors and ensures equipment compatibility from day one.

The typical workflow at this stage runs: slurry mixing → electrode coating on aluminum or copper foil → drying → calendering → cutting into discs → coin cell assembly in a glove box → electrochemical testing. A single researcher can run dozens of material combinations per week.
What the lab tells you: Whether the electrochemical fundamentals are sound. Capacity, first-cycle efficiency, rate capability trends, and early-cycle stability.
What the lab does not tell you: Whether the slurry can be coated at meters per minute instead of centimeters per minute. Whether the electrode will delaminate during high-speed winding. Whether the electrolyte filling protocol that works for a single cell in a glove box will work for a thousand cells on a production floor with 2% humidity. Whether your cell, when made ten thousand times, will behave the same way every time.
The most dangerous moment in battery development is mistaking coin cell data for a manufacturing license. It is not. It is permission to begin the real work.

Stage 2: The Battery Pilot Line - Freezing the Process
If the laboratory answers "what," the pilot line answers "how." This is where process parameters are systematically explored, fixed, and documented. The goal is to produce A-samples and B-samples that demonstrate consistency across multiple batches, while simultaneously generating the data needed to specify production equipment.
A pilot line mirrors the architecture of a full production line but operates at reduced throughput. A typical pouch cell pilot line(https://www.tobmachine.com/pouch-cell-assembly-equipment_c103) includes continuous slurry mixing, slot-die or transfer coating at several meters per minute, continuous calendering, slitting to precise widths, stacking or winding, tab welding, packaging, electrolyte filling under vacuum, and formation cycling - but with manual or semi-automatic transfer between stations rather than full automation.
This is the stage where most battery start-ups encounter their first real engineering crisis. Problems that were invisible at coin cell scale suddenly dominate:
Slurry rheology at continuous mixing speeds. A formulation that mixed perfectly in a 100 mL beaker may exhibit shear-thinning behavior, particle agglomeration, or viscosity drift when processed in a continuous planetary mixer running for hours. The slurry is a living system - solvent evaporation, binder swelling, and particle settling all evolve over time. A pilot line is where you learn to control that evolution.
Coating uniformity at production speeds. The coating window - the range of speeds and gap settings that produce a uniform wet film - shrinks dramatically as you move from a manual doctor blade to a slot-die coater running continuous foil. Edge effects, ribbing instabilities, and pinhole defects that were statistically irrelevant on a 10 cm × 10 cm hand-coated sheet become yield-killers on a 300-meter roll.
Electrode adhesion during high-speed processing. Electrodes that survive gentle manual handling may delaminate during the tight-radius bends of a cylindrical winder or the mechanical stress of an automatic stacking machine. Adhesion is not just about the binder chemistry; it is about the entire coating, drying, and calendering sequence.
Moisture sensitivity at scale. In a glove box, moisture is measured in parts per million and controlled by design. On a production floor, moisture comes from the air, from the electrode foils, from the separator, from the electrolyte itself - and from the operators. Materials that performed brilliantly in the lab may require a complete process redesign when exposed to production-floor humidity, even inside a dry room.
The output of a successful pilot stage is a frozen process - a documented set of parameters that produces cells within specification, batch after batch. Companies that have navigated this stage successfully often cite the value of working with equipment partners who operate their own pilot lines. TOB NEW ENERGY, for instance, runs three in-house pilot lines - for cylindrical, pouch, and prismatic cells - within its 3,000-square-meter R&D center, allowing customers to validate their processes on production-grade equipment before committing capital. This model of supplier-side process validation substantially reduces the risk of scaling too early.
What the pilot line tells you: Whether your process is manufacturable. Yield trends, consistency metrics, failure modes, and the sensitivity of cell performance to each process parameter.
What the pilot line does not tell you: Whether the economics work at high volume. Whether your equipment can run 24/7 without excessive downtime. Whether your supply chain for critical materials can scale. Whether your quality system can catch defects before they become field failures.

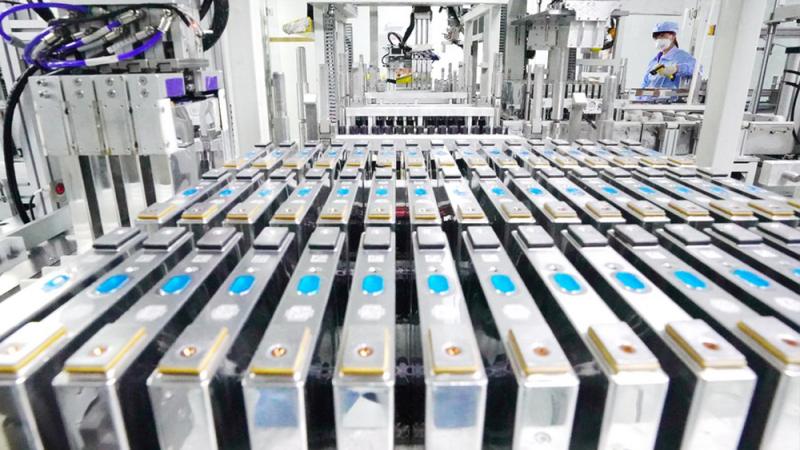

Stage 3: The Battery Production Line - Manufacturing Economics
The battery production line(https://www.tobmachine.com/battery-production-line_c63) is not a larger pilot line. It is a fundamentally different system with a fundamentally different objective. The pilot line asks: can we make this cell? The production line asks: can we make it at the required yield, throughput, and cost - every day, every shift, every year?
Several transitions define the jump from pilot to production:
From batch to continuous. Mixing moves from batch planetary mixers to continuous twin-screw extrusion. Coating moves from intermittent transfer coating to continuous slot-die with in-line thickness gauging. Calendering and slitting become fully continuous processes with automatic tension control and defect detection. Each transition eliminates a manual handling step - and introduces a new class of process control challenges.
From manual inspection to automated quality assurance. On a pilot line, an experienced operator can visually inspect coated electrodes and reject sections with visible defects. On a production line coating at 60 meters per minute, this is physically impossible. In-line vision systems, laser thickness gauges, and automated defect marking become mandatory. The quality system must catch problems in real time, not after a day's production has been wound onto a roll.
From flexible to dedicated. A pilot line is designed to accommodate multiple cell formats and chemistries. A production line is optimized for one. Tooling becomes product-specific. Changeover time becomes a cost driver. The decision to commit to a particular cell format and chemistry is irreversible without significant capital expenditure.
From process to system. On a pilot line, equipment pieces are connected by operators carrying trays. On a production line, they are connected by automated material handling, buffer systems, and a manufacturing execution system (MES) that tracks every cell from slurry mixing to final grading. The system integration becomes as critical as any individual machine.
Formation and aging become the bottleneck. Formation - the initial charge-discharge cycles that build the solid electrolyte interphase (SEI) - can take 12 to 48 hours depending on the chemistry. For a production line shipping millions of cells per year, this translates to thousands of formation channels operating simultaneously, consuming significant floor space and electrical power. Formation system design - channel count, current accuracy, thermal management, and data throughput - becomes one of the largest capital and operational cost drivers in the entire factory, and is an area where integrated equipment suppliers like TOB NEW ENERGY provide significant value by designing the formation architecture in concert with the upstream assembly line rather than treating it as an afterthought.

The Common Failure Modes
There are three archetypal ways battery scale-up fails, and they are worth naming explicitly because they are all avoidable with the right upfront investment.
The rush to production. A start-up raises a Series A based on promising coin cell data, skips the pilot stage to save time and money, and commissions a production line that cannot produce cells meeting specification. The root cause is almost always a process parameter that was never properly characterized - coating adhesion, electrolyte wetting time, or formation protocol. The fix requires tearing down the production line and starting over at pilot scale, at multiples of the original cost.
The endless pilot. The opposite failure mode: a team that cannot commit to freezing the process, perpetually tweaking parameters in search of marginal performance improvements while burning cash and missing market windows. Pilot lines are for process development, not product optimization. The discipline to freeze - to say "this is good enough to produce at scale" - is a leadership decision, not an engineering one.
The integration gap. Individual equipment pieces perform to specification, but the interfaces between them create problems: a coater that runs faster than the downstream calender, a winding machine whose tension profile does not match the electrode adhesion achieved on the pilot line, a formation system whose data infrastructure cannot handle the throughput from the assembly line. Solving these integration problems after equipment has been installed is exponentially more expensive than designing for them upfront.

The Role of an Integrated Equipment Partner
One structural shift that has quietly reshaped battery manufacturing over the past decade is the rise of integrated equipment suppliers - companies that provide not just individual machines but complete production systems, from slurry mixing through formation and grading, backed by process engineering support.
This model addresses the integration gap at its root. When a single partner owns the equipment specification, the process design, and the system integration, the interface problems that plague multi-vendor projects largely disappear. The partner has already validated the coating-to-calendering-to-slitting workflow on its own pilot line. It knows the formation protocol that works with the electrolyte filling system it supplied. And when something goes wrong, there is one throat to choke.
TOB NEW ENERGY exemplifies this integrated model. With 24 years of battery equipment engineering experience and a product portfolio spanning electrode preparation, cell assembly, formation and grading, battery testing, and battery materials, the company delivers complete turnkey production lines - not collections of machines from different suppliers. Its project portfolio includes a 20 MWh automated pouch cell production line delivered to a European client, sodium-ion battery lab lines, and supercapacitor pilot lines across multiple continents. The common thread across these projects is that TOB did not just ship equipment; it delivered a working manufacturing capability, validated on its own pilot infrastructure before commissioning on the customer's floor.
For battery start-ups making their first transition from lab to production, this integrated approach can mean the difference between shipping cells on schedule and spending an additional six months debugging equipment interfaces on a factory floor in a different time zone. It is also why the question "which equipment supplier?" is increasingly being replaced by a more strategic question: which manufacturing partner?

The journey from coin cell to gigafactory is not linear. It is three distinct engineering challenges wearing the same battery label. The researchers who develop the chemistry, the process engineers who freeze the manufacturing parameters, and the production teams who optimize for yield and throughput are solving different problems with different tools and different measures of success.
The companies that cross these transitions successfully are not necessarily the ones with the best chemistry. They are the ones that recognize - early, and with the appropriate humility - that making one battery is a science experiment. Making a million identical batteries is an engineering discipline.
