HRB Connector Unveils Full-Series Certified PCB Connectors for Automotive, Industrial & Energy Storage Global Markets

The global PCB connector market is projected to hit USD 38.9 billion by 2032 with an 8.2% compound annual growth rate, driven by surging uptake in electric vehicles, industrial automation, renewable energy storage, and smart household appliances. Design engineers and procurement managers worldwide face consistent pain points: unstable signal transmission, insufficient flame retardancy, poor temperature resistance, and non-compliant interconnects that trigger costly equipment downtime and product recalls.

As a certified professional connector manufacturer founded in 2010, Shenzhen Haiyuncheng Electronics Co., Ltd. (branded HRB / HRBCN) [https://www.hrb-connector.com/] has built a two-decade track record of manufacturing standardized and custom PCB connectors engineered to eliminate these industry pain points. HRB's PCB connector portfolio centers on the industry-standard RAST 5 series with 5.0mm pitch screw terminal designs, alongside RAST 2.5 pin headers, IDC PCB connectors, and wire-to-board PCB terminals. All variants comply with IEC 60335-1 glow wire testing, UL94V-0 flame resistance, and global automotive safety certifications, positioning HRB as a trusted one-stop interconnect supplier for OEMs, system integrators, and component distributors across Europe, North America, Southeast Asia, and Australia.

HRB PCB Connector [https://www.hrb-connector.com/pcb-connector.html] Core Product Advantages & Technical Expertise

Image: https://www.globalnewslines.com/uploads/2026/07/f084f32e89d0573191eabd69463d0726.jpg

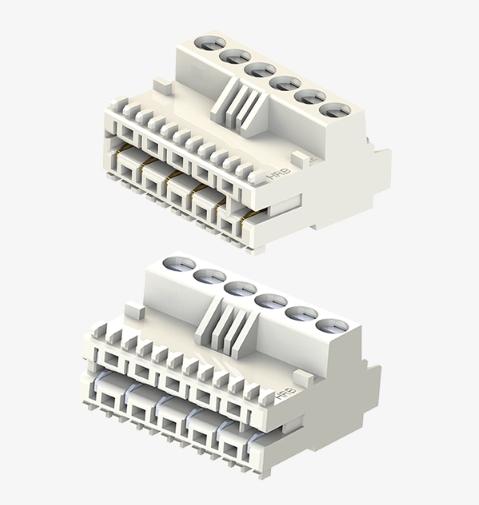

Standardized RAST 5 PCB Connector Series Specifications

HRB's flagship RAST 5 PCB screw terminal connectors form the backbone of its PCB product line, split into direct-mating and indirect-mating models to match diverse PCB assembly workflows:

Direct PCB mating series (M5035/M5036/M5037): Plug directly onto printed circuit boards without intermediate headers, supporting 2-6 pole configurations

Indirect mating series (M5038/M5039/M5040/M5041/M5042): Pair with matching tab headers for modular assembly, equipped with internal locking, foolproof keying, and optional handle latches for easy disassembly

All RAST 5 PCB connectors share unified technical parameters validated via CNAS-accredited internal laboratories:

Electrical performance: 6A-10A DC max current, 250V AC/DC rated voltage, 1500V AC/min withstand voltage, maximum 10m ohm contact resistance

Operating environment: Wide temperature range of -40 degrees C to +120 degrees C, stable performance under continuous thermal cycling

Material compliance: UL94V-0 Nylon66 housing, tin-plated phosphor bronze terminals, nickel-plated brass clamps, zinc-plated steel screws; GWT 750 degrees C per IEC 60335-1

Wire compatibility: Supports stranded wires (0.14-2.5mm / AWG26-14) and solid wires (0.14-4.0mm / AWG26-12)

Foolproof design: Custom coding options prevent mis-mating during mass production assembly, eliminating human error in automated wiring lines

Manufacturing Strength & Quality Control

Founded in 2010, HRB operates two fully equipped mainland China production bases with complete vertical manufacturing workflows, a core differentiator separating its PCB connectors from generic offshore alternatives:

Precision production equipment: 60+ Japan & Taiwan high-speed stamping machines, 50+ horizontal/vertical injection molding machines, 120+ automated optical inspection (AOI) units for 100% dimensional and appearance screening

Expert engineering workforce: 60+ automotive electronics engineers, 40+ industrial & energy storage engineers, 80+ dedicated QC specialists with average 6-8 years automotive industry experience

Zero-defect quality framework: Seven integrated quality management systems, ISO/IEC 17025 CNAS-certified testing laboratory (CNAS L16579) for independent electrical, thermal, vibration, and aging testing

Full pre-shipment inspection: Every PCB connector batch undergoes final dimensional, electrical, and packaging audits before global shipment to avoid defective deliveries to overseas clients

This in-house manufacturing and testing capacity delivers consistent batch-to-batch uniformity, a critical trust signal for international buyers sourcing PCB connectors for safety-critical automotive and industrial equipment.

Global Authoritative Certifications

All HRB PCB connectors carry mandatory and voluntary global certifications required for cross-border sales, removing regional regulatory barriers for distributors and OEM manufacturers:

Quality management: ISO 9001:2015, ISO 14001:2015, ISO 45001 occupational health & safety, ISO 27001 information security

Automotive industry standards: IATF 16949:2016, USCAR-2, USCAR-17

Safety compliance: UL, cUL, VDE, LV214, IEC 60335-1 glow wire test, RoHS & REACH environmental compliance

Laboratory accreditation: CNAS ISO/IEC 17025 independent testing certification, enabling third-party recognized test reports for global customs and client audits

Cross-Sector Industrial Applications & Custom PCB Connector Solutions

Image: https://www.globalnewslines.com/uploads/2026/07/08d3fe5ada1e3c6247dccb75f725d1ec.jpg

Wide-Ranging End-Use Industry Scenarios

HRB PCB connectors are engineered for universal deployment across six high-growth vertical markets, demonstrating real-world field experience to strengthen Google E-E-A-T credibility:

Household Smart Appliances : RAST 5 PCB terminals are widely integrated into heat pumps, central air conditioning, water heaters, washing machines, and refrigerators. The low-locking, tool-free mating design accelerates factory assembly lines, while high-temperature resistant Nylon66 housing withstands long-duration appliance operation.

Automotive Electronics & EV Systems : Both RAST 2.5 pin headers and waterproof PCB connector variants power vehicle control panels, battery management systems (BMS), charging modules, and interior electronic components. Anti-vibration terminal structures maintain stable connection under road shock and temperature fluctuations.

Industrial Automation & Factory Equipment : PCB screw terminals connect PLC control boards, servo motor drives, elevator control panels, and robotic wiring harnesses. High insulation resistance eliminates signal interference in dense industrial electrical cabinets.

Energy Storage & Renewable Power : Compact PCB connectors support wiring within wind energy inverters, containerized energy storage systems, and solar power control units, meeting high-current and long-term outdoor reliability requirements.

Medical Technology Equipment : RoHS-compliant, low-contact-resistance PCB interconnects are used in diagnostic and monitoring medical devices, adhering to strict low-contamination electrical standards for clinical hardware.

Agricultural Machinery & Telecom Infrastructure : Rugged PCB header variants withstand dust, humidity, and vibration in farm equipment control modules and data center server power distribution boards.

Full Custom PCB Connector Development Services

HRB delivers end-to-end custom PCB connector engineering for OEM clients with unique design requirements, supported by a mature project management system:

Digital pre-development: Rapid CAE 3D simulation reviews to validate mechanical structure, electrical performance, and thermal tolerance before mold opening

Dedicated production lines: Exclusive stamping and injection molding cells for custom PCB connector batches to avoid production scheduling delays

Flexible supply chain coordination: Streamlined raw material procurement to shorten custom order lead times

Complete project tracking: Specialized project managers assigned to each custom order with performance-based accountability systems

Customization scope: Custom pole counts, pitch sizes, housing colors, locking mechanisms, terminal plating, private-label packaging, and specialized PCB mounting dimensions

The company's global sales team-with 20+ years of cross-border marketing experience-coordinates all custom project communication, delivering timely technical feedback and quotation support for clients across North America, Europe, Asia, and Africa.

Global Sales Support & Client Trust Advantages

Image: https://www.globalnewslines.com/uploads/2026/07/fe3cb34e5c190a3dbf68768924381026.jpg

Under the framework of Global Sales Support & Client Trust Advantages, HRB boasts a complete global sales and logistics system catering to PCB connector purchasers all over the world; domestically, it operates ten specialized sales branches throughout Chinese mainland to serve local appliance and automotive manufacturers, while its overseas business relies on two authorized regional distributors covering core export markets together with exclusive dedicated overseas sales account managers for direct client communication, and the brand also offers diversified flexible payment options including T/T wire transfer, sight L/C, PayPal and Western Union to fit varying local financial habits of buyers, alongside well-controlled delivery cycles where standard in-stock PCB connector items can be dispatched within 3 to 5 days and mass custom non-stock orders finish production in 10 to 15 days to efficiently meet customers' urgent restocking needs.

HRB delivers full-lifecycle after-sales and technical services for all PCB connector purchases [https://www.hrb-connector.com/service.html] to sustain stable long-term cooperation with partners, with its professional R&D engineering team able to offer wiring schematic guidance, PCB layout matching recommendations and fault diagnosis for all interconnection performance problems, permanent technical consulting available for every released PCB connector product line and quick replacement solutions provided for confirmed production defects, plus a multilingual global sales team that promptly addresses overseas distributors and OEM clients' questions about technical parameters, product certifications and logistics arrangements; independent feedback from automotive, smart home and industrial system integrators based in the United States, Germany and France continuously recognizes HRB PCB connectors for their reliable performance amid thermal and mechanical stress, as well as the brand's efficient technical response and sound logistics service system.

HRB PCB Connectors: Certified, Customizable Interconnects for Global Electronics Manufacturing

Against a backdrop of rising global demand for high-reliability PCB interconnects across automotive, industrial automation, energy storage, and smart appliance sectors, HRB's full-series PCB connector portfolio stands out as a compliant, cost-effective solution for international procurement teams and design engineers.

Backed by 16 years of manufacturing expertise, a cross-disciplinary automotive-focused engineering team, CNAS-certified testing labs, and comprehensive global safety certifications, HRB satisfies every pillar for industrial electronics content: verifiable hands-on manufacturing experience, deep electrical interconnect technical expertise, authoritative third-party certification credentials, and transparent, client-centric service policies that build long-term trust with global buyers.

Image: https://www.globalnewslines.com/uploads/2026/07/430f0a2474960c96ce35ee83bfa61292.jpg

Beyond standardized RAST and IDC PCB connectors, HRB's flexible custom development service addresses unique hardware design challenges for OEMs seeking differentiated interconnect solutions. With fast lead times, diverse payment options, and a worldwide sales distribution network, the company delivers a complete one-stop connector product range including wire-to-wire/wire-to-board connectors, IP67/IP68 waterproof connectors, fully insulated quick disconnect terminals, and IDC terminals alongside its flagship PCB connector lineup.

Engineering buyers, component distributors, and equipment manufacturers can access full PCB connector datasheets, certification documents, and custom project consultation via HRB's official website.
