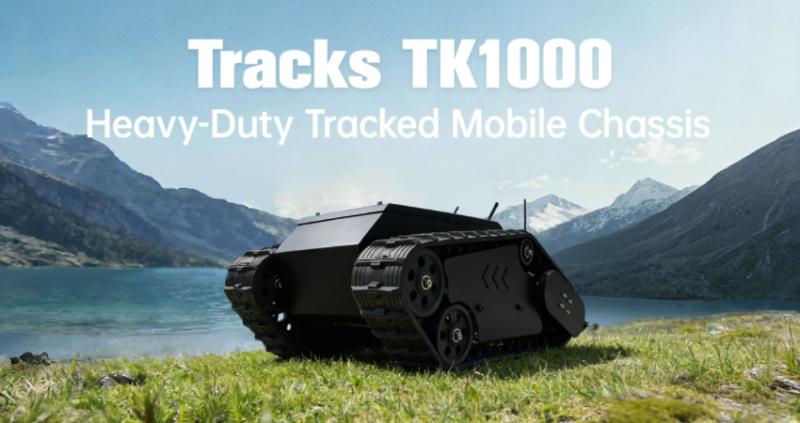

Tracks TK1000 Tracked Robot Chassis | Heavy-Duty All-Terrain UGV Platform
1. Introduction
The Tracks TK1000 universal tracked robot chassis features a high-strength carbon steel body combined with a Christie + Matilda balanced suspension shock absorption system, providing outstanding durability, stability, and terrain adaptability.
Designed for high-load and all-terrain operations, the Tracks TK1000 can easily climb stairs and navigate through buildings, outdoor off-road environments, and complex terrains. With open communication interfaces and secondary development support, it is ideal for security, agricultural, firefighting, inspection, and robotic development applications.
2. Key Features (Detailed)
Outstanding Off-Road Capability
Equipped with a high-torque drive system and large tracked structure for superior mobility on mud, gravel, slopes, and rugged terrain.
High-Payload Stair Climbing
Supports stable stair climbing and obstacle crossing under heavy-load conditions, with a maximum climbing angle of 40 degrees (unloaded).
Composite Suspension System
Features a Christie + Matilda balanced suspension system for enhanced shock absorption and terrain adaptability.
Secondary Development Support
Provides Serial / CAN interfaces and communication protocols for customized development and host computer control.
High-Precision Motor Encoder
Industrial-grade 1000-line incremental photoelectric encoders ensure precise motion control.
All-Terrain Track Design
150mm reinforced rubber tracks with embedded Kevlar tensile layer for durability and traction.
Industrial-Grade Structure
Carbon steel chassis with electrostatic coating and IP65 protection rating for harsh environments.
3. Applications
* Stair-climbing robots
* Off-road robotic platforms
* Security patrol robots
* Agricultural spraying robots
* Disinfection robots
* Firefighting robots
* Research & education platforms
* Unmanned ground vehicle (UGV) development
4. Technical Specifications
CATEGORY
ITEM
SPECIFICATION
Machine Parameters
Dimensions
L1000 times W790 times H430 mm
Weight
Approx. 145 kg
Operating Temperature
-20 ~ +60
Motors
48V1000W times 2 Brushless DC Motors
Encoder
Industrial Incremental Encoder 1000-line times 2
Body Material
Carbon Steel with Electrostatic Coating
Track Material
150mm Rubber Track with Kevlar Reinforcement
Suspension
Christie + Matilda Balanced Suspension
Protection Rating
IP65
Speed
0 ~ 5.4 km/h
Max Climbing Angle
40 degrees (Unloaded)
Rated Payload
100 kg
Max Obstacle Clearance
180 mm
Endurance
4 Hours
Communication Interface
Serial / Standard CAN
Control System
Remote Control
Standard 2.4G Remote
Control Distance
200m LOS
Expansion Support
Long-range RC, 1080P Video, Mesh, 4G/5G
Control Mode
Open-loop / PID Closed-loop
Data Interface
Serial / CAN
Secondary Development
Communication Protocol Provided
Battery System
Battery
48V60Ah Lithium Battery
Protection
Overcharge / Over-discharge Protection
Charger
220V Aviation Plug Charger
Power Output
48V10A / 24V5A / 12V5A
5. FAQ
1. Can the Tracks TK1000 climb stairs?
Yes. It supports stair climbing with a maximum climbing angle of 40 degrees (unloaded).
2. Does it support secondary development?
Yes. Serial / CAN interfaces and communication protocols are provided.
3. Does it support real-time video transmission?
Yes. It supports 1080P video transmission, Mesh networking, and 4G/5G control expansion.
4. What is the maximum payload capacity?
The rated payload is 100 kg with self-rotation capability.
5. Is it suitable for outdoor environments?
Yes. The IP65-rated chassis and reinforced track system are designed for harsh outdoor environments.
For more details, please visit page: Stair-Climbing Robots Tracks TK1000 Heavy-Duty Tracked Tank Chassis UGV [https://www.viewprouav.com/product/stair-climbing-robots-tracks-1000-heavy-duty-tracked-tank-chassis.html]or contact us: info@viewprotech.com
Media Contact
Company Name: ViewproUAV
Email:Send Email [https://www.abnewswire.com/email_contact_us.php?pr=tracks-tk1000-tracked-robot-chassis-heavyduty-allterrain-ugv-platform]
Country: China
Website: https://www.viewprouav.com/
Legal Disclaimer: Information contained on this page is provided by an independent third-party content provider. ABNewswire makes no warranties or responsibility or liability for the accuracy, content, images, videos, licenses, completeness, legality, or reliability of the information contained in this article. If you are affiliated with this article or have any complaints or copyright issues related to this article and would like it to be removed, please contact retract@swscontact.com
This release was published on openPR.
Permanent link to this press release:
Copy
Please set a link in the press area of your homepage to this press release on openPR. openPR disclaims liability for any content contained in this release.
You can edit or delete your press release Tracks TK1000 Tracked Robot Chassis | Heavy-Duty All-Terrain UGV Platform here
News-ID: 4528182 • Views: …
More Releases from ABNewswire

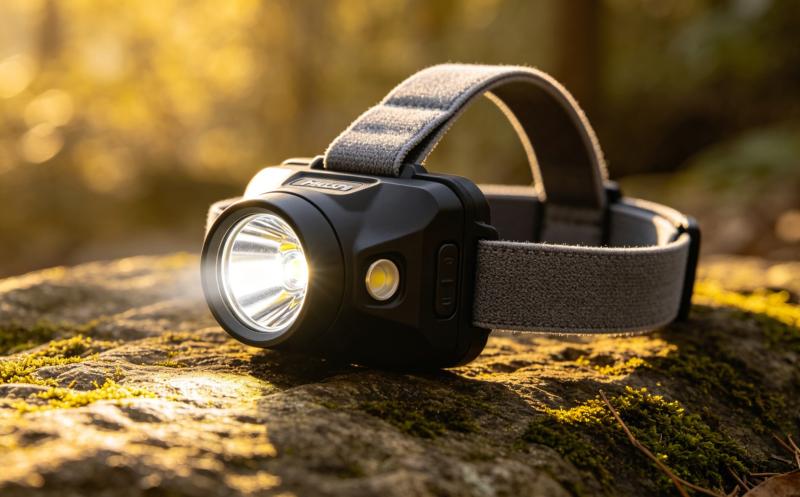

Mechanical distinctions between IPX4, IPX5, and IPX7 standards to optimize procu …
