What Is a Bayonet Fuse and How Does It Protect a Pad-Mounted Transformer?

Suppose a great burst of electricity struck your transformer, and there was nothing to stop it. That is a disaster waiting to occur.

Power outages do not tend to begin with a big bang. In the vast majority of cases, it is a minor fault that goes unnoticed. A tiny overload. A short circuit. And now, an expensive transformer is in danger.

That is where a bayonet fuse slips in.

It is very simple, small and easily replaceable, yet it has a gigantic role to play in guarding pad-mounted transformers. In its absence, a minor electrical problem can lead to a significant power loss or costly destruction.

This guide will cover what a transformer bayonet fuse is, how it works, and why it is more important than most people believe.

What Is A Bayonet Fuse?

A bayonet fuse is an electrical safety device, typically found in pad mounted transformers. It is named after its shape. It resembles a long tube which is inserted, as though it were a bayonet blade being attached to a rifle. It enters at a tremendous speed, grips and gets out with the same speed.

The task of this fuse is not very difficult. It is a device that measures the movement of electric current. At a normal current, all is well and the electricity flows through. However, when something fails and the current spikes excessively, the fuse melts and breaks the connection. The fault which has just occurred is now out of the way of the transformer.

The best thing about a transformer bayonet fuse is that you can tell when it has blown. Most of them have a small viewing indicator that comes out when the fuse breaks. There is no necessity to open the transformer tank and to guess what has happened. You only have to look and you will know at once.

How Does It Actually Work?

Within the fuse tube, it contains a fine piece of metal. Electricity flows through it during normal operation. That component is intended to manage a fixed current. Exceed that amount, and the element will overheat, melt down, and short-circuit.

As soon as the circuit is broken, no current can pass. The fault is prevented before it can proceed on into the transformer or equipment connected to it. It is quick, automatic and does not need human intervention at the time.

What Is A Bayonet Fuse Holder?

The bayonet fuse holder is what actually secures the fuse tube within the transformer. Imagine it as a socket. The bulb is the fuse. The holder will ensure that it is safe, connected, and in place.

A good fuse holder is designed to withstand heat, moisture and the outdoors environment that pad-mounted transformers have to contend with on a daily basis. It is also easy to replace. When a fuse blows, a technician is able to pull out the old tube and insert a new one in the field, without emptying the transformer or requiring the services of a complete maintenance crew.

Always ensure that you always select a fuse holder which fits the voltage and current ratings of your system. A holder mismatch can cause the fuse to either trip prematurely or fail to trip at all. Both are unfavorable.

Why Pad-Mounted Transformers Need This Protection?

Pad-mounted transformers are the green metal boxes that you see on concrete pads in residential areas, parking lots, and business districts. They take high voltage power from utility lines and reduce it to the level that can be used by homes and businesses.

Because they handle a lot of power and sit outside in all kinds of weather, they need solid protection. Here is why the transformer bayonet fuse is such a good fit for this job.

Fast Fault Response

If something inside the transformer fails, like a winding short, the fuse blows within milliseconds. This keeps the fault from spreading to the rest of the power grid.

Overload Protection

When too many devices pull power at once, current goes up. The bayonet fuse catches this before the transformer overheats and gets damaged.

Easy Field Replacement

Utility workers can swap a blown bayonet fuse right on site. No heavy equipment, no extended downtime. This is a big deal when a neighborhood is waiting for power to come back on.

Clear Visual Signal

The trip indicator tells you right away that the fuse has opened. Faster diagnosis means faster repairs.

The Two Main Types Of Bayonet Fuses

Not every bayonet fuse is built the same way. There are two types you will run into most often.

Current-Limiting Bayonet Fuses

These are the most common type in modern systems. They limit how much fault current flows before cutting the circuit. This means less stress on the transformer and the connected equipment. They are fast and very effective at reducing damage.

Expulsion-Type Bayonet Fuses

These work by pushing out arc gases to break the circuit. They are older technology and still found in some setups. They cost less upfront, but they allow more fault current to flow before tripping. For most modern installations, current-limiting types are the better choice.

Where To Get Quality Bayonet Fuses?

The quality of the fuse matters. A cheap or off-spec fuse might not trip at the right time. And a fuse that does not trip when it should means your transformer is exposed to damage that could have been avoided.

For reliable bayonet fuses and compatible holders that meet utility-grade standards, check out the selection at Ahelek's fuse catalog [https://www.ahelek.com/fuse/]. They carry a solid range of transformer protection components built for real-world field conditions.

Final Thoughts

A bayonet fuse may look small, but it does a big job.

It protects transformers from damage. It prevents outages. And it keeps power systems running smoothly.

Whether you are a utility professional, an electrician, or just someone who likes understanding how things work, knowing your transformer bayonet fuse and bayonet fuse holder basics puts you ahead of most people. And when it is time to buy, go with quality. The transformer you protect today is the one that keeps the lights on tomorrow.

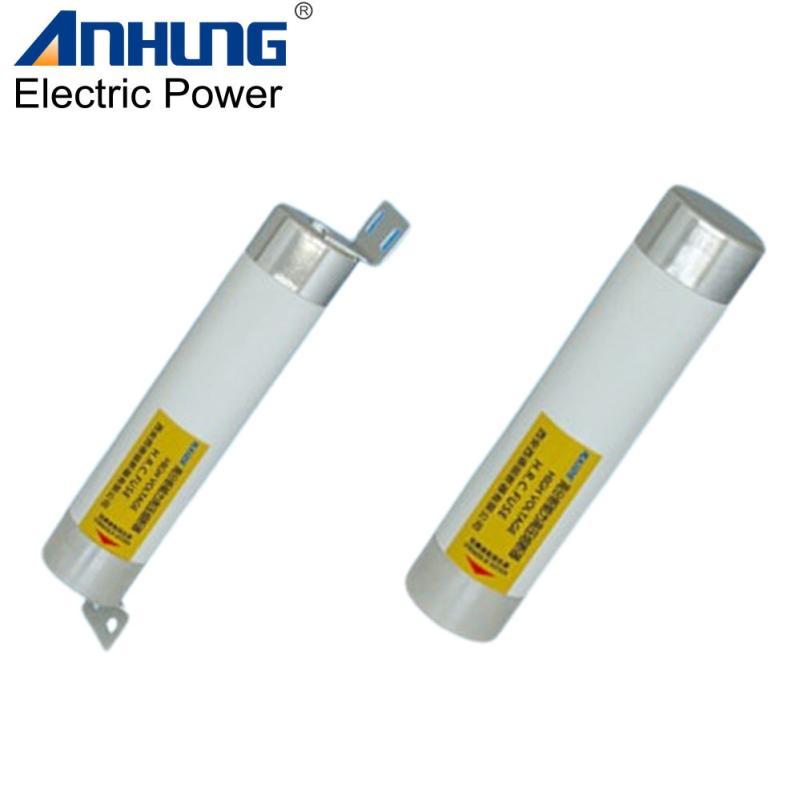

Image: https://www.abnewswire.com/upload/2026/04/71e952ff9c16130681a517d304485daf.jpg
