Carbon Arc Gouging: Sculpting Steel with Precision and Power

Imagine sculpting steel not with a chisel, but with a 3500°C electric arc. That's the power of carbon arc gouging(https://www.keygree.com/arc/)-a technology that melts and blows away metal with surgical precision, transforming how industries shape and repair steel. Whether it's beveling thick steel plates or repairing weld defects, this special process that can melt and blow away metal is indispensable.

Carbon arc gouging works like a high-tech welding torch: it uses an electric arc to melt metal, then a powerful jet of air blows the molten metal away-like a hot knife through butter, but with precision control.

A carbon or graphite rod serves as the electrode, generating a high-temperature arc between itself and the workpiece. The arc temperature can reach 3000-3500°C, sufficient to rapidly melt various metal materials.

Simultaneously, compressed air is ejected at a pressure of 0.5-0.6 MPa, blowing the molten metal away from the base material, thereby forming grooves of the desired shape and size on the metal surface.

This process differs fundamentally from traditional methods that rely solely on mechanical cutting. It achieves precise metal removal by controlling heat input and air blowing force.

Carbon arc gouging can process both ferrous and non-ferrous metals, including stainless steel, aluminum, copper, and their alloys. It is particularly noteworthy that this process utilizes high-temperature melting rather than oxidation to remove metal, thus having a relatively small impact on the chemical properties of the processed material.

Technical challenges

Despite the widespread application of carbon arc gouging technology, traditional equipment faces numerous practical challenges in industrial practice, severely impacting production efficiency and the working environment.

Traditional carbon arc gouging equipment must be placed close to the work site, leading to difficulties in relocation and limited working radius. On large steel structure or shipbuilding sites, operators frequently need to repeatedly move the equipment, consuming significant time and physical effort.

During operation, the close proximity of operators to the equipment exposes them to high temperatures, noise, dust, and arc radiation, posing a threat to worker health. These environmental problems are particularly pronounced in enclosed spaces such as ship cabins and container interiors.

Noise, fumes, and dust generated during carbon arc gouging are major sources of industrial pollution. This necessitates substantial investment in environmental control and worker protection in many factories, increasing production costs.

Inaccurate process parameters also make it difficult to control the shape of the gouged grooves, frequently resulting in quality issues such as asymmetrical grooves and uneven width and depth. These defects directly affect subsequent welding quality, increasing rework rates.

Solution

Addressing the multiple challenges of carbon arc gouging in industrial applications, the new generation of carbon arc gouging equipment offers a systematic solution through technological innovation.

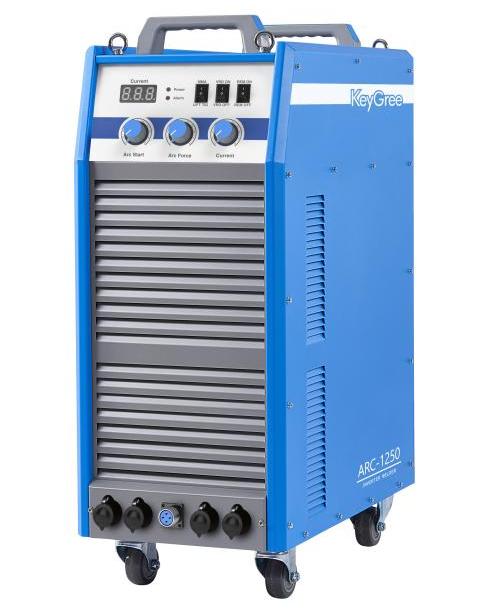

With the ARC-1000/1250, operators can now control the gouging process from up to 15 meters away-stepping out of the heat, noise, and dust, and into safer, more comfortable working conditions. Operators can precisely control the equipment from a safe distance, no longer limited by the space constraints of the equipment itself.

This system features multi-functional integration, simultaneously supporting submerged arc, carbon arc gouging, and MMA (manual arc welding) capabilities. This means workers no longer need to switch between multiple devices, significantly improving operational flexibility.

For harsh industrial environments, the equipment achieves IP21S protection, sufficient to withstand severe working conditions. A 100% duty cycle means the equipment can operate continuously at high current for extended periods without waiting for cooling.

Crucially, even with the output cable extended to 100 meters, the equipment maintains normal and stable operation. This feature greatly facilitates operations on large workpieces and in complex spaces.

Keygree's ARC-1000/1250 carbon arc gouging equipment(https://www.keygree.com/arc-500z-arc-630-arc-1000-arc-1250-product/), equipped with a 15-meter remote control function, offers unique advantages that allow it to expand beyond traditional applications into more specialized and demanding fields.

High-risk environmental environments are a natural application scenario for this equipment. In nuclear power plant equipment maintenance, operators can handle metal components in radioactive areas from a safe distance, minimizing radiation exposure.

In chemical equipment repair, gouging operations can be performed away from flammable and explosive environments, significantly reducing safety risks.

High-precision welding repair also benefits from this equipment. In the precision repair of aerospace components, the 15-meter remote control distance allows operators to perform fine operations from the optimal observation angle, improving repair accuracy.

Application scenarios

Deep application in the field of shipbuilding:

Shipbuilding is one of the most widespread application areas of carbon arc gouging technology. From beveling preparation before welding hull sections to the repair of weld defects, carbon arc gouging plays an irreplaceable role. In traditional shipbuilding operations, workers perform carbon arc gouging in confined compartments, facing severe challenges of high temperatures, high noise levels, and dust pollution. The remote control function of the ARC-1000/1250 provides a revolutionary solution to this scenario-operators can precisely control the gouging operations inside the compartment from a relatively comfortable and safe environment outside the compartment via a 15-meter control line.

A more advanced application is combining the ARC-1000/1250 equipment with semi-automatic gouging carriages or lightweight robotic arms to achieve automated gouging operations on large flat or regular curved surfaces. After introducing similar technology, a shipyard saw a 40% increase in production efficiency during root cleaning operations in the section and panel assembly workshops, while the working environment was significantly improved, with noise reduced by approximately 10% and dust reduced by 80%. This "semi-automatic air gouging" mode is particularly suitable for processing large-area beveling of straight sections of ship hulls. Compared with traditional manual operation, it is not only more efficient, but also produces more uniform and consistent processing quality.

Large steel structure and bridge engineering:

Thick plate welding in large steel structures and bridge projects often requires deep beveling to ensure weld penetration. Traditional carbon arc gouging faces challenges such as rapid carbon rod consumption and difficulty in controlling the groove shape when machining U-shaped bevels exceeding 20mm in depth. The ARC-1000/1250's high current output (up to 1250A) allows for the machining of deeper bevels in a single pass, reducing the number of layer-by-layer gouging operations and improving work efficiency.

In high-altitude or outdoor working environments, the value of remote control functionality is even more pronounced. For example, in on-site welding repair of bridge steel box girders, operators can control operations in confined spaces or high-risk locations from a safe platform, avoiding the risk of falls from heights. Furthermore, the equipment's strong adaptability to voltage fluctuations allows it to operate stably under temporary power conditions in the field, expanding the application scope of carbon arc gouging technology in outdoor engineering.

Conclusion

Carbon arc gouging, a classic metalworking technology, is being revitalized in the era of digitalization and automation through innovative equipment such as the Keygree ARC-1000/1250 and its 15-meter remote control box. This innovation not only solves the problems of harsh working environments, high operational difficulty, and low efficiency faced by traditional carbon arc gouging, but also expands its application scenarios in shipbuilding, pressure vessels, large steel structures, and even emerging fields.

From a broader perspective, the evolution of carbon arc gouging technology reflects several key trends in modern manufacturing: deepening human-machine collaboration-optimizing the division of labor and cooperation between humans and machines through remote control, semi-automation, and automation technologies; environmentally friendly transformation-significantly reducing the impact on operators and the environment while maintaining process efficiency; and intelligent upgrading-achieving process optimization and quality control through data collection and analysis. These trends are not only reflected in the specific technology of carbon arc gouging but also permeate the entire modern manufacturing technology system.

Ready to transform your metalworking operations? Discover how Keygree's ARC series can help you work smarter, safer, and more efficiently. Visit www.keygree.com to explore our full range of welding and cutting solutions.
