Beyond the Arc: How ACDC Twin-Wire SAW Solves Modern Fabrication's Toughest Challenges

In heavy fabrication, the equation has become unforgiving: faster production, zero defects, and lower cost - all at once. Single-wire submerged arc welding (SAW), the industry workhorse for thick sections, can no longer deliver on all three. It forces a trade-off: high productivity comes with excessive heat input and distortion; precision comes at the cost of speed. The ACDC Twin-Wire Submerged Arc Welding System(https://www.keygree.com/welding-cutters/) was designed to break this deadlock - not by replacing SAW, but by fundamentally re-engineering how arc energy is applied.

The Core Principle: Synergy, Not Just Addition

At its heart, the twin-wire SAW system is a masterclass in controlled energy application. Unlike conventional setups, it utilizes two independently controlled welding wires fed into a single molten weld pool. This is where the revolutionary ACDC configuration comes into play. The system typically pairs a DC power source for the leading wire with an AC power source for the trailing wire.

DC Leader - for penetration and control
The leading wire, powered by DC, creates a deep, stable arc that defines the weld root and drives travel speed. It establishes the keyhole and maintains directional stability - critical for root pass integrity.

AC Follower - for deposition and refinement
The trailing wire, powered by AC, operates in the thermal wake of the leader. The alternating current's natural zero-crossing reduces average arc force and heat input, allowing high-volume filler metal deposition without compounding distortion. Its stirring action also promotes degassing and helps impurities float to the surface - a key factor in achieving X-ray quality welds.

This dual-arc synergy, orchestrated by a central control system in the welding tractor, creates a transformative effect. The trailing wire's arc is magnetically and thermally influenced by the leader, allowing for unprecedented control over the weld bead's shape, penetration profile, and thermal cycle. The welding tractor is not merely a carriage; it is the command center, precisely synchronizing wire feed speeds, voltage, and the critical inter-wire spacing and phase timing (in AC), translating complex programming into flawless execution.

Solving the Impossible Trinity: Speed, Quality, and Control

The ACDC Twin-Wire SAW system directly attacks the most persistent challenges in heavy welding:

The Productivity-Distortion Dilemma
In shipbuilding, wind tower fabrication, and other large-scale welding operations, speed is essential - but traditional single-wire SAW buys speed at the cost of excessive heat input and distortion, triggering costly downstream rework (flame straightening, mechanical forming).

Twin-wire SAW decouples heat input from deposition rate. By distributing arc energy across two independently controlled wires, it achieves 150-200% higher deposition rates at the same amperage, with a lower, more diffuse heat profile. The result: faster travel speeds without proportional distortion - a decisive advantage for maintaining dimensional integrity in massive structures.

The Weld Integrity Challenge in Critical Vessels: For pressure vessel and boiler manufacturers, weld integrity is non-negotiable. Defects like porosity, slag inclusions, or unstable penetration in circumferential seams can lead to catastrophic failures. The dynamic stirring action of the twin-arc system, especially with the AC trailing wire, promotes a cleaner, more homogeneous weld metal. Furthermore, the process offers superior tolerance to fit-up gaps and joint misalignment-common in large-diameter vessel fabrication. The leading wire bridges the gap, while the trailing wire fills and caps, ensuring consistent, X-ray quality welds with exceptional mechanical properties, reducing the need for costly repairs and rework.

The Alloy Cladding Efficiency Problem: In the oil & gas and chemical processing industries, cladding large interior surfaces of vessels or pipes with corrosion-resistant alloys (e.g., stainless steel, Inconel) is a necessary but expensive process. Efficiency and dilution control are critical. Twin-wire SAW excels here. It can be configured for strip cladding or with two alloy wires. The process achieves an extremely high deposition rate with remarkably low dilution levels (often below 10%), as the trailing wire melts primarily into the already-deposited clad layer from the leader. This preserves the alloy's chemistry, enhances corrosion resistance, and drastically reduces the amount of expensive clad material required, optimizing both material cost and production time.

Expanding the Application Horizon

Infrastructure & Bridge Building: For welding thick girders and box sections, the system ensures deep penetration and high-strength welds with minimal angular distortion, critical for maintaining structural alignment.

Pipeline Construction (Onshore): In double-jointing facilities or for large-diameter, thick-wall pipelines, the system can dramatically increase the welding speed for the critical root and hot passes in combination with internal welders, while guaranteeing defect-free seams.

Mining & Heavy Equipment: Fabrication of excavator arms, mining truck frames, and crusher bodies requires welds that can withstand extreme impact and fatigue. The refined microstructure and excellent fusion profile of twin-wire SAW welds deliver the necessary toughness and durability.

Renewable Energy Expansion: Beyond wind towers, the fabrication of hydroelectric turbine components and next-generation geothermal well casing-all involving thick, high-strength steels-benefits from the system's blend of speed and superior weld metallurgy.

The KeyGree Advantage: Precision Engineered for Industrial Demands

KeyGree understand that advanced technology is only as reliable as its execution. They commitment to welding innovation is embodied in the approach to systems like the ACDC Twin-Wire SAW. Their expertise lies not just in supplying equipment, but in delivering a complete, optimized welding solution.

The power sources are engineered for flawless synergy in twin-wire operation. The precise, responsive output characteristic of DC units ensures a stable, deep-penetrating lead arc. Keygree specially tuned AC inverters provide unparalleled arc stability at low currents, crucial for the trailing wire's performance, with adjustable frequency and wave balance control to optimize bead shape and flux compatibility.

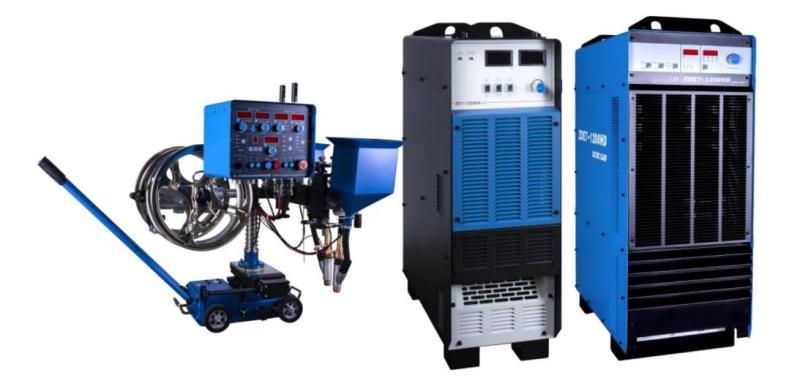

The KeyGree welding tractor is designed for industrial endurance and intelligence. It features robust construction for precise wire alignment and a user-friendly interface that allows operators to easily set and store complex parameter sets for different joint configurations and materials. Keygree focus on system integration, ensuring seamless communication between the power sources, wire feeders, and tractor, eliminating guesswork and delivering repeatable, high-quality results shift after shift.

For manufacturers navigating the pressures of modern fabrication - tighter deadlines, zero-defect requirements, and relentless cost pressure - the ACDC Twin-Wire SAW System is not merely an equipment upgrade. It is a reconfiguration of the welding cell from a process bottleneck into a competitive asset.

By mastering the synergy of two independently controlled arcs, KeyGree enables heavy fabricators to do what single-wire SAW no longer can: weld faster, with less distortion, and at higher quality standards. In an industry where the margin between profit and loss often lies in weld productivity, this is not just a technological advance - it is a new operating baseline.
