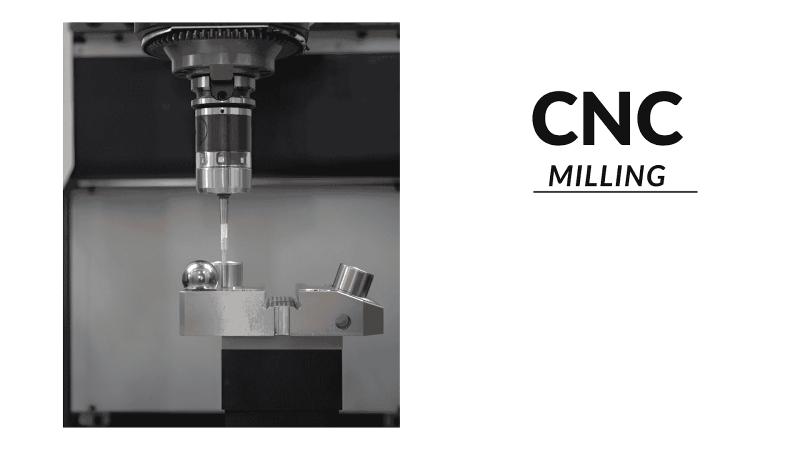

What Is CNC Milling? Process, Techniques & Applications

CNC milling is a type of CNC machining that follows computer-guided tools to cut and shape materials into precise parts. It is widely used in many industries to make accurate, tight-tolerance products with repeatable outcomes in a short turnaround.

The process begins with a CAD (Computer-Aided Design) file guiding the milling machine. The cutting tools remove material to create the final part exactly as designed.

In this article, we will cover:
• CNC milling machine operation
• Types of CNC milling machines
• Milling manufacturing process
• CNC milling operations
• Advantages of CNC milling
• CNC milling applications

What Is CNC Milling Machining?

CNC milling is a machining process that utilises computer-controlled cutting instruments to cut materials such as metal, plastic, or wood into precise components. Every cut remains accurate and consistent, as the machine obeys a programmed set of instructions (G-code). These are then translated into machine instructions using CAM software, and the production process becomes rapid, dependable, and accurate.

Milling machines come in various forms, like 3-axis and 5-axis, for more complex features. These machines can achieve tight tolerances, typically within ±0.001 in and ±0.005 in. CNC milling is practised across the aerospace, automotive, and electronics industries.

Process of Custom CNC Milling Parts Production https://proleantech.com/cnc-milling/

The CNC milling process starts with a 3D CAD layout of the part. This drawing is translated into machine-understandable instructions.

A CNC machine typically receives these instructions in G-code, which instructs the tools on how to move, how fast to cut, and how deep to cut. The machine employs a rotary cutter. This cutter removes material from a blank material to make the desired part.

Depending on the machine, it may cut at various angles and move in multiple axes to make detailed and precise components. It applies to both simple and complex components, making it suitable for both small and large quantities.

Common Types of CNC Milling Operations

CNC milling can produce various cuts, depending on the form and finish you desire for your components. Here are some of the main ones:

Face Milling
In face milling, the cutter rotates perpendicular to the workpiece surface. The cutter features several teeth, typically equipped with exchangeable inserts that produce a smooth and even surface. This is an excellent operation where a high-quality flat finish is needed.

Plain Milling
Plain milling produces horizontal flat surfaces. The cutter is moved parallel to the workpiece. The table may be fed lengthwise, crosswise, or vertically. It is a simple yet efficient method of producing uniform surfaces along the material.

Angular Milling
Flat surfaces are created at certain angles through the angular milling technique. In contrast to plain milling, the cutter is cut at a countenance. Single-angle cutters are used on a 45-degree or 60-degree surface, while double-angle cutters (v-shaped teeth) can cut at angles of 45 degrees, 60 degrees, and 90 degrees. It is most applicable for chamfers on angled parts.

Form Milling
In form milling, the parts are machined along curves or irregular edges. The cutter is designed to fit the shape you desire, which can be concave or convex. Although it is slower than conventional milling, it is ideal for complex designs and accurate curved surfaces.

Other Milling Operations
• Slot milling: It cuts slots in which the cutter is smaller than the workpiece.
• Side milling: Creates flat, vertical surfaces and cuts into the material.
• Gang milling: Works on several surfaces simultaneously using more than one cutter on the arbour. So, it saves time working on significant parts.

Types of CNC Milling Machines Available

CNC milling machines come in various designs, each designed to perform a specific task accurately. Your project size, design complexity, and intended material will determine the right machine.

Vertical Milling Machine
Vertical mills feature a straight-down spindle. The table can move on the x, y, and z axes depending on the model. The spindle remains fixed, and the table moves in turret vertical mills.

Horizontal Milling Machine
The spindle of horizontal mills is located horizontally. Some models may be rotated on the z-axis, making them 4-axis machines. These machines are ideal and work well with large parts, but are less flexible than the vertical mills.

Multi-Axis CNC Milling Machines
• 3-Axis Machines: These travel in lengths of x, y, and z.
• 4-Axis Machines: These can travel in three directions and spin around one axis. Additionally, they are an ideal fit for complex components and angled cutouts.
• 5-Axis Machines: These move in 3 directions and turn in two other directions. Ideal for intricate components with close tolerances.

Turret Milling Machine
In turret mills, the spindle can be repositioned in different planes, while the table moves horizontally and vertically.

Bed Milling Machine
The spindle of the bed mills travels up and down across the table, and the table travels across the spindle. This stable design can handle large and heavy workpieces, resulting in accurate and consistent products.

CNC Milling Applications In Modern Industries

CNC manufacturing is widely adopted in various modern industries, including aerospace, automotive, electronics, and energy.

CNC Milling Aerospace
CNC milling produces aircraft components, such as turbine blades, engine mounts, landing gear parts, and fuselage brackets, from lightweight yet strong metals like titanium and aluminium.

CNC Milling for Automotive Parts https://proleantech.com/cnc-milling-for-automotive-parts/

In the automotive industry, CNC milling is used to create cylinder heads, drive axles, suspension parts, gearboxes, and moulds for interior panels.

Agriculture
Gears, shafts, nuts, bolts, and flanges can all be made using CNC milling for agricultural machinery. It is suitable for large and small production runs.

Medical
Prosthetics and other medical components require precision and accuracy. With CNC milling, the parts are precision-produced, saving time and effort.

What are the factors that determine CNC Milling Cost?

The cost of CNC milling is dependent on various factors. For example, the time needed to machine a part is one of the significant factors. Increased milling periods occur when more material needs to be removed or when harder materials are used.

Part designs are also complex and expensive because they need special tools or additional cutting stages. The material nature and the degree of accuracy required also influence the price.

Conclusion
Overall, CNC milling is well-suited for producing high-quality parts, regardless of the design's complexity. It saves you time, keeps costs reasonable, and helps you get products to market quicker.

FAQ's
Q1: What is CNC Milling?
CNC milling is a process in which milling bits/cutters remove material from a workpiece to create cuts, grooves, and complex features.

Q2: What does CNC mean?

CNC stands for Computer Numerical Control. This means the machine follows computer instructions to guide the cutting tools accurately. So, no manual intervention is involved.
