Innovation and Reliability in Conductive Transparent Sheet Production | ChemTech Solution

ChemTech Solution is recognized as Korea's first developer and exclusive manufacturer of conductive transparent sheet, particularly tailored for carrier tape applications. The company stands out in the market by merging innovation with reliability, having pioneered this advanced material. The conductive transparent sheets feature a distinctive 3-layer structure that enhances conductivity, formability, and transparency. These products are essential in packaging precision electronic components, including semiconductors and LED parts, thereby ensuring optimal performance and protection.

Product Overview

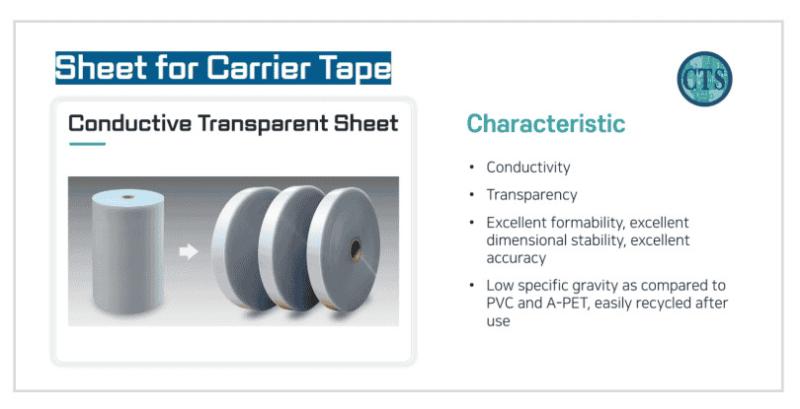

The conductive transparent sheet manufacturer series is specifically engineered for electronic component packaging that requires both conductivity and transparency. These sheets boast remarkable dimensional stability and accuracy, making them particularly suitable for the creation of carrier tapes in high-tech sectors. Their low specific gravity, in comparison to PVC and A-PET materials, contributes to their lightweight nature and environmental friendliness, allowing for straightforward recyclability post-use.

Key Characteristics and Benefits:

Excellent Conductivity: Excellent Conductivity offers stable electrical conductivity for static control, with inner and outer layers ranging from 106 to 107 Ω.

High Transparency: High transparency allows for clear visibility of packaged components, making it suitable for inspection and automation processes.

Superior Formability: Superior formability ensures excellent dimensional stability and accuracy, which in turn enhances production efficiency.

Lightweight & Eco-friendly: Lightweight and eco-friendly, this material has a lower specific gravity than conventional PVC and A-PET sheets, which allows for reduced material usage and facilitates recycling.

Product Types

Conductive Clear Sheet

Antistatic Performance: Antistatic performance is characterized by inner resistance of 106-107 Ω and outer resistance of 1010 Ω.

Use: Semiconductor, LED components

Note: Conductive coating applied

2.Conductive High Clear Sheet

Antistatic Performance: Antistatic performance measurements indicate an internal and external resistance range of 106-107 Ω.

Use: Semiconductor, LED components

Note: Conductive coating applied

Product Specifications:

The Thickness measurements are available at 0.3 mm, 0.4 mm, and 0.5 mm, with a tolerance of ±2-3%.

Width measurement ranges from 12.1 mm to 114.1 mm, with a tolerance of ±0.2 mm.

Length specifications indicate a standard dimension of 400 meters, allowing for a variation of plus one meter and no reduction in length.

If you are looking for a polystyrene conductive transparent sheet, you can find them at ChemTech Solution.

Click here If you are interested in ChemTech Solution products.

View more: Innovation and Reliability in Conductive Transparent Sheet Production.

South Korea

ChemTech Solution is recognized as Korea's first developer and exclusive manufacturer of conductive transparent sheet, particularly tailored for carrier tape applications.
