Ultimate Guide to QSFP+ and QSFP28 Compatibility: In-Depth Protocol and Physical Layer Troubleshooting

The mixture of QSFP+ and QSFP28 modules can generate troublesome problems. Network engineers often find themselves with dead ports not lighting up, unstable links with intermittent connectivity, and CRC errors that affect communication quality. The underlying issue lies in slight incompatibilities between generations of transceivers and their protocols.

Fixing such issues requires a sound understanding of protocol negotiation and physical layer interaction, rather than simply swapping out hardware. This troubleshooting approach applies first-principle methods rather than vendor-specific quirks or elaborate stories of success. This means the solutions presented will be applicable in general and rely solely on basic principles of QSFP+ and QSFP28 technology.

This will identify typical mixed QSFP+ and QSFP28 problems, network compatibility problems, and simple diagnostics - which allows networks to be reliable and cost-effective without guessing or bias.

For in-depth information, you should read QSFP+ and QSFP28 modules - BYXGD (https://fiberoptic.is/100g-qsfp28-modules/).

● What Are QSFP+ and QSFP28? Foundations of Compatibility

In the realm of high-speed data networks, the optical transceiver modules QSFP+ and QSFP28 set the standard. The two connectors share similar dimensions, at 18.4mm wide and 72mm long, and a hot-pluggable compact design, allowing them to fit into standardized QSFP ports. Because of this, QSFP28 ports will accept QSFP+ modules, ensuring backward compatibility.

The major difference between QSFP+ and QSFP28 is how their lanes are configured, which is key when comparing the two modules. QSFP+ uses four lanes at 10 Gbps each, reaching 40 Gbps total, all with modulation that relies solely on NRZ (Non-Return-to-Zero) modulation. NRZ modulation utilizes two voltage levels to represent bits of data. This modulation type is simple, but limits throughput.

QSFP28 is designed to accept speeds of 100 Gbps using only four lanes at 25 Gbps each, with modulation either by NRZ or PAM4 (4-level Pulse Amplitude Modulation). PAM4 works by coding two bits of data per symbol, using four levels of voltage. This essentially doubles the overall data transmitted per clock, however, it adds additional complexity and signal noise.

The backward compatibility of QSFP+ and QSFP28 modules occurs in the form of QSFP28 ports slowing down to QSFP+ speeds (40 Gbps). However, a QSFP+ port will not generate the speeds of QSFP28 ports and does not have the hardware for PAM4. Because of this standard, if a QSFP+ module is inserted into a QSFP28 port, for the most part, it will not work. Moving forward, knowing the differences when deploying modules makes troubleshooting issues in mixed QSFP+ and QSFP28 environments easier!

View QSFP+ and QSFP28 modules - BYXGD (https://fiberoptic.is/) for More Details

● Why Does Protocol Negotiation Fail? Diagnosing "No Light" Ports

Protocol negotiation depends upon EEPROM, a small memory chip inside either QSFP+ or QSFP28 modules. The EEPROM will hold key information for the switch module, including supported speeds, the vendor ID, and flags for backward compatibility. When plugged into a switch, the firmware running on the switch reads the information in the EEPROM to determine if the link can be established.

Another way to think of the EEPROM is it's similar to a resume. The switch uses this resume to determine if it will 'hire' that module based on the information it matches. If the information in the EEPROM cannot be read or contains invalid information, the negotiation will stop immediately. This will present itself as a port with 'no light,' meaning no connection from the switch.

The switch Operating System relies on SFF-8636 housing information for the EEPROM format, and it assumes that all vendors adhere to this standard so that communication with the switch remains consistent regardless of vendor. Problems arise when the EEPROM cannot communicate with the switch, for example, when there is an unrecognized vendor ID in the EEPROM or invalid speed data is read, so the firmware rejects the module.

Clearly, both the firmware on the switch and the firmware in the module have to be a match. Even if the EEPROM is valid, the negotiation may fail if the switch is using older firmware, or if it's simply an unsupported module for the switch. The switch will even reject the negotiation if it's simply not coded to support the 40G ports on a QSFP+ module for QSFP28 ports.

To begin any kind of troubleshooting, the first step is to ensure there are no switch logs for messages such as 'unsupported transceiver' or 'vendor mismatch.' Commands such as 'show interface status' will show the state of the negotiation. By examining the EEPROM bytes according to the information in SFF-8636 or reading byte 128 for the vendor name, you can confirm module identity. When an engineer has an understanding of the purpose of EEPROM alongside the interaction between the firmware in the switch as well as the module, he/she/they will be able to dig into the EPC-0/'no light' problem without random equipment swapping.

● What Common EEPROM Mismatches Cause Link Failure?

EEPROM retains the vendor ID, speed, and compatibility flags necessary for identification. When an EEPROM signature is unrecognized, the firmware eliminates those modules from the negotiation process, and the link will not be established. Vendor mismatches occur when the EEPROM indicates a vendor ID that the vendor does not support. The firmware will block the module from usage in the switch or router to maintain reliability on the network.

Find logs that reference 'unsupported transceiver' or 'vendor mismatch' to confirm diagnosis. You may also use commands 'show interface' or 'show module detail' to locate any log messages. For manual EEPROM verification, you can reference the SFF-8636 bytes. For example, byte 128 will contain the vendor name, and byte 131 contains the vendor OUI. You can cross-check those in manufacturer databases to verify authenticity.

Combining logs and EEPROM verification to fix link status issues on mixed transceiver implementations will allow technicians to repair links based on facts.

● How Does Forced Speed Mismatch Cause Dead Ports?

When a QSFP28 port is forced to 40G, this will lead to a breakdown in negotiation, as the port speed and module speed must be exactly the same in order for the handshake to succeed. If the speeds do not match, the negotiations will fail, and the ports will become non-operational. It is imperative to configure the ports correctly with regard to speed, breakout mode, and Forward Error Correction (FEC). Breakout mode describes the situation where one port is split into multiple lanes.

The lanes must be synchronized at both ends: the two ends must agree on the breakout mode; otherwise, they will create conflicts. FEC protects the quality of the link, and it detects and corrects errors. If FEC is misconfigured or turned off when the forced speed is configured incorrectly, the link will not come up.

In the simplest terms, the port and module 'speak the same language.' Forced speed on mismatched ports will lead to communication class conflicts, blocking the connection. Aligning the parameters correctly will prevent these failures.

Practical Troubleshooting Steps for Protocol Negotiation
Firmware updates enhance module recognition and provide bug fixes, so it is important that the switch and the module are kept up to date with the current firmware. Check log files for errors such as 'unsupported transceiver' or errors in negotiation with commands such as 'show interface status.' If there is an issue with the interface, resetting just the interface clears any stale state and will often fix negotiation issues.

Changing the module to a proven compatible module will help isolate a hardware issue. Also, if there is a working test module, it is probably safe to confirm that the module or the cable is causing the problem. These methods allow the administrator to isolate and address protocol negotiation failures and keep QSFP+ and QSFP28 mixed environments stable and operational.

● How Do DAC Cable Failures Manifest? Troubleshooting CRC and No-Link Issues

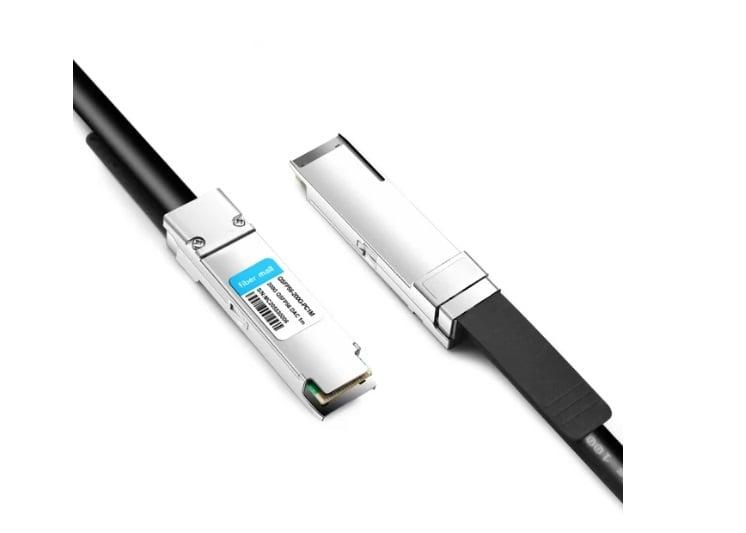

DAC cables provide connection between nodes like switches and servers. Passive DAC cables can transmit signals directly to one another and are ideal for close runs (less than ~7m). Active DACs employ electronics, like equalizers and retrainers, to retain signals for longer distances (up to ~15m). Active components provide some reduction in distortion and signal loss, but require more power consumption and raise the cost of the cable. Understanding this will assist you in determining the best cable to use for your own solution.

● Why Do DAC Cables Cause No Detect Failures?

Reasons for failure could include EEPROM incompatibility, defective physical connections, or faulty cables. DDM (Digital Diagnostic Monitoring) parameters should be evaluated in terms of voltage and temperature and provide information about hardware health. Any spikes or dips in the parameters indicate that there may be a broken cable-a streak in voltage could also indicate a bad connection. Likewise, RX and TX power readings verify signal transmission, and readings close to zero indicate a broken or loose cable.

● What Causes Intermittent Link Drops and CRC Errors?

Signal integrity problems (crosstalk, jitter, and reflections) can result in corrupted data and intermittent link disconnections. Error counters, which record CRC, input, and Frame Check Sequence errors, will reveal problems on the link, and when there are a lot of errors, it's often pointing to cable issues. Forward Error Correction (FEC) will be able to recover from some of the errors-approximately 80% (not reliable)-providing some better usable quality; however, with poor cables, FEC cannot recover from the total loss and damage it has done.

The following is the step-by-step DAC cable troubleshooting process:

· Check logs on the switch for any port/cable-related errors.
· Check the DDM voltages and temperatures.
· Physically check cables for cuts, damaged cables, or loose connections.
· Replace any suspect cables and retest link stability.
This process will locate most DAC-related CRC errors and no-link faults.

● How to Build an Effective Deployment Checklist for Mixed QSFP+ and QSFP28 Networks

It's very important that you plan before you purchase any devices. You need to check device compatibility on compatibility lists and consult SFF-8636 specifications to ensure that the modules you want to purchase will work. Some critical areas for compatibility include:

· Are you using a QSFP+ module in a QSFP28 port? Yes, it will work and operate at 40G.
· Are you using a QSFP28 module in a QSFP+ port? No, that will not work.
· Are you using a QSFP+ DAC cable with a QSFP28 port? Yes, it should work, but check the vendor documentation first.
· Are you using a QSFP28 DAC cable in a QSFP+ port? This may work, but you will need to test cable operations before full deployment.

Testing onsite is very important. Implement loopback testing to confirm the operation of the ports and cables prior to rolling the equipment into live usage. Testing multiple cable lengths for operation on short runs and long runs is critical in high-risk scenarios like long cables or when using third-party and non-OEM modules and cables.

Also, continuously monitoring your CRC error rates, temperature, and optical power will help maintain a healthy network. Having alerts on anomalies can help prompt action on issues before they cause connectivity complications. Taking purposeful steps through a checklist to verify even the primary function of the mixed QSFP deployments is a good way to predict issues before costly surprises.

● Conclusion

The backward compatibility of QSFP+ and QSFP28 provides versatility to network upgrade options but does come with issues around protocol negotiation. Understanding the drawbacks of compatibility is crucial to avoiding expensive mistakes. This is where a data science dimension, driven by diagnostic rigor and first principles thinking, eliminates errors and confusion.

Additionally, proactive monitoring of CRC rates and link status allows you to spot problems at the earliest juncture. Included phased upgrades into a rollout keep your network running while you migrate to a new type of technology. Focusing back on simplicity in troubleshooting fundamentals increases your likelihood of maintaining a stable, high-performing mixed QSFP network while increasing performance over the longer term. A balance of efficiency and reliability is as paramount as it is impractical.
