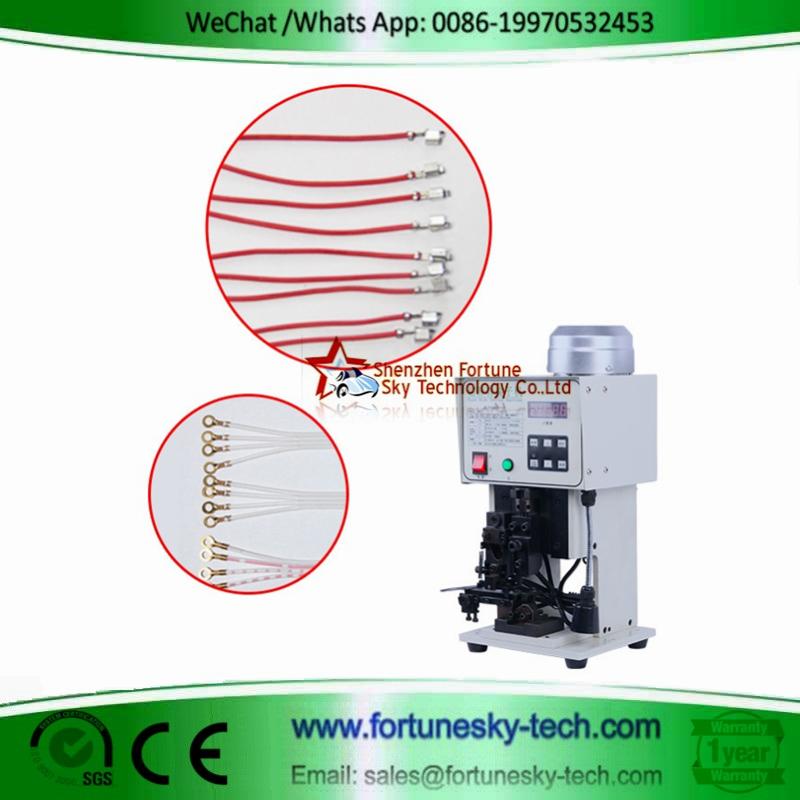

A Practical Guide to Terminal Crimping Machines

A terminal crimping machine is an essential piece of equipment for producing high-quality wire terminations. Its key component is the die, which is crucial for operational efficiency and product quality. The die's intricate design and precise structure are a testament to the engineering ingenuity behind these machines. Understanding its construction is vital for getting the best performance from your equipment.

Operational Overview
To operate the machine, you must follow a few straightforward steps. The Power switch turns the unit on and off. The Counter keeps track of completed crimps and can be reset with the Zero button. An indicator light shows whether the machine is in Manual (red) or Automatic (green) mode, which is selected with the Auto/Manual switch. In manual mode, you can use the Manual Up/Down keys to move the slider. There's also a Reset button for troubleshooting if the machine doesn't power on correctly.

Safety and Best Practices
Always prioritize safety. Before turning on the power, make sure any tools, like a wrench, are clear of the operating area and that the punch is at its highest point. To prevent damage, never crimp multiple terminals at once. For stable operation and a longer lifespan, use a voltage stabilizer. When adjusting the die, always switch the machine to manual mode.

Common Malfunctions and Maintenance
Even with proper use, issues can arise. Here are some common problems and their solutions:

Foot pedal switch not working: Replace it.

Continuous striking: Check the proximity switch.

Blown fuse: Replace it immediately.

Sluggish movement: Apply 1-3 drops of grease daily to the slider and die oil holes. The operating temperature should be between -2° and 50° C.

Motor issues (e.g., smoking): Replace with a new 180W motor, ensuring the voltage is correct.

Stuck die: Use a wrench to turn the screw on the main shaft to move the punch. Check for any damage to the crimping blades.

Die Installation and Adjustment
Installing and adjusting the die is a critical process. Begin by carefully installing the blades, paying attention to the inner and outer blades. Next, adjust the lower die's position to ensure it aligns perfectly with the upper die. Switch to manual mode and slowly lower the upper die to check for alignment from the side. Finally, adjust the feeder claw to ensure it's close enough to the blade to function properly but not so close that it gets damaged.

Once these adjustments are complete, you can test a crimp in manual mode. If the result is satisfactory, switch to automatic mode for continuous operation.
