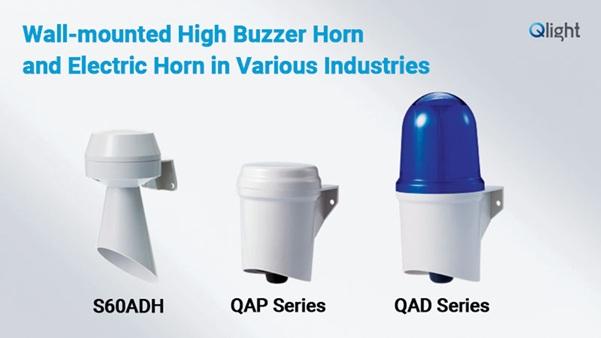

Wall-mounted High Buzzer Horn and Electric Horn in Various Industries | Qlight

The Qlight QAP/ADH Series S60ADH wall-mounted high buzzer horn is designed to provide clear and effective audible signals in various industrial environments. It features an elegant wall-mounted design that allows for easy installation while maintaining a professional appearance. In addition to the high-performance buzzer horn, the unit can be integrated with a stack light and signal beacon, offering both visual and audible alerts for enhanced safety and communication. The stack light provides clear, visual indications, while the signal beacon ensures high visibility in both indoor and outdoor settings. The horn uses a resonance structure that not only ensures low power consumption but also delivers a sharp, high-pitched sound that can be clearly heard across a wide area. Its cone-shaped sound diffusion structure further enhances its performance by spreading the sound effectively, ensuring excellent signal transmission.

The device is capable of producing a sound volume of up to 95dB at 1 meter, making it suitable for environments where clear audio alerts are essential. It operates reliably within an ambient temperature range of -25°C to +50°C and has a protection rating of IP54, which provides resistance against dust and limited water ingress. Additionally, the S60ADH model is CE compliant, ensuring it meets international safety and quality standards.

- Why Choose the Qlight QAP100H for Flexible Alert Sound Configuration?
The Qlight QAP/ADH Series QAP100H electric horn is a powerful wall-mounted signal device that offers extensive sound customization. It incorporates a sound diffusion structure to ensure effective sound coverage while supporting up to 30 built-in sound options and an additional 30 user-defined sounds. This flexibility allows it to be tailored for specific applications. Inside the unit, there are convenient volume control and tone selector switches, giving users easy access to sound adjustments. One of its most notable features is the ability to upload custom voice tones directly into the device using MP3 files via an SD card, making it highly adaptable for different operational needs.

It supports both binary input mode and bit input mode; the binary input mode enables users to choose from 30 different sounds using the tone selection switch, while the bit input mode organizes these sounds into six groups of five tones each, allowing easy selection based on the operational requirement. With support for SD cards and MP3 files, the QAP100H offers a high level of flexibility in alert sound customization. It operates in a temperature range of -25°C to +50°C and complies with RoHS directives, ensuring it is environmentally friendly and safe for use.

What Are the Benefits of Using the Qlight QAD125BZ in Noisy Industrial Environments?
The Qlight S60AD/QAD Series QAD125BZ wall mount type LED & buzzer is a versatile signaling device that combines visual and audible alerts into one unit. This model integrates a bright LED warning light with a powerful built-in buzzer, delivering a maximum sound output of 105dB, ensuring that alerts are noticed even in noisy industrial environments.

The LED light can be set to either steady or flashing mode using the built-in selection switch, with a flashing rate of 60-80 flashes per minute, providing clear visual signaling. This dual-alert system is particularly effective in situations where both visual and audible warnings are necessary to ensure safety and proper communication. The QAD125BZ operates efficiently in harsh conditions, with an ambient operating temperature range of -30°C to +50°C, making it suitable for demanding industrial settings. It is also RoHS compliant, which guarantees that it is manufactured using environmentally safe materials and meets global safety standards.

If you are looking for a stack light and signal beacon, you can get it from Qlight.

Contact Qlight today to learn more.
View more: Wall-mounted High Buzzer Horn and Electric Horn in Various Industrial

Qlight

The Qlight QAP/ADH Series S60ADH wall-mounted high buzzer horn is designed to provide clear and effective audible signals in various industrial environments.
