Split oil seal: Innovative solution for industrial sealing

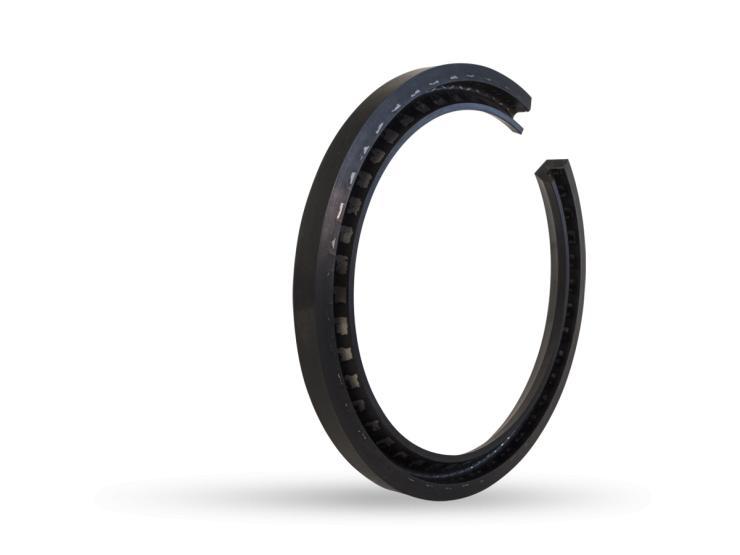

Image: https://www.dlseals.com/uploads/Model-24-Mill-Right-N-Split_back_1200x900.jpg

Split Oil Seal [https://www.dlseals.com/] is an innovative product that achieves quick installation and high-performance sealing through a split structural design. It is widely used in large industrial equipment that requires frequent maintenance or is difficult to disassemble. It combines the strength of traditional skeleton oil seals with the convenience of open oil seals, becoming a breakthrough in sealing technology in the fields of metallurgy, chemical industry, energy, etc. This article comprehensively analyzes the core value of split oil seals from the aspects of structural design, working principle, material classification, application scenarios and technical advantages.

1. Structure and working principleThe core design of the split oil seal lies in its split opening structure, which is usually composed of two halves or multiple sections, and seamless docking is achieved through special processes. Its working principle mainly includes the following two points:

Oil film sealing mechanism: After installation, a layer of oil film is formed between the oil seal lip and the equipment shaft, which prevents medium leakage, reduces friction and wear, and ensures the stability of dynamic sealing.

Self-compensation design: Imported Z-shaped springs or polymer composite elastic materials are used to make the sealing lip fit the shaft surface tightly, and the sealing effect can be maintained even if the shaft has slight eccentricity or vibration.

Key technological breakthroughs:

Stereoscopic positioning technology: Through the precise docking of the skeleton and the sealing body, radial and axial bidirectional locking is achieved to ensure the sealing integrity after separation.

Micro-extrusion fit: The split end faces retain a micro-spacing in the free state, and automatically form an extrusion fit after installation to enhance the sealing compensation capability.

2. Material classification and performance characteristicsThe performance of split oil seals [https://www.dlseals.com/] is highly dependent on material selection. Common materials include:

Nitrile rubber (NBR): Excellent oil resistance, suitable for oily media environment at room temperature (-40~120), low cost.

Fluororubber (FKM): Resistant to high temperature (below 200) and highly corrosive media (such as acid and alkali), suitable for chemical equipment.

Polyurethane (PU): High wear resistance, suitable for high speed or particle-containing working conditions, such as mining machinery.

Perfluoroether rubber (FFKM): Resistant to extreme temperatures (-20~300) and chemical corrosion, used in semiconductor or aerospace fields.

Performance advantages:

Quick disassembly and assembly: No need to disassemble the equipment, replacement can be completed within 3 minutes, greatly reducing downtime.

Long life: Low friction coefficient design (such as PTFE coating) combined with wear-resistant materials, the service life can reach 2~3 times that of ordinary oil seals.

Wide adaptability: Supports rotation, reciprocating and spiral motion, and has low requirements for shaft surface roughness (Ra less than or equal to 0.8m).

III. Typical application scenarios

Split oil seals are particularly outstanding in the following fields:

Metallurgical industry:

Used for bearing box sealing of large equipment such as blast furnace fans and reducers to solve the problem of easy oil leakage of traditional packing seals. For example, after a steel plant adopted split oil seals, it avoided bearing burning accidents caused by oil leakage and increased maintenance efficiency by 70%.

Engineering machinery:

In equipment such as excavator hydraulic cylinders and breaker hammers, it can withstand high pressure (above 40MPa) and polluted environments, reducing failures caused by seal failure.

Energy and Chemical Industry:

Pumps and valves in thermal power plants, shaft end seals in chemical plant reactors, resistant to corrosive media (such as HS gas) and high temperature conditions.

Ships and Aerospace:

Sealing of ship gearboxes and rocket fuel valves, adapting to low temperature (-55 degrees C) and ultra-high pressure environments.

IV. Technical Challenges and Future Trends

Current Challenges:

High cost: Due to the complex process of split structure, the unit price is about 30% higher than that of traditional oil seals.

Adaptation to extreme working conditions: Material stability in ultra-high temperature (>300 degrees C) or strong radiation environment still needs to be broken through.

Future Development Direction:

Intelligent Monitoring: Integrated sensors monitor the sealing status (such as wear and temperature) in real time to achieve predictive maintenance.

Environmentally friendly materials: Develop degradable or bio-based rubber to reduce industrial pollution.

3D printing customization: Produce special-section oil seals through additive manufacturing technology to meet the needs of non-standard equipment.

5. Selection and maintenance recommendationsSelection points:

Media compatibility: Select the corresponding material (such as fluororubber acid-resistant, nitrile rubber oil-resistant) according to the type of media (oil, acid, solvent).

Working parameters: Comprehensively consider factors such as pressure, temperature, speed, etc. For example, a high-pressure environment needs to be used with a support ring.

Maintenance strategy:

Regularly check the wear of the lip. If the thickness decreases by more than 20%, it needs to be replaced.

Use special solvents (such as fluorocarbon cleaning agents) when cleaning to avoid damaging the elasticity of the rubber.

Conclusion

The split oil seal has solved the cumbersome installation problem of traditional seals with a "split design" and has become the guardian of the efficient operation of industrial equipment. From metallurgical blast furnaces to aerospace engines, its technological evolution has not only improved the reliability of sealing, but also promoted the innovation of industrial maintenance models. In the future, with the integration of material science and intelligent technology, split oil seals [https://www.dlseals.com/] will continue to make breakthroughs in the direction of high efficiency, environmental protection, and intelligence, injecting more powerful sealing power into global industrial development.
