The Unique Advantages of Halbach Array - Features and Applications

In the era of rapid technological development, magnetic field application technology continues to make breakthroughs. Among them, the Halbach array, with its unique magnetic field characteristics, shows great potential in numerous fields. Hangzhou Magnet Power Technology Co., Ltd. [https://www.cjlmagnet.com/about-us/] combines performance optimization with manufacturing feasibility in the application of Halbach array technology, bringing a new magnetic field application experience to customers.

Image: https://www.cjlmagnet.com/wp-content/uploads/2025/02/fengmian-.jpg

I. Introduction to the Halbach Array

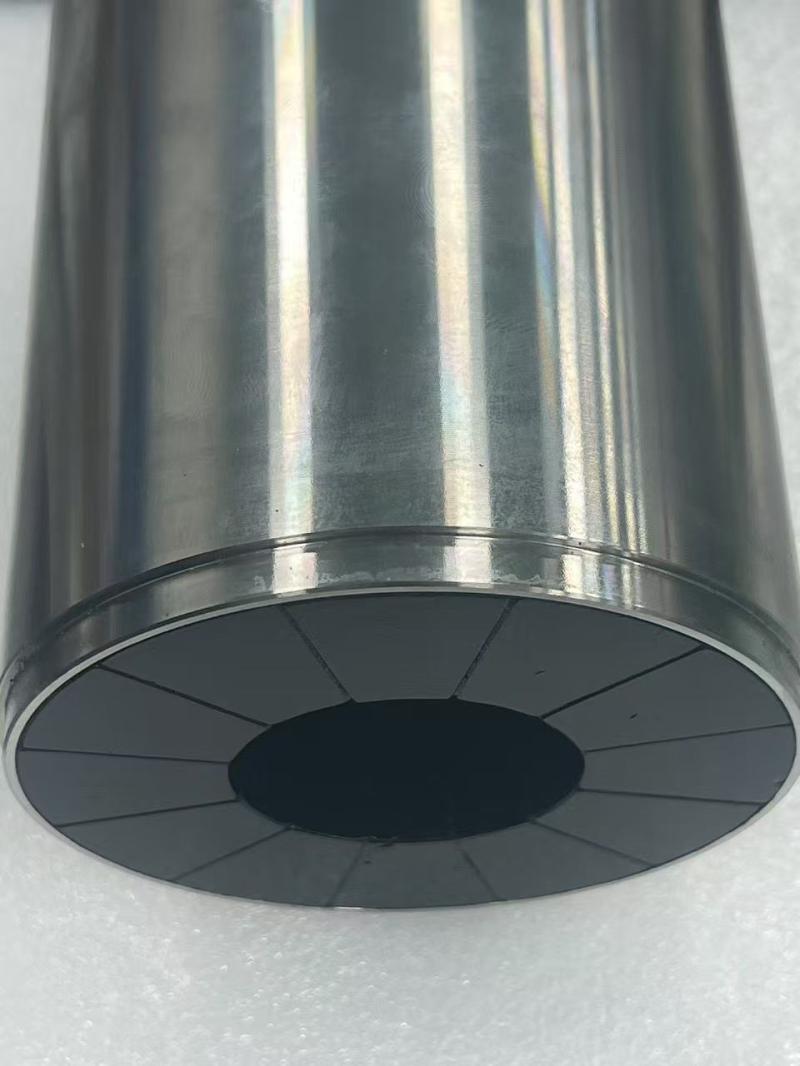

The Halbach [https://www.cjlmagnet.com/product-category/assemblies/precision-halbach/] array is a special permanent magnet arrangement structure. By arranging permanent magnets at specific angles and directions, it can achieve some non - traditional magnetic field characteristics. One of its most remarkable features is that it can significantly enhance the magnetic field strength in a specific direction while greatly weakening the magnetic field on the other side, approximately forming a unilateral magnetic field effect. This unique magnetic field distribution characteristic has brought revolutionary changes to applications in many fields.

In motor applications [https://www.cjlmagnet.com/applications/], the Halbach array plays a crucial role. Since the enhanced magnetic field enables the motor to generate a larger torque output within a smaller volume, the power density is effectively improved. When traditional motors pursue higher power, they often need to increase their volume or the amount of materials used. However, the application of the Halbach array breaks through this limitation, allowing the motor to output more powerful power while maintaining a small size.

In the field of audio devices such as headphones, the Halbach array also performs outstandingly. It optimizes the magnetic field to improve the performance of the sound unit, bringing users a more excellent audio experience. For example, it can enhance the bass effect, making the rhythm of music stronger; it can also improve the sound fidelity and layering, enabling listeners to feel as if they are on the scene and perceive every subtle change in the music.

II. Application Fields and Advantages of Precision Halbach Arrays

2.1 Extensive Application Scenarios and Functions

* Direct - drive Motors: In the market application, direct - drive motors face the problems of increased size and cost due to the increase in the number of pole pairs. The magnetization technology of the Halbach array provides new ideas for solving this problem. After adopting this technology, the magnetic flux density on the air - gap side is greatly increased, and the magnetic flux in the rotor yoke is reduced. This not only effectively reduces the weight and inertia of the rotor but also improves the rapid response ability of the system. At the same time, the air - gap magnetic flux density is closer to a sine wave, reducing the content of useless harmonics, and decreasing the cogging torque and torque ripple, thereby improving the efficiency of the motor.
* Brushless AC Motors: The Halbach ring array in brushless AC motors can enhance the magnetic force in one direction and obtain an almost perfect sine magnetic force distribution. Moreover, due to the characteristic of unidirectional magnetic force distribution, non - ferromagnetic materials can be used as the central shaft, which greatly reduces the overall weight and improves the efficiency of the motor, making the brushless AC motor more energy - efficient during operation.
* Magnetic Resonance Imaging (MRI) Equipment: In the field of medical imaging, the Halbach ring magnet plays an indispensable role. It can generate a stable magnetic field in MRI equipment, which is used to locate and excite the atomic nuclei in the detected object, thereby obtaining high - resolution image information and helping doctors diagnose diseases more accurately, providing strong support for the development of the medical industry.
* Particle Accelerators: In particle accelerators, the Halbach ring magnet is responsible for guiding and controlling the movement path of high - energy particles. By generating a strong magnetic field, it changes the trajectory and speed of particles, achieving particle acceleration and focusing, providing an important tool for researchers to explore the microscopic world.
* Ring Motors: The Halbach ring magnet generates different magnetic fields by changing the direction and magnitude of the current, thereby driving the rotation of the ring motor. This driving method is efficient and stable and has been widely used in some special industrial applications and precision equipment.
* Laboratory Research: In physical laboratories, the Halbach array is often used to generate a stable and uniform magnetic field, providing good experimental conditions for research in fields such as magnetism and materials science. Researchers can use these magnetic fields to deeply study the magnetic properties of substances and explore the performance of new materials, promoting the continuous progress of science and technology.

2.2 Remarkable Advantages

* Powerful Magnetic Field: The ring - shaped precision Halbach magnet adopts a unique ring - shaped magnet design, enabling the magnetic field to be concentrated and focused throughout the ring - shaped structure. Compared with ordinary magnets, it can generate a higher - intensity magnetic field to meet the application scenarios with strict requirements for magnetic field strength.
* Space - Saving: The ring - shaped structure allows the magnetic field to circulate in a closed loop, reducing the space occupied by the magnet. This advantage makes the Halbach array more convenient for installation and use in some equipment with high space requirements, such as miniaturized electronic devices and precision instruments.
* Uniform Magnetic Field Distribution: Due to its special design structure, the magnetic field distribution of the Halbach array in the ring - shaped path is relatively uniform, and the change in magnetic field strength is small. This uniform magnetic field distribution is conducive to improving the stability of the magnetic field and provides a reliable guarantee for applications that require a stable magnetic field environment.
* Multi - Pole Magnetic Field: The design of the Halbach array can generate a multi - pole magnetic field. In specific application scenarios, more complex magnetic field configurations can be achieved. This provides greater flexibility and operability for some experiments and applications with special requirements, meeting the diverse needs of different fields.
* Energy - Saving and Environment - Friendly: The Halbach array usually uses materials with high energy conversion efficiency in its design. At the same time, through the rational design and optimization of the magnetic circuit structure, energy waste is effectively reduced, achieving the goal of energy conservation and environmental protection. This not only meets the requirements of modern society for sustainable development but also reduces the operating costs of enterprises.
* High Utilization Rate of Permanent Magnets: The directional magnetization characteristic of the Halbach magnet makes the working point of the permanent magnet relatively high, generally exceeding 0.9, which greatly improves the utilization rate of the permanent magnet. This means that when the same number of magnets are used, a stronger magnetic field can be generated, improving the output performance of motors and other equipment. At the same time, it reduces the dependence on rare resources, reduces costs, and conforms to the concept of sustainable development.
* Strong Magnetic Performance: The Halbach array combines the radial and parallel arrangements of magnets, considering the magnetic permeability of the surrounding magnetic - conducting materials as infinite, thereby forming a unilateral magnetic field. This unique magnetic field formation method gives the Halbach array strong magnetic performance and makes it perform outstandingly in various applications.
* High Power Density: The parallel magnetic field and radial magnetic field after the decomposition of the Halbach magnetic ring are superimposed on each other, greatly enhancing the magnetic field strength on the other side. This characteristic can effectively reduce the size of the motor and improve the power density. Motors made of Halbach array magnets have high performance that traditional permanent - magnet synchronous motors cannot match and can provide extremely high magnetic power density.

III. Technical Difficulties of Precision Halbach Arrays

Although the Halbach array has many advantages, its technical implementation process faces many challenges.

In the manufacturing process, the ideal Halbach array permanent magnet structure requires the magnetization direction of the entire ring - shaped permanent magnet to change continuously along the circumferential direction. However, in actual production, this is almost impossible to achieve. To balance the contradiction between performance and manufacturing process, enterprises usually need to adopt special assembly solutions. For example, the ring - shaped permanent magnet is divided into fan - shaped discrete magnetic blocks with the same geometric shape. The ring is formed by splicing magnetic blocks with different magnetization directions, and finally, the assembly scheme of the stator and rotor is determined. Although this method takes into account performance optimization and manufacturing feasibility, it undoubtedly increases the manufacturing complexity.

The assembly accuracy requirements of the Halbach array are extremely high. Taking the assembly of a precision Halbach array used in a magnetic levitation motion platform as an example, due to the interaction between magnets, the assembly work becomes extremely difficult. Traditional assembly processes are cumbersome and likely to cause problems such as low flatness and large gaps in the magnet array. To solve these problems, a new assembly method uses beads as auxiliary tools. First, the upward force direction of the main magnet is adsorbed on the beads, and then it is positioned on the bottom plate. This method improves the assembly efficiency, tightness, position accuracy of the magnets, and the linearity and flatness of the magnet array.

The magnetization technology of the Halbach array is also a major difficulty. Under traditional technologies, most Halbach arrays are assembled after pre - magnetization. However, due to the variable force directions between permanent magnets in the Halbach permanent magnet array and the high assembly accuracy requirements, pre - magnetized permanent magnets often require special molds during assembly. Although the overall magnetization technology has the advantages of improving magnetization efficiency, reducing energy costs, and reducing assembly risks, due to its high technical difficulty, it is still in the exploration stage. The mainstream production method in the market is still pre - magnetization followed by assembly.

IV. Advantages of Precision Halbach Arrays of Hangzhou Magnet Power Technology Co., Ltd.

4.1 High Power Density

The precision Halbach arrays of Hangzhou Magnet Power Technology Co., Ltd. have significant advantages in power density. By superimposing the parallel magnetic field and the radial magnetic field, the magnetic field strength on the other side is greatly enhanced. This characteristic enables the reduction of the motor size under the same output power condition, improving the power density. Compared with traditional permanent - magnet motor architectures, the company has achieved the miniaturization of motors using precision Halbach array technology, saving space for various application scenarios and improving energy utilization efficiency.

4.2 No Need for Skewed Slots in the Stator and Rotor

In traditional permanent - magnet motors, due to the inevitable harmonics in the air - gap magnetic field, skewed slots are usually used in the stator and rotor structures to weaken their influence. However, the air - gap magnetic field of the precision Halbach array of Hangzhou Magnet Power Technology Co., Ltd. has a highly sinusoidal magnetic field distribution with extremely low harmonic content. This makes it unnecessary to use skewed slots in the stator and rotor, which not only simplifies the motor structure, reduces manufacturing difficulty and cost but also improves the operation stability and reliability of the motor.

4.3 The Rotor Can Use Non - Iron - Core Materials

The self - shielding effect of the precision Halbach array generates a unilateral magnetic field, providing more choices for the selection of rotor materials. Hangzhou Magnet Power Technology Co., Ltd. takes full advantage of this feature and selects non - iron - core materials as rotor materials, reducing the moment of inertia and improving the rapid response performance of the motor. This is particularly important for application scenarios that require frequent start - stop and rapid speed regulation, such as automated production lines and the robotics field.

4.4 High Utilization Rate of Permanent Magnets

The precision Halbach arrays manufactured by CJL adopt directional magnetization technology, achieving a higher working point, generally exceeding 0.9, which greatly improves the utilization rate of permanent magnets. This means that with the same number of magnets, a stronger magnetic field can be generated, enhancing the output performance of the motor. At the same time, it reduces the dependence on rare resources, reduces costs, and meets the requirements of sustainable development.

4.5 Can Use Concentrated Windings

Due to the high sine distribution degree of the magnetic field of the precision Halbach array and the small influence of the harmonic magnetic field, Hangzhou Magnet Power Technology Co., Ltd. can use concentrated windings. Compared with the distributed windings used in traditional permanent - magnet motors, concentrated windings have higher efficiency and lower losses. In addition, concentrated windings can also reduce the size and weight of the motor, improve the power density, and provide more possibilities for the miniaturization and lightweight of the motor.

V. Professional R & D Team

Hangzhou Magnet Power Technology Co., Ltd. has a professional and efficient R & D team, which provides strong support for the company in the application and innovation of precision Halbach array technology.

The team members come from different professional fields and have rich technical backgrounds and experience. Some of them hold doctorate and master's degrees in related fields such as electrical engineering, magnetism, and materials science, and have more than 20 years of industry experience in motor R & D [https://www.cjlmagnet.com/service/#research-development], magnet design, and manufacturing processes. Years of practical experience enable them to quickly understand and solve complex technical problems.

Whether in industrial production, medical equipment, or scientific research exploration, the Halbach array will play an increasingly important role, bringing more convenience to our lives and social development. The R & D team will continue to explore different application fields and new development directions of precision Halbach array technology, continuously promote technological innovation, and inject new vitality into the wide application and development of Halbach array technology.

Image: https://www.cjlmagnet.com/wp-content/uploads/2025/01/94c806e98cd1e391529e406147f95a8-1024x1024.jpg
