From Blueprint to Final Product: A Detailed Manufacturing Process of Air Core Inductor Coils

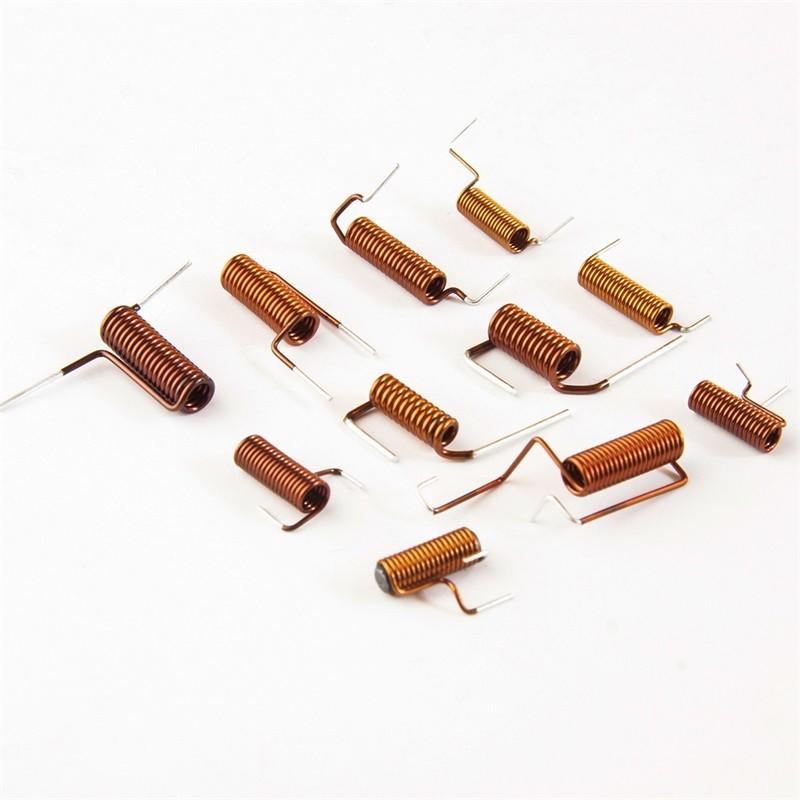

Air core inductor coils [https://www.smdcoil.com/products/] play a crucial role in modern electronic devices, including applications in communication equipment, automotive electronics, and medical devices. The manufacturing process of air core inductors involves several meticulous steps, each critical to ensuring the final product meets design specifications. In this article, we will walk through the process, from blueprint design to the final product, to help both tech enthusiasts and industry professionals understand how these essential components are made.

Image: https://ecdn6.globalso.com/upload/p/113/image_product/2025-01/tanhuan.jpg

Overview of the Manufacturing Process

The manufacturing process of air core inductor coils [https://www.smdcoil.com/products/] can be broken down into the following key stages:

1. Blueprint Design & Requirement Confirmation

2. Material Selection & Preparation

3. Coil Winding

4. Inspection & Testing

5. Packaging & ShipmentWe will now dive deeper into each of these stages.

1. Blueprint Design & Requirement Confirmation

The first step in manufacturing an air core inductor coil is designing the blueprint. At this stage, engineers create a detailed design based on the customer's requirements or product specifications. The blueprint typically includes:

Coil shape and dimensions

Winding material

Electrical performance requirements (e.g., inductance, DC resistance, etc.) Once the blueprint is finalized, the design is sent to the customer for confirmation to ensure it meets all required specifications.

Table 1: Example Design Parameters for Air Core Inductors

Parameter

Description

Inductance Value

Measured in Henry (H), determines the coil's inductive characteristics

Wire Gauge

Determines coil size and resistance

Winding Style

e.g., flat winding, circular winding

Resistance Value

Affects coil efficiency, measured in Ohms ( ohm )

Image: https://ecdn6.globalso.com/upload/p/113/image_product/2025-01/7.jpg2. Material Selection & Preparation

Material selection is a critical step to ensure the air core inductor coil [https://www.smdcoil.com/products/] performs as intended. The most common materials used for winding are:

Copper Wire: Known for its excellent conductivity, copper is the most commonly used winding material. Aluminum Wire: Chosen for its lighter weight and lower cost, though it has higher resistance than copper. Core Materials (optional): While air core inductors do not use magnetic cores, in some cases, magnetic materials may be used to enhance inductance.In addition to the wire material, other materials such as insulation coatings and packaging materials are also prepared for the next stages.

Table 2: Common Materials and Their Characteristics

Material

Characteristics

Application

Copper Wire

Excellent conductivity, ideal for high-current, low-resistance coils

High-current, low-resistance inductors

Aluminum Wire

Lightweight and cost-effective, but higher resistance

Low-current, cost-sensitive applications

Insulation Coating

Provides electrical insulation, preventing short circuits

Ensures safety and stability of the coil

Image: https://ecdn6.globalso.com/upload/p/113/image_product/2025-01/15.jpg3. Coil Winding

Coil winding is the core step in manufacturing an air core inductor. Based on the blueprint design, the selected wire material is wound into a coil using automated winding machines or manual winding equipment. Several key factors need to be carefully controlled during this process:

Tightness of the Winding: The spacing between each coil loop is critical to maintaining the correct inductance. Winding Speed & Tension: Proper winding speed and tension are essential to prevent the wire from breaking or becoming uneven.

Table 3: Winding Parameters

Parameter

Description

Winding Speed

Controls coil density and uniformity

Tension on Wire

Ensures the coil does not loosen or break

Winding Style

e.g., flat winding, single-layer winding

4. Inspection & Testing

After winding, the air core inductor must undergo rigorous inspection and testing to ensure it meets the required specifications. Common tests include:

Inductance Test: Using an LCR meter, the inductance value is measured to verify it matches the design specifications. DC Resistance Test: The coil's DC resistance is checked to ensure it falls within the acceptable range. Visual Inspection: The coil is examined for any visible defects, such as breaks or damage to the wire.

Table 4: Common Testing Parameters and Standards

Test Item

Standard

Inductance Test

Matches design specifications within plus-minus 5%

DC Resistance Test

Falls within the acceptable tolerance of plus-minus 2%

Visual Inspection

No visible defects or loose coils

Image: https://ecdn6.globalso.com/upload/p/113/image_product/2025-01/13.jpg5. Packaging & Shipment

Once the inductor passes all tests, it is ready for packaging. The packaging typically includes:

Anti-static Bags: To prevent static damage during handling and transport. Boxes or Trays: To protect the inductors during shipping and ensure they are stored safely.Once packaged, the inductors are ready for shipment to customers or stored in inventory.

Table 5: Packaging Materials and Methods

Packaging Material

Description

Anti-static Bags

Protects inductors from static damage

Boxes/Trays

Ensures inductors remain undamaged during transit

Conclusion

The manufacturing of air core inductor coils [https://www.smdcoil.com/products/] is a detailed and precise process that involves multiple steps, each requiring careful attention. By following each step rigorously, from blueprint design to final product inspection, manufacturers ensure that the air core inductors meet the necessary quality and performance standards.

We hope this article provides a clear and accessible understanding of the air core inductor manufacturing process. Whether you are a tech enthusiast or an industry professional, knowing how these inductors are made can deepen your appreciation of their importance in modern electronics.

Image: https://ecdn6.globalso.com/upload/p/113/image_product/2025-01/10.jpg
