A Comprehensive Analysis of the 15kV 200A Load Break Elbow

In underground distribution power systems, reliable connectors are critical for ensuring safe, efficient, and durable connections. The 15kV 200A Load Break Elbow Connector is a popular choice for medium-voltage applications, providing a fully shielded and insulated connection point between underground cables and distribution equipment. Commonly used in pad-mounted transformers, cable branch boxes, and power supply branch boxes, this load break elbow connector is an essential component in underground utility systems. This article explains its key features, components, benefits, and applications.

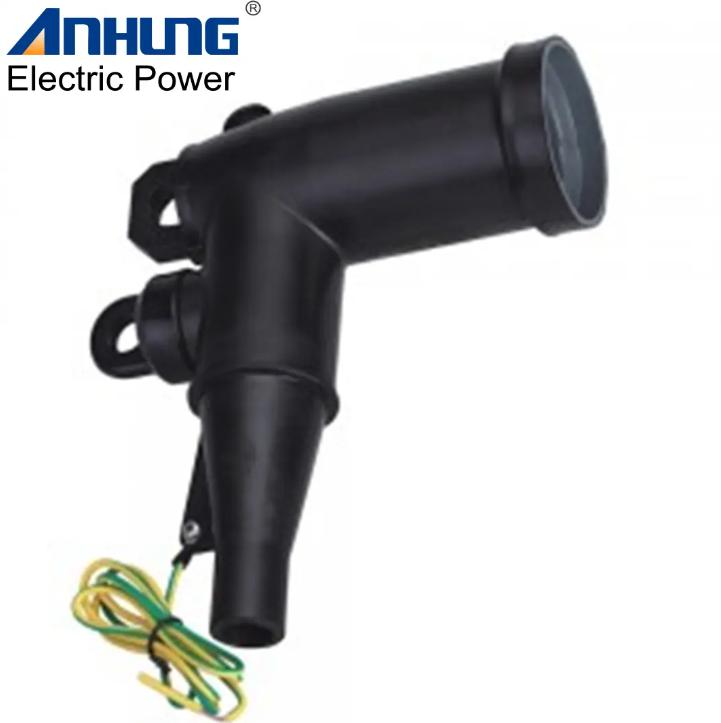

Image: https://c861.goodao.net/uploads/%E5%9B%BE%E7%89%8771.png

1. What is a Load Break Elbow Connector [https://www.ahelek.com/15kv-200a-load-break-elbow-connector-2-product/]?

A load break elbow connector is a plug-in termination device that allows safe connection and disconnection of underground cables within a live distribution system. This connector is specifically designed to be manually operated with a hot stick (insulated tool), allowing technicians to perform connections and disconnections without requiring the circuit to be de-energized.

The 15kV 200A Load Break Elbow Connector is designed to handle up to 15 kilovolts and 200 amps, making it suitable for medium-voltage applications. With its fully-shielded and insulated design, the connector provides safety to operators and equipment, minimizes electrical stress, and ensures reliable performance in demanding conditions.

2. Key Features of the 15kV 200A Load Break Elbow Connector

The 15kV 200A load break elbow connector offers several essential features that make it reliable for underground power systems:

a. Fully-Shielded and Insulated Design

The load break elbow connector is fully shielded to reduce the risk of accidental contact with live parts. This shielding is made from high-quality rubber insulation, providing a barrier against electrical stress and enhancing safety for both operators and surrounding equipment. The connector's insulation and shielding also make it weather-resistant, ensuring long-term durability and performance.

b. Plug-in Termination

The load break elbow functions as a plug-in termination, enabling quick and secure connection between the underground cable and various distribution equipment, such as pad-mounted transformers, cable branch boxes, and power supply branch boxes. This plug-in design simplifies installation and maintenance, as it can be inserted and removed with minimal tools and without dismantling other components.

c. Compatibility with Load Break Bushings

Load break elbow connectors are designed to work with load break bushings, forming a complete and stable connection that can handle high currents and voltages. The elbow connector and bushing insert are the fundamental components of load break connections, ensuring reliability in high-stress environments, including those in nuclear facilities.

d. Nuclear Industry Compliance

The 15kV 200A load break elbow connector meets rigorous standards, making it suitable for applications in nuclear power systems. This compliance ensures that the connector is capable of handling high-voltage requirements in demanding and highly regulated environments where safety and reliability are paramount.

Image: https://c861.goodao.net/uploads/%E5%9B%BE%E7%89%8782.png

3. Applications of the 15kV 200A Load Break Elbow Connector

Load break elbow connectors [https://www.ahelek.com/15kv-200a-load-break-elbow-connector-2-product/] are primarily used in underground and high-voltage distribution systems, where they offer a safe and efficient solution for connecting and disconnecting cables. Key applications include:

* Pad-Mounted Transformers: These transformers, often found in residential and commercial areas, connect distribution lines to consumer power lines. Load break elbow connectors facilitate easy and safe cable connections to these transformers.
* Cable Branch Boxes: Used for branching out power lines in underground distribution systems, these boxes house multiple connections to extend the distribution network. The load break elbow connector is essential for enabling these connections while maintaining system integrity.
* Power Supply Branch Boxes: Similar to cable branch boxes, power supply branch boxes allow multiple power lines to converge and distribute power to different locations. The 15kV load break elbow connector enables secure connections, preventing arcing and reducing stress on the system.

4. Advantages of the 15kV 200A Load Break Elbow Connector

The 15kV 200A Load Break Elbow Connector provides several advantages that make it a preferred choice for underground distribution systems:

a. Enhanced Safety with Shielding and Insulation

With its fully-shielded and insulated design, the load break elbow connector minimizes the risk of accidental contact with live components, reducing the chance of electrical shock and arcing. This design is crucial in protecting both operators and equipment, especially during maintenance and repair operations.

b. Quick Installation and Replacement

The plug-in nature of the 15kV load break elbow connector allows for easy installation and disconnection. Technicians can quickly connect or disconnect the cable using a hot stick, which is a specialized insulated tool that keeps them at a safe distance from live equipment. This quick-change capability simplifies maintenance and reduces system downtime.

c. Reliability in Harsh Environments

The load break elbow connector is built to withstand harsh environmental conditions. Its insulation material is resistant to UV exposure, temperature fluctuations, and moisture, making it ideal for outdoor installations and underground use. Additionally, the high-quality insulation material minimizes the risk of degradation over time, ensuring a longer service life.

d. Maintenance and Diagnostics Ease

By allowing for easy plug-in connections, the load break elbow connector simplifies maintenance and diagnostics. If a cable or bushing insert needs to be inspected or replaced, technicians can disconnect the elbow without fully dismantling the system. This feature minimizes downtime and enhances efficiency in maintaining underground electrical networks.

Image: https://c861.goodao.net/uploads/%E5%9B%BE%E7%89%8791.png

5. Key Considerations for Choosing a 15kV 200A Load Break Elbow Connector

Selecting the right load break elbow connector for your application involves considering factors that affect both safety and performance:

* Voltage and Current Requirements: Ensure the connector can handle the voltage (15kV) and current (200A) specific to your system.
* Compatibility with Equipment: Verify that the load break elbow is compatible with the bushings, cables, and equipment in use.
* Environmental Conditions: For outdoor or underground installations, ensure the connector is fully shielded and weather-resistant.
* Maintenance Needs: If regular maintenance is required, opt for connectors with plug-in designs that facilitate quick disconnection and reconnection.

6. Installation and Safety Tips

To maximize the performance and longevity of the 15kV 200A load break elbow connector, proper installation and safety protocols should be followed:

* Use Insulated Tools: During installation, always use insulated tools, such as a hot stick, to maintain a safe distance from live components.
* Follow Manufacturer Guidelines: Adhering to the installation guidelines provided by the manufacturer will help prevent improper connections and potential malfunctions.
* Conduct Routine Inspections: Regularly inspect the connector for any signs of wear or damage, especially in high-stress or outdoor environments. Proactive maintenance helps avoid unexpected failures.
* Observe Voltage and Current Limits: Ensure that the system voltage and current do not exceed the connector's ratings of 15kV and 200A, as overloading can lead to insulation breakdown or equipment damage.

Image: https://c861.goodao.net/uploads/%E5%9B%BE%E7%89%87101.png

Conclusion

The 15kV 200A Load Break Elbow Connector [https://www.ahelek.com/15kv-200a-load-break-elbow-connector-2-product/] is a versatile, safe, and efficient solution for connecting underground cables to distribution equipment in medium-voltage systems. Its fully-shielded, insulated design and compatibility with load break bushings make it ideal for pad-mounted transformers, cable branch boxes, and other critical components in underground power distribution.

With robust insulation materials, nuclear industry compliance, and a user-friendly plug-in design, this load break elbow connector is well-suited to the demanding conditions of underground electrical networks. For applications that require easy maintenance, reliable performance, and enhanced safety, the 15kV 200A load break elbow connector is an invaluable asset, contributing to the overall efficiency and resilience of modern power systems.
