JC3RH-BS Type B RCCB: Advanced Circuit Protection for Modern Systems

Residual Current Circuit Breakers (RCCBs) are critical devices in electrical safety, designed to detect and disconnect electrical circuits experiencing leakage currents, thereby preventing potential hazards. Among various types, the JC3RH-BS Type B RCCB Residual Current Circuit Breaker [https://www.w9-group.com/jc3rh-bs-type-b-rccb-residual-current-circuit-breaker-product/]stands out for its capacity to detect both alternating (AC) and direct currents (DC) with high precision, making it ideal for non-linear circuits that generate high levels of DC and high-frequency leakage currents. This article offers an in-depth understanding of the JC3RH-BS Type B RCCB, including its features, application areas, technical specifications, and benefits.

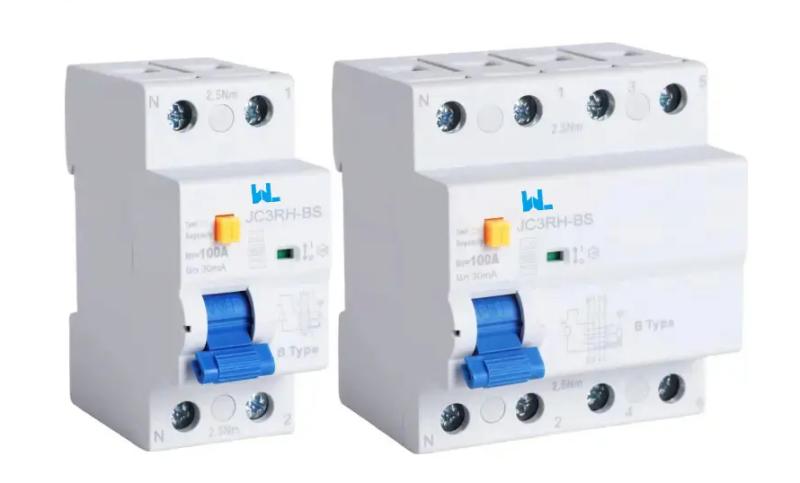

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/1-47.png

Understanding JC3RH BS Type B RCCB Residual Current Circuit Breaker

The JC3RH-BS Type B RCCB is a specialized type of residual current circuit breaker equipped to handle high direct current (DC) and high-frequency components, ensuring protection in circuits with complex leakage characteristics. Unlike traditional RCCBs that primarily detect sinusoidal AC residual currents, the Type B RCCB can detect smooth DC residual currents, which is particularly important for systems with power electronics and devices like inverters, rectifiers, and other non-linear loads.

Key Features of JC3RH-BS Type B RCCB

This Type B RCCB offers an array of features that set it apart:

* Electromagnetic Operation: The JC3RH-BS Type B RCCB operates using an electromagnetic mechanism, which provides faster and more reliable disconnection during fault conditions. This feature enables precise intervention in hazardous situations, preventing electrical shocks and fire risks.
* Earth Leakage Protection: Equipped with robust earth leakage detection, this RCCB identifies any unusual current flow towards the earth, indicating a potential fault. This protection mechanism helps prevent electric shocks by disconnecting the circuit whenever a leakage is detected.
* High Breaking Capacity: The RCCB is designed to handle breaking capacities of up to 6 kA and 10 kA. This allows it to effectively break high fault currents, providing safety in both residential and industrial applications.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/2-43.png

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/3-19.png

* Wide Range of Rated Currents: The JC3RH-BS RCCB can handle rated currents up to 100A, making it adaptable for various loads and applications, from small residential installations to large-scale industrial systems.
* Enhanced DC Residual Current Detection: This device is specifically designed to detect smooth DC residual currents above 6 mA, ensuring protection even in circuits where AC and DC components coexist. This is especially beneficial for systems that incorporate inverters and rectifiers with active power factor correction.
* Variable Tripping Sensitivity: Available in sensitivity levels of 30mA, 100mA, and 300mA, the RCCB allows users to select the appropriate level based on application requirements, ensuring optimal protection without frequent or unnecessary tripping.
* Flexible Connection Options: The RCCB can be connected from either the top or the bottom, providing installation flexibility and convenience in varying setup configurations.
* Compliance with International Standards: The JC3RH-BS RCCB meets IEC 61008-1 and IEC 62423 standards, ensuring high quality and reliability, along with adherence to safety regulations in electrical installations.

Applications of JC3RH-BS Type B RCCB [https://www.w9-group.com/rccb/]

The JC3RH-BS Type B RCCB is especially suited for non-linear circuits that generate high levels of DC and high-frequency components. Typical applications include:

* Power Electronics and Inverters: With the increasing use of power electronic devices in various industries, the demand for RCCBs capable of handling DC components has grown. Type B RCCBs can detect leakage currents in systems with variable frequency inverters, essential for AC motor drives and HVAC systems.
* Single-Phase and Poly-Phase Rectifiers: Rectifiers, particularly those with active power factor correction, are commonly found in modern electrical setups. These devices can generate significant DC leakage, which a standard RCCB cannot detect. Type B RCCBs are designed to handle this leakage, providing added safety.
* Renewable Energy Systems: Systems like solar PV installations and wind turbines often interface DC generation with AC networks. The JC3RH-BS RCCB is ideal for such setups, as it can detect smooth DC currents and ensure protection across the interface between renewable energy systems and the AC grid.
* Industrial Machinery and Automation Systems: Automated machinery in industrial settings frequently uses variable frequency drives and complex electrical systems that can cause DC leakage. This RCCB safeguards against unexpected faults, protecting workers and equipment.
* EV Charging Stations: With the rise of electric vehicles, charging stations require RCCBs that can detect both AC and DC residual currents. Type B RCCBs, like the JC3RH-BS, provide comprehensive protection for EV chargers, ensuring safety for both users and equipment.

Types of Currents Detected by Type B RCCB

Type B RCCBs are unique because they detect multiple types of residual currents, enhancing protection against various fault types. The JC3RH-BS Type B RCCB can detect the following:

* Sinusoidal AC Residual Currents: Detects the most common AC residual currents in standard circuits, safeguarding traditional electrical systems.
* Pulsed DC Residual Currents: Ideal for circuits with rectified AC to DC conversions, where residual currents may pulse intermittently.
* Alternating Residual Currents up to 1000Hz: This RCCB is built to respond to high-frequency residual currents, protecting circuits with high-frequency devices such as inverters and other non-linear loads.
* Pulsating Direct Residual Currents: Ensures tripping in circuits where currents fluctuate between AC and DC, commonly seen in power electronics.
* Smooth Direct Residual Currents: Essential for circuits where there is continuous DC flow, such as in electric vehicle charging or renewable energy applications.

Advantages of JC3RH-BS Type B RCCB

The JC3RH-BS RCCB offers several advantages, making it a preferred choice in both industrial and residential settings:

* Enhanced Safety for Non-Linear Circuits: As power electronics become more prevalent, the ability to detect DC leakage currents is critical. The JC3RH-BS RCCB prevents potential hazards by reliably disconnecting circuits with high DC leakage.
* Wide Applicability: From residential setups to complex industrial environments, the JC3RH-BS Type B RCCB accommodates a variety of applications with its high breaking capacity and adjustable sensitivity.
* Regulatory Compliance and Quality Assurance: Meeting IEC 61008-1 and IEC 62423 standards, this RCCB ensures quality, durability, and safety, making it suitable for global applications.
* Flexibility in Installation: With top or bottom connection options, the RCCB offers ease of installation, especially useful in retrofits or complex wiring arrangements.
* Improved Protection Against Fire and Electric Shock: By detecting all types of residual currents, the JC3RH-BS RCCB reduces the risk of electrical fires and shocks, creating a safer environment for users.

The JC3RH-BS Type B RCCB Residual Current Circuit Breaker [https://www.w9-group.com/jc3rh-bs-type-b-rccb-residual-current-circuit-breaker-product/] is an advanced protection device engineered for non-linear circuits with complex leakage profiles. Its ability to detect both AC and DC residual currents, especially smooth DC, makes it invaluable in modern electrical systems featuring power electronics, renewable energy sources, and electric vehicle infrastructure. With features such as earth leakage protection, high breaking capacity, and compliance with IEC standards, the JC3RH-BS Type B RCCB ensures reliable, versatile, and safe operation across diverse applications.
