Key Features of the WEW1-4000 Air Circuit Breaker

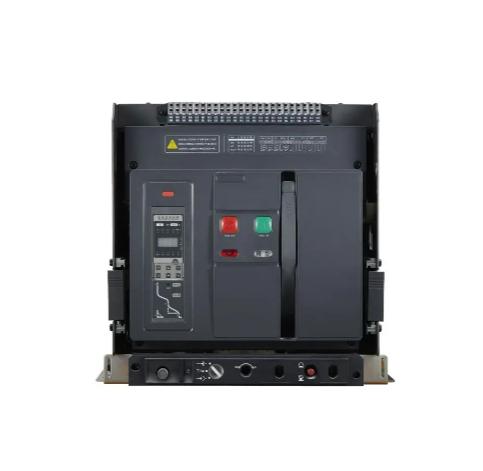

Air circuit breakers (ACBs) [https://www.w9-group.com/acb/] are important devices used in electrical systems to protect against overloads, short circuits, and other faults. The WEW1-4000 is a specific model of ACB designed for high-power applications. This breaker can be either fixed or withdrawable, giving flexibility in installation and maintenance. It operates at voltages of 400VAC or 690VAC and can handle currents up to 4000 amperes, making it suitable for large industrial or commercial settings. The breaker is available in 3-pole or 4-pole configurations, allowing it to be used in various types of electrical systems. As an Original Design Manufacturer (ODM) product, this ACB can be customized to meet specific customer needs. Air circuit breakers like the WEW1-4000 play a crucial role in ensuring the safety and reliability of electrical networks by quickly interrupting the flow of electricity when problems are detected. Their ability to handle high voltages and currents makes them essential components in power distribution systems, helping to prevent damage to equipment and reduce the risk of electrical fires.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/1-37.png

Key Features of the WEW1-4000 Air Circuit Breaker [https://www.w9-group.com/air-circuit-breaker-wew1-4000-air-circuit-breaker-withdrawable-type-acb-fixed-type-switch-odm-400vac-690vac-4000a-3-4p-acb-product/]

Withdrawable and Fixed Options

The WEW1-4000 [https://www.w9-group.com/air-circuit-breaker-wew1-4000-air-circuit-breaker-withdrawable-type-acb-fixed-type-switch-odm-400vac-690vac-4000a-3-4p-acb-product/] is available in both withdrawable and fixed types. In the withdrawable version, the breaker can be easily removed from its housing for maintenance or replacement without disrupting the entire electrical system. This feature allows for quicker servicing and reduces downtime. The fixed type, on the other hand, is permanently installed in place. It's typically chosen when frequent maintenance isn't expected or when space is limited. Both options offer reliability, but the choice depends on specific installation requirements and maintenance needs.

High Current Capacity

With a rating of 4000A, this breaker can handle extremely high currents. This high capacity makes it suitable for large-scale industrial applications, data centers, or commercial buildings with heavy power demands. The ability to manage such high currents means it can protect large electrical systems without the need for multiple smaller breakers. This feature not only simplifies the electrical system design but also enhances overall safety by providing robust protection against overloads and short circuits in high-power environments.

Voltage Flexibility

The WEW1-4000 is designed to operate at either 400VAC or 690VAC. This voltage flexibility is a significant advantage as it allows the breaker to be used in various electrical systems with different voltage requirements. The 400VAC option is common in many industrial and commercial applications, while the 690VAC capability makes it suitable for specialized high-voltage systems often found in heavy industry or large manufacturing facilities. This versatility means the same breaker model can be used across different projects or areas within a facility, simplifying inventory management and maintenance procedures.

3-Pole and 4-Pole Configurations

The availability of both 3-pole and 4-pole configurations adds to the breaker's versatility. A 3-pole breaker is used in three-phase systems without a neutral, which is common in many industrial applications. The 4-pole version includes an additional pole for the neutral line, making it suitable for three-phase systems that require neutral protection. This feature allows the breaker to be used in a wider range of electrical systems, from simple three-phase setups to more complex configurations that require neutral line protection.

ODM (Original Design Manufacturer) Customization

As an ODM product, the WEW1-4000 can be customized to meet specific customer requirements. This feature is particularly valuable for projects with unique needs or constraints. Customization options might include adjustments to the trip characteristics, addition of specific monitoring or communication features, or modifications to fit particular installation environments. This flexibility allows electrical system designers to obtain a circuit breaker that precisely matches their project requirements without compromising on quality or safety standards.

Air-Based Interruption Mechanism

The "Air" in Air Circuit Breaker refers to the medium used to extinguish the arc that forms when the circuit is interrupted. Unlike oil or gas-filled breakers, air circuit breakers use atmospheric air to cool and extinguish the arc. This air-based mechanism offers several advantages. It's environmentally friendly as it doesn't use any harmful substances. It's also safer to maintain as there's no risk of oil leaks or gas escapes. The air-based system is generally more cost-effective and easier to maintain compared to other types of circuit breakers.

Intelligent Protection and Monitoring

Modern air circuit breakers like the WEW1-4000 often come equipped with advanced electronic trip units. These intelligent systems continuously monitor the electrical parameters such as current, voltage, and power. They can be programmed to trip the breaker under various conditions, including overloads, short circuits, ground faults, and even power quality issues. Many of these systems also offer data logging capabilities, allowing for analysis of electrical system performance over time. Some models may include communication interfaces that enable integration with building management systems or industrial control networks, providing real-time monitoring and remote operation capabilities.

Thermal-Magnetic and Electronic Trip Units

The WEW1-4000 can be equipped with either thermal-magnetic or electronic trip units, offering flexibility in protection mechanisms. Thermal-magnetic units use a bimetallic strip for overload protection and a magnetic element for short-circuit protection. They're simple, reliable, and don't require an external power source. Electronic trip units, on the other hand, use microprocessors to monitor the circuit and provide more precise and adjustable protection settings. They offer advanced features like adjustable trip curves, fault diagnostics, and data logging. Electronic units also allow for better coordination with other protective devices in the electrical system. The choice between these two types allows users to select the most appropriate protection mechanism for their specific application, balancing factors like cost, precision, and desired features.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/2-33.png

The WEW1-4000 air circuit breaker [https://www.w9-group.com/air-circuit-breaker-wew1-4000-air-circuit-breaker-withdrawable-type-acb-fixed-type-switch-odm-400vac-690vac-4000a-3-4p-acb-product/] represents a robust and versatile solution for high-power electrical protection. Its range of features, including high current capacity, voltage flexibility, and multiple configuration options, make it suitable for a wide variety of industrial and commercial applications. The choice between withdrawable and fixed types, along with 3-pole and 4-pole options, provides flexibility in installation and system design. The air-based interruption mechanism offers a safe and environmentally friendly approach to arc extinguishing. Advanced features like intelligent protection systems and the option for customization through ODM services ensure that the WEW1-4000 can meet specific project requirements and integrate with modern power management strategies. The availability of both thermal-magnetic and electronic trip units further extends its adaptability to different protection needs and budgets. Overall, the WEW1-4000 air circuit breaker combines traditional circuit protection principles with modern technology and design flexibility, making it a reliable choice for safeguarding critical electrical systems in today's demanding power environments.
