Harnessing The Versatility Of Adjustable Thermal Magnetic Molded Case Circuit Breakers: W9 Group's WLM6RT Series For Optimal Electrical Protection

Realizing the Benefits of Adjustable Molded Case Circuit Breakers [https://www.w9-group.com/adjustable-mccb/]

Electrical systems require properly rated overcurrent protection to safeguard conductors and equipment. Adjustability gives facility managers, panel builders and system designers greater flexibility customizing protection. W9 Group's WLM6RT series adjustable thermal magnetic molded case circuit breakers (MCCBs [https://www.w9-group.com/adjustable-mccb/]) add adaptability with proven performance across commercial and industrial applications.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/1-35.png

What Makes MCCBs Adjustable?

Standard MCCBs provide fixed instantaneous and thermal overload trip settings based on the frame size and amp rating. Adjustable units allow altering those thresholds within defined ranges to match actual system requirements using dials or digital interfaces. This customizes the time-current curve characterizing when the breaker trips relative to overcurrent levels.

Key adjustable parameters include:

Instantaneous Pickup Current

The maximum current level handled before immediate magnetic tripping. Typically adjustable from 3-10 times rated current. This protects against spike overloads by inducing fast tripping well above normal operating loads seen by the circuit.

Thermal Overload Delay

The trip delay duration based on current magnitude, preventing nuisance tripping. Sustained overloads slowly cumulatively heat the circuit until tripping. The breaker trips slower in response to moderate sustained overloads versus instantaneous spikes.

Combined, both protection modes cover a wide spectrum of overload faults.

Benefits of Adjustable MCCB ProtectionTunable trip thresholds and response timing offer several key advantages:

Precise System Coordination

Electrical system components, conductors and loads all influence appropriate protection settings. Coordination looks holistically at tripping sequences to isolate faults while maintaining uptime. Adjustability matches thresholds and speed of response across the distribution hierarchy for precise coordination. This customization exceeds fixed trip standards applied universally.

Reduced Nuisance Tripping

A higher instantaneous trip threshold avoids outages from routine amplitude spikes during normal operation like motor startup inrush currents. Lengthier thermal overload delays likewise prevent tripping due to temporary spikes from incidental loads. This keeps vital equipment and processes online, avoiding shutdowns over harmless currents.

Optimized Equipment Protection

Tuning MCCB trips to align with connected equipment ratings, inrush profiles and duty cycles provides an additional safeguard layer. This ensures power continuity without allowing damaging cumulative overheating or overload stresses. It complements internal machine protection.

Adaptable System Evolution

As electrical systems evolve over time with upgrades, adjustable breakers facilitate coordination. Trip setting tweaks sustain protection without requiring outright replacements as needs change over decades. This cost-effectively accommodates growth by reusing existing hardware.

W9 Group [https://www.w9-group.com/]'s Versatile WLM6RT Adjustable MCCB SeriesHeadquartered in Wenzhou, China, W9 Group manufactures adjustable MCCBs for OEM and end-user applications. Their WLM6RT series offers:

* Adjustable instantaneous pickup from 3-10 times amp rating
* Adjustable long delay thermal overload protection
* 160A, 250A and 800A frame sizes
* 220VAC to 690VAC voltage ratings
* Single, dual and four pole options
* 25kA, 35kA and 50kA interrupting capacities

This flexibility suits diverse coordination needs. Rigorous IEC 60947-2 testing and ISO 9001 certified manufacturing ensures reliability. Ongoing R&D drives intelligence using connectivity and analytics.

Image: https://ecdn6.globalso.com/upload/p/1205/image_product/2024-11/2-31.png

Confidently Specifying Adjustable MCCBs

Facility managers, equipment specifiers and engineers require proven overcurrent safety devices protecting assets and uptime. The adjustable WLM6RT MCCB series checks every box - intuitive configuration, robust certification and adaptable performance sustaining changing system needs over decades.

While studies help set protective device interoperation, adjustable breakers provide on-site customization insurance against flaws or changes. This fine tuning prevents unnecessary outages over years of shifting electrical loads. Adaptability saves downtime costs through informed selective tripping.

Contact W9 Group power experts at +86 577-63333067 or info@w9-group.com to explore integrating their adjustable MCCB lineup into new and retrofit applications matching your protection needs. With global installations relying daily on WLM6RT breakers, their quality withstands demanding real-world conditions across international standards.

What Makes the WLM6RT Series Adjustable?

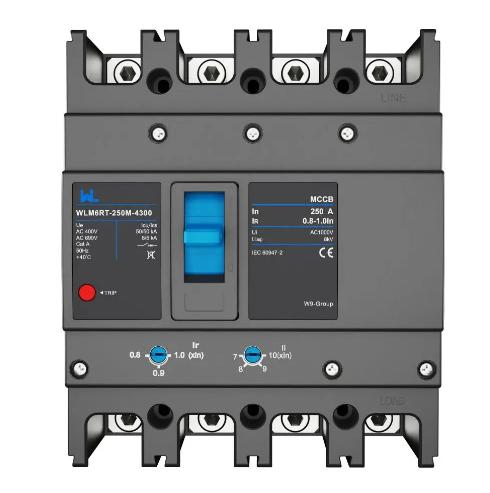

The WLM6RT accomplishes adjustability through an intuitive dial allowing technicians to set magnetic instantaneous and thermal overload trip points based on real-world system testing and protective coordination studies.

Magnetic trip tuning first sets the extreme overcurrent threshold that will induce immediate breaker tripping. This offers adaptation for major spikes from short circuits. Next, the thermal sensor dial configures a time-based overload tripping profile responding to sustained heating from lower overloads lacking instantaneous trip. Combined, the dials enable matching response to both major and minor overload faults specific to the application.

The family offers three frame sizes covering 100A to 800A capacities, with dual/quad pole options for multi-phase wiring. This accommodates a wide span of individual equipment currents and branch circuit needs using the same adjustable architecture. Further amperage and voltage de-rating factors maintain safe operating parameters across global electrical standards and conditions.

Achieving Selective Coordination Through Adjustability

Selective coordination looks at the sequence of overcurrent protective device operation when responding to any faults based on location and severity. The goal is isolation - ensuring devices closest to issues trip initially, while upstream supply-side circuit protection remains online temporarily. Events may induce temporary spikes on one branch circuit that shut down the whole panel or facility with blanket fixed trip settings lacking selectivity. Adaptability allows tuning the most critical equipment feeds to trip slower than branch circuits during modest overloads for continuity. Lower level breakers cut off the issue locally before facility-wide shutdowns occur. This also reduces destructive arc flash energies by removing power nearest to the fault early.

Nuisance Tripping Triggers and Mitigations

Nuisance tripping occurs when harmless bursts of elevated current trigger an unnecessary, disruptive outage. Key examples include voltage fluctuations, motor/compressor inrush current draws energizing coils as rotors accelerate, and temporary loading spikes from routine duty cycle swings or intermittent operations. Nuisance events share common traits - harmless temporary amplitude increases within normal operating bounds for equipment if the system withstands momentary peaks. They lack dangers like sustained conductor/asset overheating, unlike true overcurrent faults signaling impending damage. By tuning instantaneous and thermal overload zones to align with normal current patterns exhibited in a system instead of theoretical assumptions, adjustable MCCBs prevent many disruptive nuisance trips. This sustain productivity and avoids resetting tripped breakers unrelated to actual faults.

The WLM6RT Advantage

The WLM6RT molded case circuit breaker series from W9 leverages adjustable magnetic and thermal trip elements to facilitate matching protection to actual observed electrical system behavior across diverse applications. Contact [https://www.w9-group.com/contact-us/]our technical team today for guidance tailoring WLM6RT breakers to your specific overcurrent coordination needs and equipment ratings. Customization prevents unnecessary outages and ensures code-compliant selective fault isolation sustaining safety and uptime. W9 brings decades of experience delivering quality adjustable MCCBs to facilities across China and global export regions.
