How to Choose the Right PCB Material for Advanced Radar Systems?

12-24-2024 05:52 PM CET | Energy & Environment

Press release from: ABNewswire

How to Choose the Right PCB Material for Advanced Radar Systems?

PCB material selection is a critical factor in radar system design, directly impacting performance, reliability, and cost. Different radar applications, such as automotive millimeter-wave radar, air defense radar, and ground monitoring radar, require specific PCB materials. This article provides a detailed guide to selecting the right PCB material for radar systems to maximize performance and efficiency.

Why PCB Material Matters [https://www.richpcba.com/rogers-microwave-rf-automotive-radar-pcb-product/] in Radar Systems

Frequency Requirements

Radar systems operate in high-frequency ranges, such as 24 GHz or 77 GHz for automotive radar.

High-frequency signals require materials with low dielectric constant (Dk) and low dielectric loss (Df) to ensure signal integrity and minimize losses.

Thermal Management Performance

Radar systems often operate under high power. Materials with high thermal conductivity are crucial for efficient heat dissipation.

Reliability Under Harsh Conditions

Automotive radar systems must endure high temperatures, humidity, and vibrations.

Military radars face extreme environmental conditions, necessitating highly stable and durable materials.

Common PCB Materials for Radar Systems

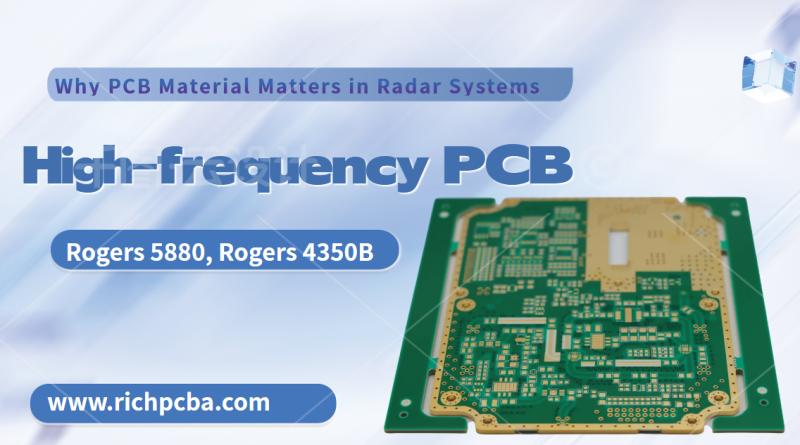

Image: https://ecdn6.globalso.com/upload/p/730/image_product/2024-12/radar-pcb-high-frequency-pcb.png

Rogers Materials

Recommended Types: Rogers 5880, Rogers 4350B [https://www.richpcba.com/rogers-ro4350b-8l-metal-edging-product/]

Key Features:

Low dielectric constant and loss

Excellent thermal stability and low CTE (coefficient of thermal expansion)

Suitable for millimeter-wave and high-frequency radar applications.

Ideal Use Cases: Millimeter-wave radar, military radar, high-frequency communication modules.

Taconic Materials

Recommended Types: Taconic TLY, RF-35

Key Features:

Cost-effective compared to Rogers materials

Moderate performance for mid-to-high frequency applications.

Ideal Use Cases: Automotive radar, medium-frequency monitoring radar.

Modified FR-4 Materials

Key Features:

High cost-effectiveness

Enhanced performance through special coatings for mid-frequency applications.

Ideal Use Cases: Budget radar systems, small-scale monitoring equipment.

Polyimide (PI) Materials

Key Features:

Flexible material for intricate designs

Excellent thermal and mechanical properties.

Ideal Use Cases: Integrated radar modules, flexible antenna systems.

Image: https://ecdn6.globalso.com/upload/p/730/image_product/2024-12/rf-pcb.jpg

Steps to Select the Right PCB Material

Choose Based on Frequency

Use low-loss materials like Rogers 5880 for high-frequency radar. [https://www.richpcba.com/rigid-pcb/]

Select modified FR-4 for cost-sensitive, low-frequency applications.

Consider Power and Thermal Requirements

High-power radars should use materials with superior thermal conductivity, such as metal-backed laminates.

Match Environmental Conditions

Military and aerospace radars benefit from high-temperature and moisture-resistant materials like PTFE or polyimide.

Balance Performance and Cost

For projects with tight budgets, opt for modified FR-4 while ensuring it meets essential performance criteria.

Common Mistakes in PCB Material Selection

Relying Solely on a Single Material

Different radar modules may require different PCB materials. For instance, RF modules need Rogers, while control modules may use FR-4.

Overlooking Thermal Management

Even with thermally efficient materials, proper heat sink designs are necessary for effective heat dissipation.

Ignoring Manufacturing Complexity

High-performance materials often require specialized processing capabilities, so ensure people's supplier can handle these complexities.

Conclusion: The Key to Exceptional Radar PCB Performance

Selecting the right PCB material is essential to optimize radar system performance, reliability, and cost-efficiency. For high-frequency radar systems, Rogers and Taconic materials offer superior performance. For budget-sensitive applications, modified FR-4 can provide a cost-effective alternative.

Partnering with an experienced PCB manufacturer ensures precise material selection and manufacturing support for their radar applications.
