JCB3LM-80 ELCB: Essential Earth Leakage Circuit Breaker for Electrical

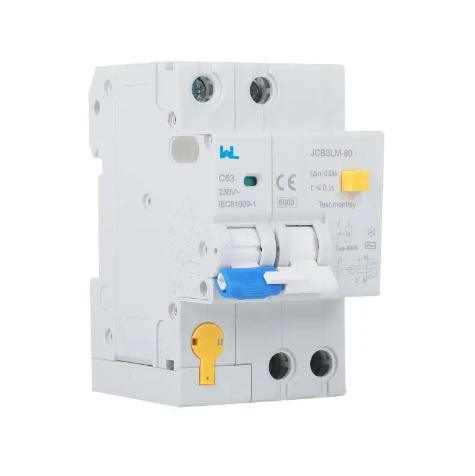

The JCB3LM-80 series Earth Leakage Circuit Breaker (ELCB) [https://www.jiuces.com/jcb3lm-80-elcb-earth-leakage-circuit-breaker-residual-current-operated-circuit-breaker-rcbo-product/], also known as a Residual Current Operated Circuit Breaker (RCBO), is an advanced safety device designed to protect people and property from electrical hazards. It offers three primary protections: earth leakage protection, overload protection, and short-circuit protection. Designed for use in various environments-from homes and high-rise buildings to industrial and commercial spaces-the JCB3LM-80 ELCB is built to ensure the safe operation of electrical circuits. This device promptly disconnects the circuit when any imbalance is detected, thereby reducing risks associated with electric shocks, fire hazards, and electrical equipment damage.

Image: https://www.jiuces.com/uploads/138.png

The JCB3LM-80 ELCB plays a pivotal role in electrical safety by:

* Preventing Electric Shocks and Fires: It swiftly disconnects the circuit when a fault occurs, preventing electrocution or potential fire incidents.
* Protecting Electrical Equipment: By cutting off power during an overload or short circuit, the JCB3LM-80 ELCB helps avoid damage to appliances and costly repairs.
* Ensuring Circuit Safety: It enhances safety by monitoring the integrity of each individual circuit. A fault in one circuit does not impact others, allowing continued safe operation.

Features of the JCB3LM-80 ELCB Series [https://www.jiuces.com/jcb3lm-80-elcb-earth-leakage-circuit-breaker-residual-current-operated-circuit-breaker-rcbo-product/]

The JCB3LM-80 series ELCBs come with a range of features that cater to different electrical safety needs:

* Rated Currents: Available in various current ratings (6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A), the JCB3LM-80 ELCB can be tailored to suit different load requirements in both residential and commercial setups.
* Residual Operating Currents: It provides multiple sensitivity levels for residual current operation-0.03A (30mA), 0.05A (50mA), 0.075A (75mA), 0.1A (100mA), and 0.3A (300mA). This versatility enables the ELCB to detect and disconnect at low leakage levels, enhancing protection against electrical leakage.
* Poles and Configuration: The JCB3LM-80 is offered in configurations such as 1P+N (1 Pole 2 wires), 2 poles, 3 poles, 3P+N (3 poles 4 wires), and 4 poles, making it adaptable to various circuit designs and requirements.
* Types of Operation: Available in Type A and Type AC, these devices cater to different types of alternating and pulsating direct current leakage, providing effective protection across diverse environments.
* Breaking Capacity: With a breaking capacity of 6kA, the JCB3LM-80 ELCB can handle significant fault currents, minimizing the risk of arc flashes and other hazards in the event of a fault.
* Standards Compliance: The JCB3LM-80 ELCB complies with IEC 61009-1, ensuring it meets international safety and performance standards.

Image: https://www.jiuces.com/uploads/222.png

Image: https://www.jiuces.com/uploads/312.png

How the JCB3LM-80 ELCB Works

When a person accidentally comes into contact with live electrical components or if there's a fault where a live wire contacts water or grounded surfaces, current leakage to the ground occurs. The JCB3LM-80 ELCB is designed to detect such leakage immediately, triggering a disconnection of the circuit. This ensures that:

* Current Leakage Detection: When the current leaks to the ground, the ELCB detects an imbalance between the live and neutral wires. This imbalance signals a leakage, and the device instantly breaks the circuit.
* Overload and Short Circuit Protection: The JCB3LM-80 ELCB includes overload protection, which prevents circuits from carrying more current than they are rated for, avoiding overheating and potential fire. Short circuit protection further enhances safety by disconnecting the circuit instantly when a short circuit is detected.
* Self-Testing Capability: Certain models of the JCB3LM-80 ELCB offer self-testing, allowing users to regularly verify the device's functionality. This feature is critical in ensuring that the ELCB remains in optimal working condition.

Benefits of Using the JCB3LM-80 ELCB

Here's a breakdown of the key benefits it provides:

* Enhanced Safety for Residential and Commercial Spaces: The ELCB is essential in residential and commercial spaces, where it effectively reduces the risk of electric shocks, especially in environments prone to moisture or heavy machinery operation.
* Improved Electrical System Reliability: As the JCB3LM-80 ELCB can be installed on individual circuits, it provides a layer of protection that ensures one circuit fault does not disrupt the entire electrical system, improving reliability.
* Extended Lifespan of Electrical Equipment: By preventing overloads and short circuits, the ELCB helps extend the lifespan of electrical devices and appliances, protecting investments in equipment and minimizing maintenance costs.
* Environmental Versatility: Available in different configurations and sensitivity levels, the JCB3LM-80 ELCB is versatile and can be tailored to meet diverse environmental and operational needs, from household setups to large commercial installations.

Technical Specifications of the JCB3LM-80 Series ELCB

To ensure suitability for a wide range of applications, the JCB3LM-80 ELCB is built with the following specifications:

* Current Ratings: From 6A to 80A, allowing customization for varying load demands.
* Residual Current Sensitivity: Options such as 30mA, 50mA, 75mA, 100mA, and 300mA.
* Pole Configurations: Including 1P+N, 2P, 3P, 3P+N, and 4P configurations, enabling compatibility with various circuit designs.
* Types of Protection: Type A and Type AC, suitable for alternating and pulsating DC leakage currents.
* Breaking Capacity: A robust breaking capacity of 6kA to handle high fault currents.

Installation and Usage of the JCB3LM-80 ELCB

The installation of a JCB3LM-80 ELCB should be done by a qualified professional to ensure proper function and compliance with safety standards. When installing, the following steps should be taken:

* Determine Load Requirements: Select an ELCB with an appropriate current rating based on the load to be protected.
* Choose the Correct Residual Current Sensitivity: Based on the potential risk of leakage current in the environment, choose a suitable sensitivity level.
* Installation on Individual Circuits: For enhanced safety, it's advisable to install an ELCB on each circuit rather than one for the entire system. This approach provides more targeted protection and reduces the impact of faults on other circuits.

Applications of the JCB3LM-80 ELCB

Here's a look at the primary applications for the JCB3LM-80 ELCB:

* Residential: Ideal for homes, especially in areas such as bathrooms and kitchens, where water and electrical outlets are in close proximity.
* Commercial Buildings: Suitable for office buildings, where a large number of electrical devices are used, increasing the potential for overload and short circuits.
* Industrial Settings: Applicable in factories and workshops, where heavy machinery operates, increasing the risk of earth faults and current leakage.
* High-Rise Buildings: In high-rise buildings with extensive electrical systems, the JCB3LM-80 ELCB provides a layer of security that helps manage complex electrical networks effectively.

Image: https://www.jiuces.com/uploads/44.png

Importance of Compliance with Standards

The JCB3LM-80 ELCB's compliance with IEC 61009-1 ensures it meets stringent international safety standards, offering reliable protection and peace of mind. IEC standards ensure that these devices are rigorously tested for performance, durability, and safety, making them suitable for global use.

The JCB3LM 80 ELCB Earth Leakage Circuit Breaker Residual (RCBO) [https://www.jiuces.com/rcbo/] is a vital device for ensuring electrical safety in residential, commercial, and industrial environments. With its combined protections against earth leakage, overloads, and short circuits, the JCB3LM-80 ELCB minimizes risks associated with electrical faults, including electric shocks and potential fires. Available in various ratings, configurations, and sensitivity levels, this ELCB series can be customized to meet diverse requirements, making it a reliable and versatile solution for protecting people and property from electrical hazards. Proper installation and regular testing are crucial to ensure the device operates as intended, making the JCB3LM-80 ELCB an invaluable component in modern electrical systems.
