Is the JCM1 Molded Case Circuit Breaker the Ultimate Safeguard for Modern Electrical Systems?

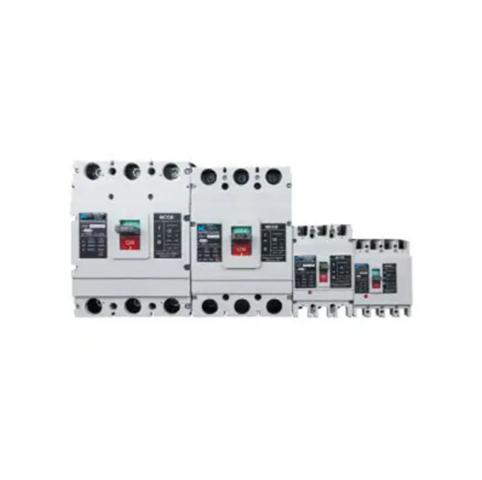

The JCM1 Molded Case Circuit Breaker [https://www.jiuces.com/jcm1-moulded-case-circuit-breaker-product/] is another popular factor in modern electrical systems. This breaker shall provide unmatched protection against overloads, short circuits, and under-voltage conditions. Backed by developments from advanced international standards, JCM1 MCCB assures safety and reliability of the electrical circuit, hence becoming an ideal unit for applications in both commercial and industrial fields. Read on to understand the JCM1 moulded case circuit breaker.

Image: https://www.jiuces.com/uploads/134.png

Key Features of the JCM1 Molded Case Circuit Breaker [https://www.jiuces.com/jcm1-moulded-case-circuit-breaker-product/]

The molded case circuit breaker of the JCM1 series has a high performance with versatile design, extreme class insulation rated up to 1000V, and operating voltage up to 690V hence appropriate for different electrical installations. This JCM1 will especially be useful in cases when there is an infrequent start-up of the motor and or conversions of the circuit.

Some of the striking features of JCM1 MCCB include that the ratings are available in 125A, 160A, 200A, 250A, 300A, 400A, 600A, and 800A. Such a range makes it suitable for a wide variety of electrical systems, from small installations to large industrial power grids.

The JCM1 Moulded Case Circuit Breaker complies with the IEC60947-2 standard to ensure that it meets international safety and performance requirements. It is, therefore, reliable for protection against overcurrent or short circuits that might cause damage to electrical circuits and equipment.

Image: https://www.jiuces.com/uploads/219.png

Operation of the JCM1 MCCB

The JCM1 Mold Case Circuit Breaker features combined operation of thermal and electromagnetic protection. In this regard, the thermal element of the breaker acts upon excessive heat arising from overload, while the electromagnetic element acts upon short circuits. The dual protection mechanism provides for the circuit's quick disconnection under hazardous conditions to avoid damage or fire hazards.

This switch works for the MCCB also for disconnection purposes, and it is pretty simple to isolate the electrical circuits in case of maintenance or any other emergency. In industries this becomes so vital because quick power disconnection is one of the ways through which the safety of the workers is ensured.

Advantages of Using JCM1 MCCB

Increased Protection: The JCM1 MCCB gives protection against overload conditions, short circuiting, and under-voltage conditions. This protection, in turn, protects the electrical equipment and its systems from damage that could be very costly and time-consuming.

International Compatibility

Compatibility, along with a wide range of current ratings, makes the JCM1 suitable for a wide range of applications. It could be related to motor starting, infrequent circuit switching, and also as a protective device in huge industrial establishments.

Space Efficiency

The compact-sized JCM1 MCCB is designed to be conveniently installed in both horizontal and vertical positions, saving much-valued room in electrical panels.

Durability

The JCM1 MCCB is made from flame-resistance materials and, therefore, is able to function effectively in very adverse environmental conditions. It has very high resistance to abnormal heating and fire; therefore, it ensures long-term reliability and safety.

Ease of Installation

The Moulded Case Circuit Breaker, JCM1, is designed to allow front, back, or plug-in wiring methods. This flexibility makes installation easier and faster; hence, it can save labor cost and reduce the duration of the project.

Difference Between MCB and MCCB

While MCBs and MCCBs have basically the same function of protection for the electrical circuits, they differ in their applications. MCBs are commonly used in low current applications, whose rating of current could be up to 125A. They find their applications in residential or small commercial installations. Whereas the MCCBs-for instance, the JCM1-have higher ratings of currents up to 2500A that are intended for larger electrical systems in industries.

The JCM1 Molded Case Circuit Breaker provides greater current capability and offers improved protection against short circuits and overloads in high-power applications. That makes MCCBs versatile enough for larger-scale electrical systems.

Technical Specifications

Some technical specification include:

* Rated Operating Voltage: 690V (50/60 Hz)
* Rated Insulation Voltage: 1000V
* Surge Voltage Resistance: 8000V
* Electrical Wear Resistance: Up to 10,000 cycles
* Mechanical Wear Resistance: Up to 220,000 cycles
* IP code: IP>20
* Ambient Temperature: -20 degrees divided by +65 degrees C
* Image: https://www.jiuces.com/uploads/311.png
* The UV-resistant and non-flammable plastic materials of the JCM1 MCCB assure its performance against long-term exposures to sunlight and heat.

The Bottom Line
The JCM1 Mold Case [https://www.jiuces.com/jcm1-moulded-case-circuit-breaker-product/] Circuit Breaker has been one of the toughest and reliable circuit protection systems to install in various applications. Advanced in design, internationally compliant, and versatile in application, the JCM1 MCCB is vital protection against electrical fault conditions. With its high current rating, it also finds ideal applications in industrial and commercial installations for the safety and longevity of the electrical systems.
