JCH2-125 Main Switch Isolator 100A 125A: A Comprehensive Overview

The JCH2-125 Main Switch Isolator [https://www.jiuces.com/jch2-125-main-switch-isolator-100a-125a-product/] is a versatile and essential component in residential and light commercial electrical systems. Designed to serve as both a switch disconnector and an isolator, the JCH2-125 series provides reliable performance in managing electrical connections. This article delves into the features, specifications, and benefits of the JCH2-125 Main Switch Isolator, with a particular focus on its 100A and 125A variants.

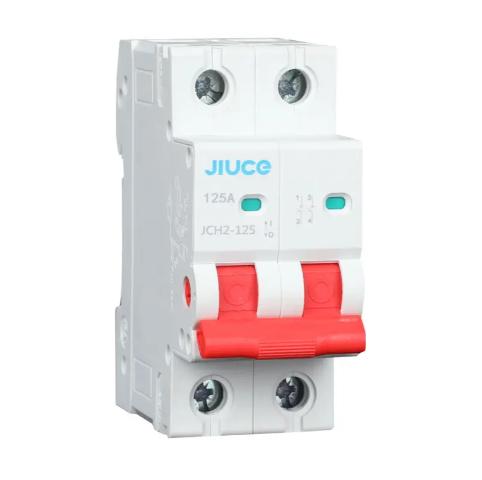

Image: https://www.jiuces.com/uploads/142.png

Image: https://www.jiuces.com/uploads/224.png

Overview of the JCH2-125 Main Switch Isolator

The JCH2-125 Main Switch Isolator is engineered to ensure safe and efficient operation in electrical circuits. It can handle a rated current up to 125A and is available in various configurations, including 1 Pole, 2 Pole, 3 Pole, and 4 Pole models. This flexibility allows it to be utilized across a range of applications, from residential settings to light commercial environments. Here are key specifications of JCH2 125 Main Switch Isolator 100A 125A.

1. Rated Current

What It Is: The rated current is the maximum amount of electrical current that the switch can handle safely and effectively without overheating or sustaining damage.

Details: The JCH2-125 is available in various current ratings including 40A, 63A, 80A, 100A, and 125A. This range allows it to be used in different applications depending on the current requirements of the circuit.

2. Rated Frequency

What It Is: The rated frequency indicates the alternating current (AC) frequency that the device is designed to work with.

Details: The JCH2-125 operates at a frequency of 50/60Hz. This is standard for most electrical systems worldwide, covering the typical AC frequencies used in different regions.

3. Rated Impulse Withstand Voltage

What It Is: This specification refers to the maximum voltage that the isolator can withstand for a short duration (usually a few milliseconds) without breaking down. It's a measure of the device's ability to handle voltage surges.

Details: The JCH2-125 has impulse withstand voltages of 4000V. This ensures that the device can tolerate high voltage spikes and transients without failure, protecting the connected circuit from potential damage.

4. Rated Short Circuit Withstand Current (lcw)

What It Is: This is the maximum current the switch can withstand for a short period (0.1 seconds) during a short circuit condition without sustaining damage.

Details: The JCH2-125 is rated at 12le, t=0.1s. This means it can handle short circuit conditions up to this value for 0.1 seconds, providing robust protection against overcurrent situations.

5. Rated Making and Breaking Capacity

What It Is: This specification indicates the maximum current the switch can make or break (switch on or off) under load conditions. It's crucial for ensuring the switch can handle operational switching without arcing or other issues.

Details: The JCH2-125 has a rated making as well as breaking capacity of 3le, 1.05Ue, COSO=0.65. This ensures reliable operation when switching circuits on and off, even under load.

6. Insulation Voltage (Ui)

What It Is: Insulation voltage is the maximum voltage that can be applied between live parts and the ground or between different live parts without causing insulation failure.

Details: The JCH2-125 has an insulation voltage rating of 690V, indicating ability to provide effective insulation in electrical circuits up to this voltage.

7. IP Rating

What It Is: The Ingress Protection (IP) rating measures the degree of protection the device offers against dust, water, and other environmental factors.

Details: The JCH2-125 has an IP20 rating, meaning it is protected against solid objects greater than 12.5mm in diameter and is not protected against water. It is good for environments where dust protection is necessary but water ingress is not a concern.

8. Current Limiting Class

What It Is: The current limiting class indicates the device's ability to limit the amount of current that flows through it during fault conditions, thereby reducing potential damage.

Details: The JCH2-125 falls into Current Limiting Class 3, which signifies its effectiveness in limiting the current and protecting the circuit.

Main Features

The Switch Isolator boasts several standout features that enhance its functionality and safety. Here's a quick look at what sets this isolator apart:

1. Versatile Current Ratings

The JCH2-125 series supports a range of current ratings from 40A to 125A. This versatility ensures that the isolator can accommodate various electrical demands, making it suitable for different types of installations.

2. Positive Contact Indication

One of the standout features of Isolator is its green/red contact indicator. This visual indicator provides a clear and reliable method for checking the status of the contacts. A green visible window signals a 4mm gap, confirming the switch's open or closed position.

3. Durable Construction and IP20 Rating

The isolator is designed with durability in mind, featuring an IP20 rating that ensures protection against dust and accidental contact with live parts. This robust construction makes it ideal for use in various environments.

4. DIN Rail Mounting

The Isolator is equipped with a 35mm DIN rail mount, simplifying the installation process. Its compatibility with pin type and fork type standard busbar adds to its installation flexibility.

5. Locking Capability

For added safety and control, Isolator can be locked in either the 'ON' and 'OFF' positions using devices lock or padlock. This feature is particularly useful in ensuring that the switch remains in the desired position during maintenance or operation.

6. Compliance with Standards

The Isolator is compliant with IEC 60947-3 and EN 60947-3 standards. These certifications guarantee that the isolator meets safety as well as performance standards, to ensure reliability as well as safety in various applications.

Applications and Benefits

The Switch Isolator is not just versatile but also offers numerous benefits across different settings. Here's how it stands out in practical applications:

Residential and Commercial Use

The Isolator's robust features and flexible current ratings make it a suitable choice for managing electrical circuits where reliable isolation and disconnection are required.

Enhanced Safety

With its positive contact indicator and locking capability, the JCH2-125 enhances safety by providing clear visual feedback and preventing accidental contact. These features contribute to a safer working environment and reduce the risk of electrical hazards.

Ease of Installation

The DIN rail mounting and compatibility with various busbar types streamline the installation process. This ease of installation helps reduce labor time and ensures a secure and reliable connection.

Reliability and Durability

The Isolator's durable construction and compliance standards ensure long-lasting performance and reliability. Ability to handle high impulse withstand voltage and short circuit current adds to its robustness and suitability for demanding applications.

Image: https://www.jiuces.com/uploads/313.png

Conclusion

This switch stands out as a reliable and versatile solution for managing electrical connections in residential as well as light commercial settings. Its range of current ratings, positive contact indication, durable construction, and compliance with the international standards make it a valuable component for ensuring safe and efficient electrical operations. Whether you require a switch disconnector for residential use or light applications, the JCH2-125 [https://www.jiuces.com/jch2-125-main-switch-isolator-100a-125a-product/] offers a dependable solution that meets your needs.
