The Significance of Type B RCDs in Modern Electrical Applications: Ensuring Safety in AC and DC Circuits

Type B Residual Current Devices (RCDs) [https://www.jiuces.com/jcrb2-100-type-b-rcds-product/] are special safety devices that help prevent electrical shocks and fires in systems that use direct current (DC) or have non-standard electrical waves. Unlike regular RCDs that only work with alternating current (AC), Type B RCDs can detect and stop faults in both AC and DC circuits. This makes them very important for new electrical applications like electric vehicle charging stations, solar panels, wind turbines, and other equipment that uses DC power or has irregular electrical waves.

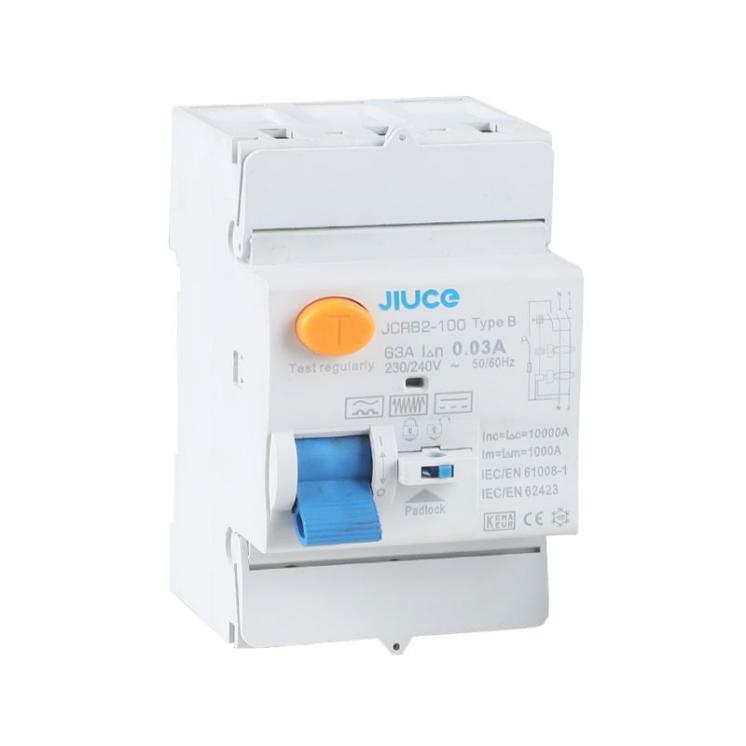

Image: https://www.jiuces.com/uploads/123.png

Type B RCDs provide better protection and safety in modern electrical systems where DC and non-standard waves are common. They are designed to automatically cut off the power supply when they sense an imbalance or fault, preventing potentially dangerous situations. As the demand for renewable energy systems and electric vehicles continues to grow, Type B RCDs have become essential for ensuring the safety of these new technologies. They help prevent electric shocks, fires, and damage to sensitive equipment by quickly detecting and stopping any faults in the electrical system. Overall, Type B RCDs are an important advancement in electrical safety, helping to keep people and property safe in a world with increasing use of DC power and non-standard electrical waves.

Image: https://www.jiuces.com/uploads/213.png

Features of JCRB2-100 Type B RCDs [https://www.jiuces.com/jcrb2-100-type-b-rcds-product/]

The JCRB2-100 Type B RCDs are advanced electrical safety devices designed to provide comprehensive protection against various types of faults in modern electrical systems. Their key features include:

Tripping Sensitivity: 30mA

The tripping sensitivity of 30mA on the JCRB2-100 Type B RCDs means that the device will automatically shut off the power supply if it detects an electrical leakage current of 30 milliamps (mA) or higher. This level of sensitivity is crucial for ensuring a high degree of protection against potential electric shocks or fires caused by ground faults or leakage currents. A leakage current of 30mA or more can be extremely dangerous, potentially causing severe injury or even death if left unchecked. By tripping at this low level of leakage, the JCRB2-100 helps to prevent such hazardous situations from occurring, quickly cutting off the power before the fault can cause harm.

2-Pole / Single Phase

The JCRB2-100 Type B RCDs are designed as 2-pole devices, which means they are intended for use in single-phase electrical systems. Single-phase systems are commonly found in residential homes, small offices, and light commercial buildings. In these settings, single-phase power is typically used for powering lights, appliances, and other relatively small electrical loads. The 2-pole configuration of the JCRB2-100 allows it to monitor and protect both the live and neutral conductors in a single-phase circuit, ensuring comprehensive protection against faults that could occur on either line. This makes the device well-suited for safeguarding single-phase installations, which are prevalent in many everyday environments.

Current Rating: 63A

The JCRB2-100 Type B RCDs have a current rating of 63 amps (A). This rating indicates the maximum amount of electrical current the device can safely handle under normal operating conditions without tripping or becoming overloaded. In other words, the JCRB2-100 can be used to protect electrical circuits with loads up to 63 amps. This current rating makes the device suitable for a wide range of residential and light commercial applications, where electrical loads typically fall within this range. However, it's important to note that even if the current is within the 63A rating, the JCRB2-100 will still trip if it detects a leakage current of 30mA or more, as this is its tripping sensitivity level for fault protection.

Voltage Rating: 230V AC

The JCRB2-100 Type B RCDs have a voltage rating of 230V AC. This means they are designed to be used in electrical systems that operate at a nominal voltage of 230 volts alternating current (AC). This voltage rating is common in many residential and light commercial applications, making the JCRB2-100 suitable for use in these environments. It's important to note that the device should not be used in electrical systems with voltages higher than its rated voltage, as this could potentially damage the device or compromise its ability to function properly. By adhering to the 230V AC voltage rating, users can ensure that the JCRB2-100 will operate safely and effectively within its intended voltage range.

Short-Circuit Current Capacity: 10kA

The short-circuit current capacity of the JCRB2-100 Type B RCDs is 10 kiloamps (kA). This rating refers to the maximum amount of short-circuit current the device can withstand before potentially sustaining damage or failing. Short-circuit currents can occur in electrical systems due to faults or abnormal conditions, and they can be extremely high and potentially destructive. By having a short-circuit current capacity of 10kA, the JCRB2-100 is designed to remain operational and provide protection even in the event of a significant short-circuit fault, up to 10,000 amps. This feature ensures that the device can effectively safeguard the electrical system and its components in the event of such high-current faults.

IP20 Protection Rating

The JCRB2-100 Type B RCDs have an IP20 protection rating, which stands for "Ingress Protection" rating 20. This rating indicates that the device is protected against solid objects larger than 12.5 millimeters in size, such as fingers or tools. However, it does not provide protection against water or other liquids. As a result, the JCRB2-100 is not suitable for outdoor use or installation in locations where it may be exposed to moisture or liquids without additional protection. To use the device in outdoor or wet environments, it must be installed inside a suitable enclosure that provides the necessary protection against water, dust, and other environmental factors.

Compliance with IEC/EN 62423 and IEC/EN 61008-1 Standards

The JCRB2-100 Type B RCDs are designed and manufactured in accordance with two important international standards: IEC/EN 62423 and IEC/EN 61008-1. These standards define the requirements and testing criteria for Residual Current Devices (RCDs) used in low-voltage installations. Compliance with these standards ensures that the JCRB2-100 meets strict safety, performance, and quality guidelines, guaranteeing a consistent level of protection and reliability. By adhering to these widely recognized standards, users can have confidence in the device's ability to function as intended and provide the necessary safeguards against electrical faults and hazards.

Conclusion

The JCRB2-100 Type B RCDs [https://www.jiuces.com/jcrb2-100-type-b-rcds-product/] are advanced safety devices designed to provide comprehensive protection in modern electrical systems. With features like a highly sensitive 30mA tripping threshold, suitability for single-phase applications, a 63A current rating, and a 230V AC voltage rating, they offer reliable safeguards against electrical faults. Additionally, their 10kA short-circuit current capacity, IP20 protection rating (requiring a suitable enclosure for outdoor use), and compliance with IEC/EN standards ensure robust performance and adherence to industry regulations. Overall, the JCRB2-100 Type B RCDs offer enhanced safety and reliability, making them an essential component in residential, commercial, and industrial electrical installations.

FAQ

1.What is a Type B RCD?

Type B RCDs must not be confused with Type B MCBs or RCBOs that show up in many web searches.

Type B RCDs are totally different, however, unfortunately the same letter has been used which can be misleading. There is the Type B that is the thermal characteristic in an MCB/RCBO and Type B defining the magnetic characteristics in an RCCB /RCD. This means that so you will find products such as RCBOs with two characteristics, namely the magnetic element of the RCBO and the thermal element (this could be a Type AC or A magnetic and a Type B or C thermal RCBO).

2.How do Type B RCDs work?

Type B RCDs are usually designed with two residual current detection systems. The first uses 'fluxgate' technology to enable the RCD to detect smooth DC current. The second uses a technology similar to Type AC and Type A RCDs, which is voltage independent.

Image: https://www.jiuces.com/uploads/39.png
