What's the difference between SMD and COB LED Display?

In recent years, LED display screens have become an indispensable part of various industries, with technological advancements evolving at an astonishing pace. Among the many innovations, SMD (Surface-Mounted Device) and COB LED display [https://www.sryled.com/cob-led-display-8k-resolution-for-monitor-room-product/] (Chip on Board) technologies stand out for their significant impact. Let's delve into the technical aspects and differences between these two packaging technologies to appreciate their unique advantages and applications.

COB Technology:

COB (Chip on Board) is a packaging technology where LED chips are directly soldered onto a PCB (Printed Circuit Board). This approach optimizes heat dissipation and ensures a close integration of chips with circuit boards, enhancing performance and durability.

Technical Principles

COB packaging involves attaching bare LED chips to the PCB using conductive or non-conductive adhesives, followed by wire bonding for electrical connections. To protect the chips and bonding wires from contamination or mechanical damage, they are encapsulated with resin during the final stages of the process.

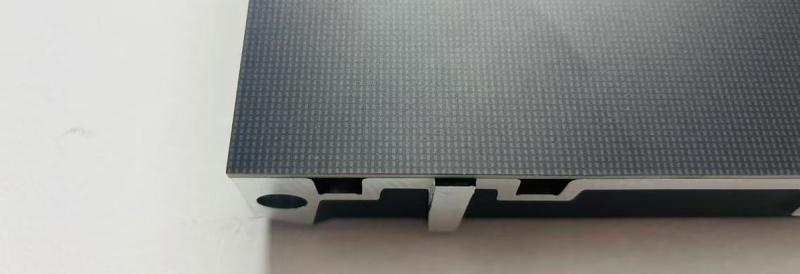

Image: https://ecdn6.globalso.com/upload/p/549/image_product/2024-11/cob-led-display.jpg

Key Features

*
Compact and Integrated Design:By combining the packaging with the PCB, COB minimizes the size of components, optimizes circuit complexity, and enhances system stability.

*
Superior Durability:The direct chip-to-PCB soldering provides excellent vibration and impact resistance, making COB displays highly reliable even in harsh environments like extreme heat and humidity.

*
Efficient Heat Dissipation:Thermal conductive adhesives improve heat management, reducing stress on the chips and extending their lifespan.

*
Cost-Effectiveness in Production:Without the need for pins, COB simplifies the manufacturing process, reduces preparation costs, and supports automation for higher production efficiency.

Challenges

*
Difficult Maintenance:Chips soldered directly onto the PCB are not individually replaceable, necessitating the replacement of the entire PCB in case of failure, increasing maintenance complexity.

*
Reliability Issues During Production:The adhesive encapsulation can potentially damage delicate components during assembly, affecting production yield.

*
High Environmental Standards:COB production requires a contamination-free environment, as factors like dust or static electricity can significantly impact product quality.

Despite these challenges, COB technology offers cost-effective, high-performance solutions and holds immense potential in smart electronic applications. As advancements in production techniques continue, COB is set to play an increasingly important role.

SMD Technology:

SMD (Surface-Mounted Device) is another widely adopted packaging technology that directly mounts electronic components onto the surface of a PCB. It is particularly valued in electronics manufacturing for its versatility and efficiency.

Main Features

*
Miniaturized Components:SMD components are compact and lightweight, enabling the design of smaller, lighter, and more portable electronic devices.

*
Excellent High-Frequency Performance:The short connection paths in SMD designs reduce inductance and resistance, enhancing performance at high frequencies.

*
Supports Automation:SMD components are compatible with automated assembly processes, improving production efficiency and consistency.

*
Thermal and Maintenance Benefits:Direct PCB contact improves heat dissipation, while the surface-mounting method facilitates easier repair and replacement of components.

Image: https://ecdn6.globalso.com/upload/p/549/image_product/2024-11/smd-led-display.jpg

Technological Advancements

SMD packaging has evolved into a mainstream technology in electronics, continuously adapting to market demands for higher performance, smaller sizes, and lower costs.

COB vs. SMD: Key Differences

ASPECT
COB LED DISPLAY
SMD LED DISPLAY

Visual Experience
Offers a delicate and uniform surface light source, delivering brighter colors and finer details, ideal for close-up viewing.
Relies on point light sources, which may appear less uniform but are suitable for general-purpose displays.

Durability
Superior protection against external factors due to encapsulation, with excellent waterproof and dustproof capabilities.
Easier on-site repair but less robust, as external elements can impact the display more readily.

Energy Efficiency
Higher efficiency with lower power consumption, thanks to the unobstructed flip-chip process.
Slightly higher power consumption compared to COB displays at the same brightness level.

Cost and Scalability
Theoretical cost benefits, but current production challenges and low yield make it relatively expensive.
Lower production costs due to mature manufacturing processes, making it widely used in the market.

Maintenance
Requires replacement of the entire PCB for repairs, increasing maintenance costs.
Individual components are replaceable, simplifying repair and reducing downtime.

Image: https://ecdn6.globalso.com/upload/p/549/image_product/2024-11/cob-led-screen-1.jpg

Future Trends

As the demand for HD LED displays continues to rise, both COB and SMD technologies are finding their niches. Micro LED displays, requiring higher pixel density, increasingly rely on COB's integration capabilities. Meanwhile, SMD remains dominant in applications that prioritize cost efficiency and ease of maintenance.

With ongoing advancements in technology and production methods, the gap in cost and yield between COB and SMD is expected to narrow. Together, these technologies are driving the LED display industry toward a future of higher resolution, smarter functionality, and greater energy efficiency.

In conclusion, whether you choose COB or SMD depends on the specific application and priorities-be it visual fidelity, durability, cost, or scalability. As these technologies mature, they will continue to complement each other, shaping the future of LED displays in a dynamic and ever-evolving market.
