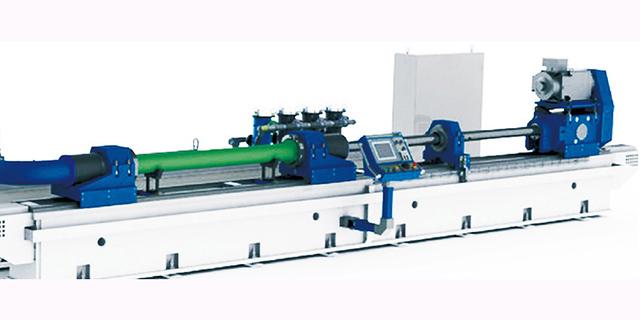

TGK25/TGK35 CNC deep hole boring and scraping machine
Machining accuracy:
- Workpiece boring surface roughness less than or equal to Ra3.2m
- Workpiece rolling surface roughness less than or equal to Ra0.4m
- Workpiece machining cylindricity less than or equal to 0.027/500mm
- Workpiece machining roundness less than or equal to 0.02/100mm
Main technical parameters TGK35 TGK25
Working range
Boring diameter range----40250mm------40350mm
Maximum boring depth----1-9m------------1-9m
Workpiece clamping range------60300m----60450mm
Spindle part
Spindle center height------350mm----------450mm
Boring bar box part
Spindle front end taper hole------100 1:20-------100 1:20
Speed range (stepless)----301000r/min----301000r/min
Feeding part
Speed range (stepless)----5-1000mm/min----301000r/min
Panel rapid moving speed----3m/min---------3m/min
Motor part
Boring box motor power----60kW-----------60kW
Hydraulic pump motor power-----1.5kW-----------1.5kW
Tightening frame rapid moving motor---4 kW------------4 kW
Feeding motor power------11kW-----------11kW
Cooling pump motor power-----7.5kWx2----------7.5kWx3
Other parts
Cooling system rated pressure-----2.5 MPa----------2.5 MPa
Cooling system flow rate----200, 400L/min----200, 400, 600L/min
Rated working pressure of hydraulic system----6.3MPa--------6.3MPa
Maximum tightening force of oiler----60kN------------60kN
Magnetic separator flow rate----800L/min--------800L/min
Pressure bag filter flow rate----800L/min--------800L/min
Filter accuracy----50m-------------50m
