KAMAT presents tank washing head with new functions

Active drive and remote controllability of the speed and direction of rotation

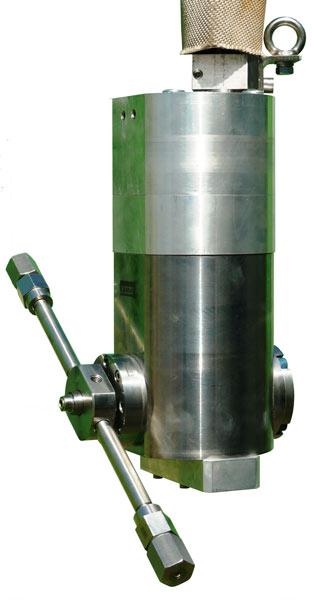

Tank washing heads, the vertical and horizontal rotor arms of which direct a high-pressure water jet onto the inner walls and thereby remove soilings, are proving their worth when cleaning tanks, containers and relatively large pipes. Crucial aspects of this principle that enjoys intensive use in, for example, chemical and pretrochemical applications have been further developed by KAMAT who is now presenting the result to the market: the TWK 200/ 1500 Air. The main differences of the TWK 200 over the existing commercially available tank washing heads are the active pneumatic drive and the controllability of the speed and direction of rotation of the rotor head in two axes via remote control. In this way, the cleaning system can be adapted very easily to the specific task on hand or, to put it more precisely, to the existing degree of soiling.

Reducing energy and time
Severely soiled areas can be actively approached and cleaned in a targeted manner which enables significant savings in time and energy. Since the drive is pneumatic and not powered by water pressure, the full hydraulic power is available for the actual function – the cleaning action. In practice, this innovation bears the advantage that also and especially complex cleaning tasks can be considerably speeded up. There is no need to remove the tank washing head from the tank for re-adjustment if the cleaning result is not to satisfaction. Instead, the operator is in a position to increase, for example, the speed, to change the direction of rotation or to tackle areas with stubbornly adhering dirt by using a convenient radio control.

On the way to fully automated tank cleaning
Tank cleaning experts will appreciate the advantages of the TWK 200/ 1500 Air which, however, KAMAT just sees as an intermediate step towards the actual goal of development. Because the externally controllable tank washing head creates the prerequisite for the fully automated, requirements-oriented cleaning of tanks and containers. In the next step the remote control is intended to be extended with a visualisation system (for example with a scanning process prior to cleaning) that will communicate with the control and allow for fully automated tank cleaning and targeted and sustained removal of all soilings within the shortest of time. This goal will be pursued by KAMAT within the next few months; in this regard, the new TWK 200/ 1500 Air will be a central component of the further development.

About KAMAT:
Since more than 40 years, KAMAT GmbH with its head office in Witten, Germany, is worldwide leading system-supplier for high-pressure technology. The product range includes high-pressure pumps and pump systems, hydraulic valves, rotating joints as well as accessories for the pressure transport of different liquids in process technology, water hydraulics and high-pressure water jet technology for working pressures up to 3500 bar and power inputs up to 800 kW per pump. Besides the standard products of pumps and systems, KAMAT designs and supplies customized units and systems, especially based on the requirements of the respective application. With a team of highly qualified developers, the innovation leader continuously further develops the high-pressure technology and sets worldwide new standards. Main customers are service contractors in all industrial sectors but as well direct customers in the chemical, petro-chemical and steel industry, shipbuilding, process engineering, energy as well as surface and underground mining. KAMAT is worldwide market-leader for special pumps for underground coal mining.

The company has been founded in 1974 as the European branch of a big American pump manufacturer and sold in 1979 to the Managing Director at that time, Dipl.-Ing. Karl Sprakel. Today KAMAT, managed by Dipl.-Ing. Jan Sprakel and Dr.-Ing. Andreas Wahl, employs more than 100 people. Partners in more than fifty countries on all continents ensure distinguished customer service all over the world. More than 80 % of the turnover is achieved abroad. More information: www.kamat.de
